Honda BF15D - Timing Belt

BF15D-BF20D

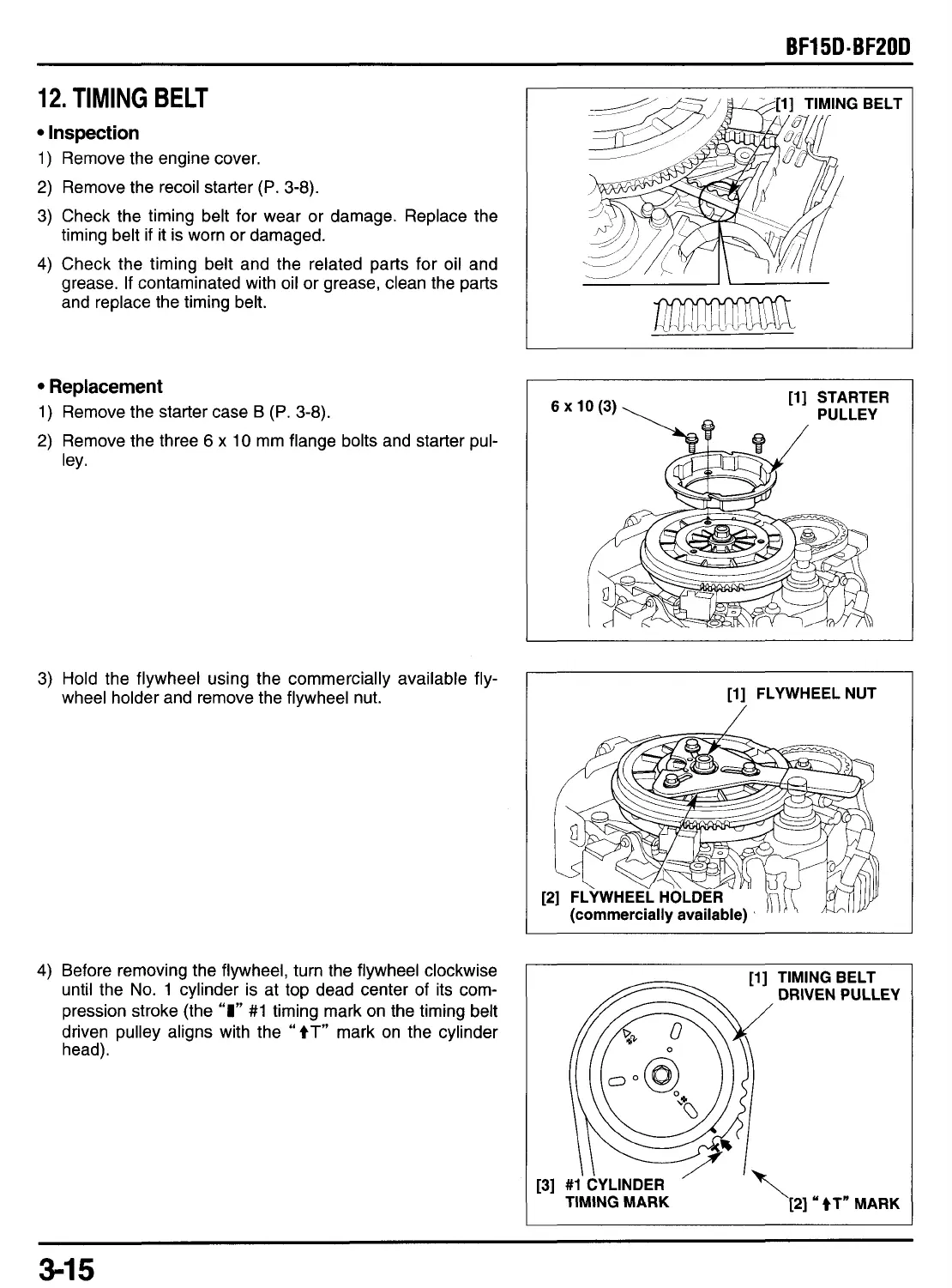

12. TIMING BELT
Inspection
1) Remove the engine cover.
2) Remove the recoil starter (P. 3-8).
3) Check the timing belt for wear or damage. Replace the
timing belt if it is worn or damaged.
4) Check the timing belt and the related parts for oil and
grease. If contaminated with oil or grease, clean the parts
and replace the timing belt.
3) Hold the flywheel using the commercially available fly-
wheel holder and remove the flywheel nut.
Replacement
1) Remove the starter case B (P. 3-8).
2) Remove the three 6 x 10 mm flange bolts and starter pul-
ley.
G BELT
6x
[l] STARTER
I ~~ [l] FLYWHEEL NUT
4) Before removing the flywheel, turn the fl) vheel clockwise
until the
No. 1 cylinder is at top dead center of its com-
pression stroke (the
“I” #1 timing mark on the timing belt
driven pulley aligns with the
“ tT” mark on the cylinder
head).
’ ’\ [2] “tT” MARK
[3] #1 CYLINDER
TlMlNG MARK
\I
3-1 5
