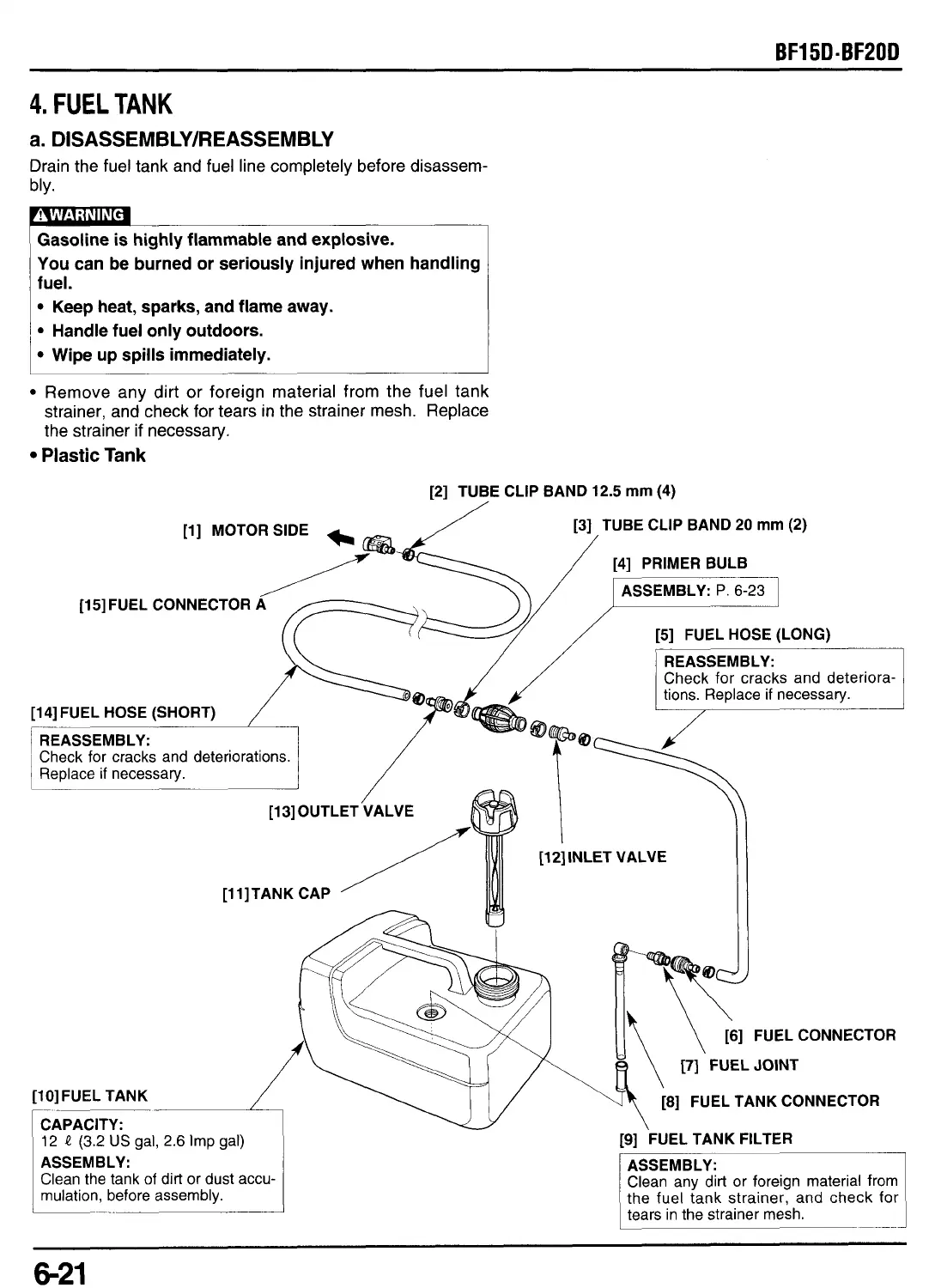

BF15D-BF20D
4.
FUEL
TANK
a.
DISASSEMBLY/REASSEMBLY
Drain the fuel tank and fuel line completely before disassem-
bly.
flammable and explosive.
You can be burned or seriously injured when handling
fuel.
Keep heat, sparks, and flame away.
Handle fuel only outdoors.
~
Wipe up spills immediately.
Remove any dirt or foreign material from the fuel tank
strainer, and check for tears in the strainer mesh. Replace
the strainer if necessary.
Plastic
Tank
[2] TUBE CLIP BAND 12.5
mm
(4)
/
[3] TUBE CLIP BAND 20
mm
(2)
[l]
MOTOR SIDE
[4] PRIMER BULB
ASSEMBLY:
P.
6-23
[5] FUEL HOSE (LONG)
[15] FUEL CONNECTOR A
[14] FUEL HOSE (SHORT)
‘Check for cracks and dete
1
Replace
if
necessary.
REASSEMBLY:
[12]lNLET VALVE
[6] FUEL CONNECTOR
[7] FUEL JOINT
[lO]FUEL TANK
[8] FUEL TANK CONNECTOR
r-
-
CAPACITY:
12
J?
(3.2
US
gal, 2.6 Imp gal)
ASSEMBLY:
Clean the tank of dirt or dust accu-
mulation, before assembly.
\
[9] FUEL TANK FILTER
ASSEMBLY:
Clean any dirt or foreign material from
the fuel tank strainer, and check for
L-..
I
1
tears in the strainer mesh.
I
6-21
