BFlSD-BFPOD
8)

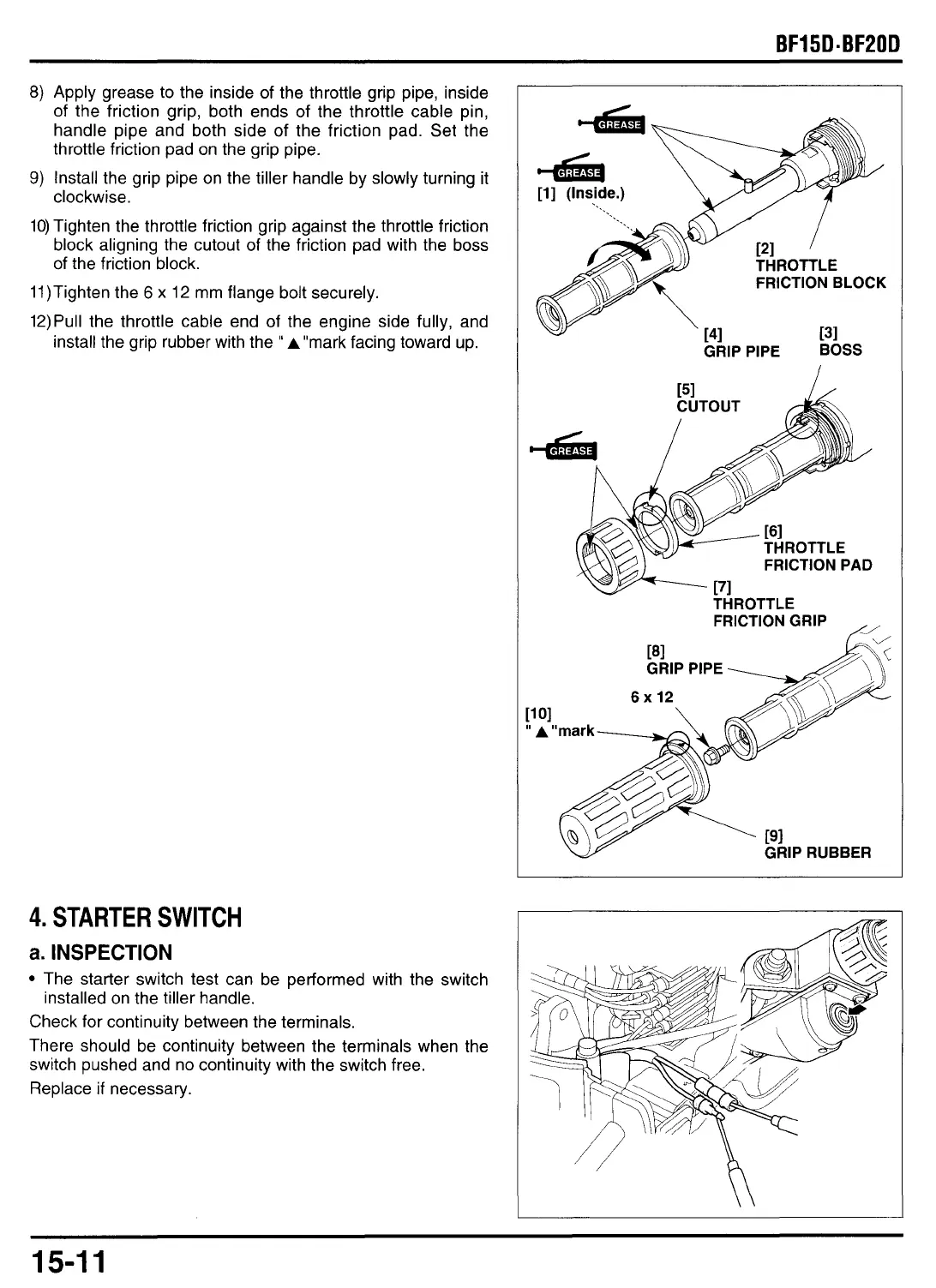

Apply grease
to
the inside of the throttle grip pipe, inside
of the friction grip, both ends of the throttle cable pin,
handle pipe and both side of the friction pad. Set the
throttle friction pad on the grip pipe.
9) Install the grip pipe on the tiller handle by slowly turning it
clockwise.
10) Tighten the throttle friction grip against the throttle friction
block aligning the cutout of the friction pad with the boss
of the friction block.
11)Tighten the
6
x
12 mm flange bolt securely.
12)Pull the throttle cable end of the engine side fully, and
install the grip rubber with the
"
A
"mark facing toward up.
4.
STARTER
SWITCH
a.
INSPECTION
The starter switch test can be performed with the switch
Check for continuity between the terminals.
There should be continuity between the terminals when the
switch pushed and no continuity with the switch free.
Replace if necessary.
installed on the tiller handle.
&
[l]
(Inside.)
FRICTION BLOCK
131
GRIP PIPE
BOSS
FRICTION
PAD
THROTTLE
FRICTION
GRIP
,J
GRIP
I8]
PIPE
4
\\
15-1
1
