Honda BF15D - 16. ELECTRICAL EQUIPMENT; Starter Motor and Cable Service

16. ELECTRICAL EQUIPMENT
BF15DSBF20D
1. STARTER MOTOR 5. IGNITION CONTROL MODULE
2. STARTER CABLE (Type with 12A charge coil)
3. CHARGE WIRE (Type with 6A charge coil)
4. NEUTRAL SWITCH/INDICATOR
6. CONNECTOR BRACKET A
7. IGNITION COIL
8. REG U LATOR/RECTI FI ER

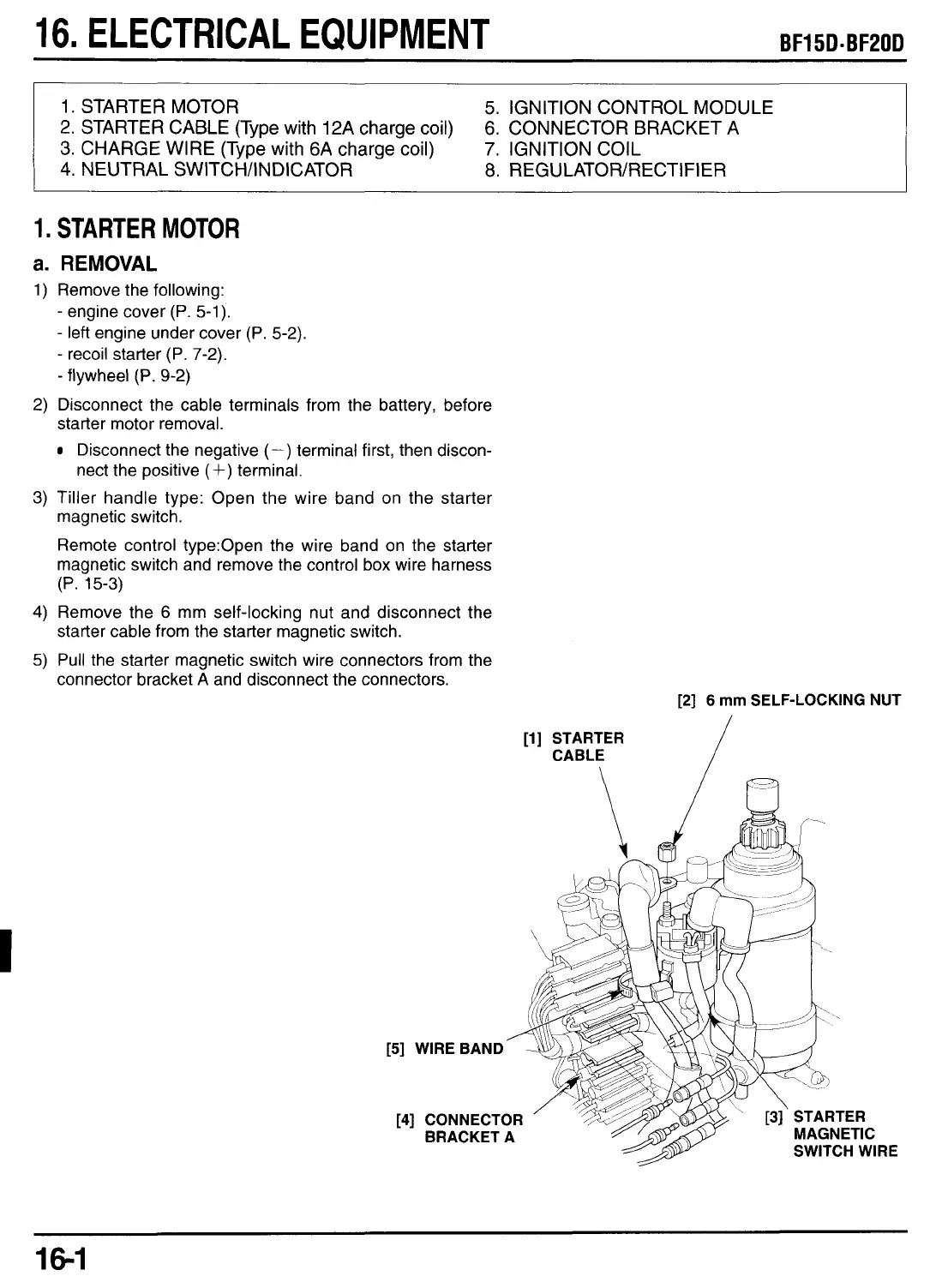

STARTER MOTOR
REMOVAL
Remove the following:
- engine cover (P. 5-1).
- left engine under cover (P. 5-2).
- recoil starter (P. 7-2).
- flywheel (P. 9-2)
Disconnect the cable terminals from the battery, before
starter motor removal.
Disconnect the negative (-) terminal first, then discon-
nect the positive
(+) terminal.
Tiller handle type: Open the wire band on the starter
magnetic switch.
Remote control type:Open the wire band on the starter
magnetic switch and remove the control
box wire harness
Remove the 6 mm self-locking nut and disconnect the
starter cable from the starter magnetic switch.
Pull the starter magnetic switch wire connectors from the
connector bracket
A and disconnect the connectors.
(P.
15-3)
[2] 6 mm SELF-LOCKING NUT
[l] STARTER
CABLE
\
[5] WIREBAND
[4] CONNECTOR
BRACKET A MAGNETIC
SWITCH WIRE
16-1
