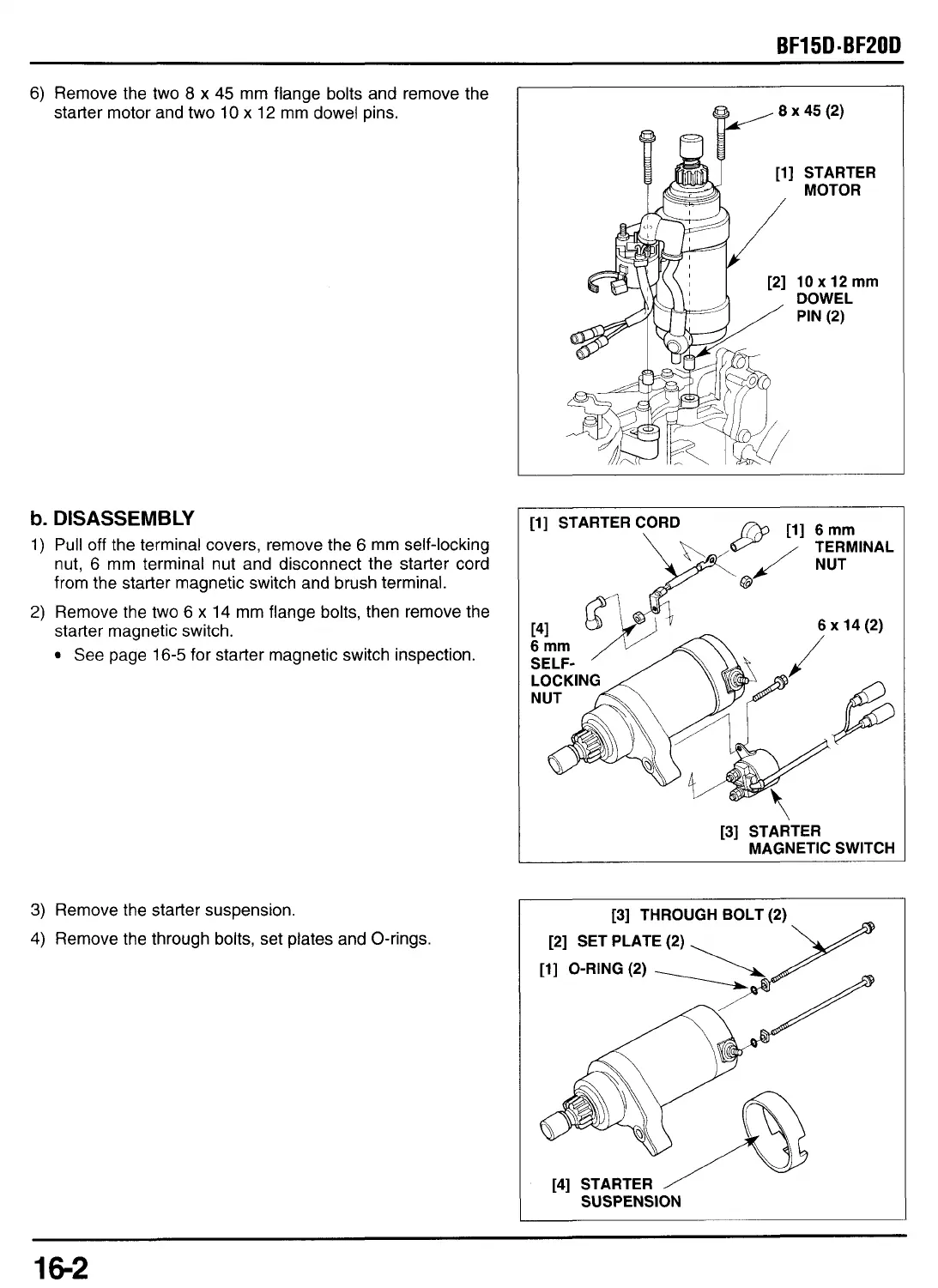

6)
Remove the two
8
x
45
mm flange bolts and remove the
starter motor and two
10
x
12
mm dowel pins.
b.
DISASSEMBLY
1)
Pull off the terminal covers, remove the
6
mm self-locking
nut,
6
mm terminal nut and disconnect the starter cord
from the starter magnetic switch and brush terminal.
2)
Remove the two
6
x
14
mm flange bolts, then remove the
starter magnetic switch.
See
page
16-5
for starter magnetic switch inspection.
3)
Remove the starter suspension.
4)
Remove the through bolts, set plates and O-rings.
[l] STARTER
[2] lOx12mm
[l] STARTER CORD
fir
[3] STARTER
MAGNETIC SWITCH
[3]
THROUGH BOLT (2)
[2] SET PLATE (2)
SUSPENSION
16=2
