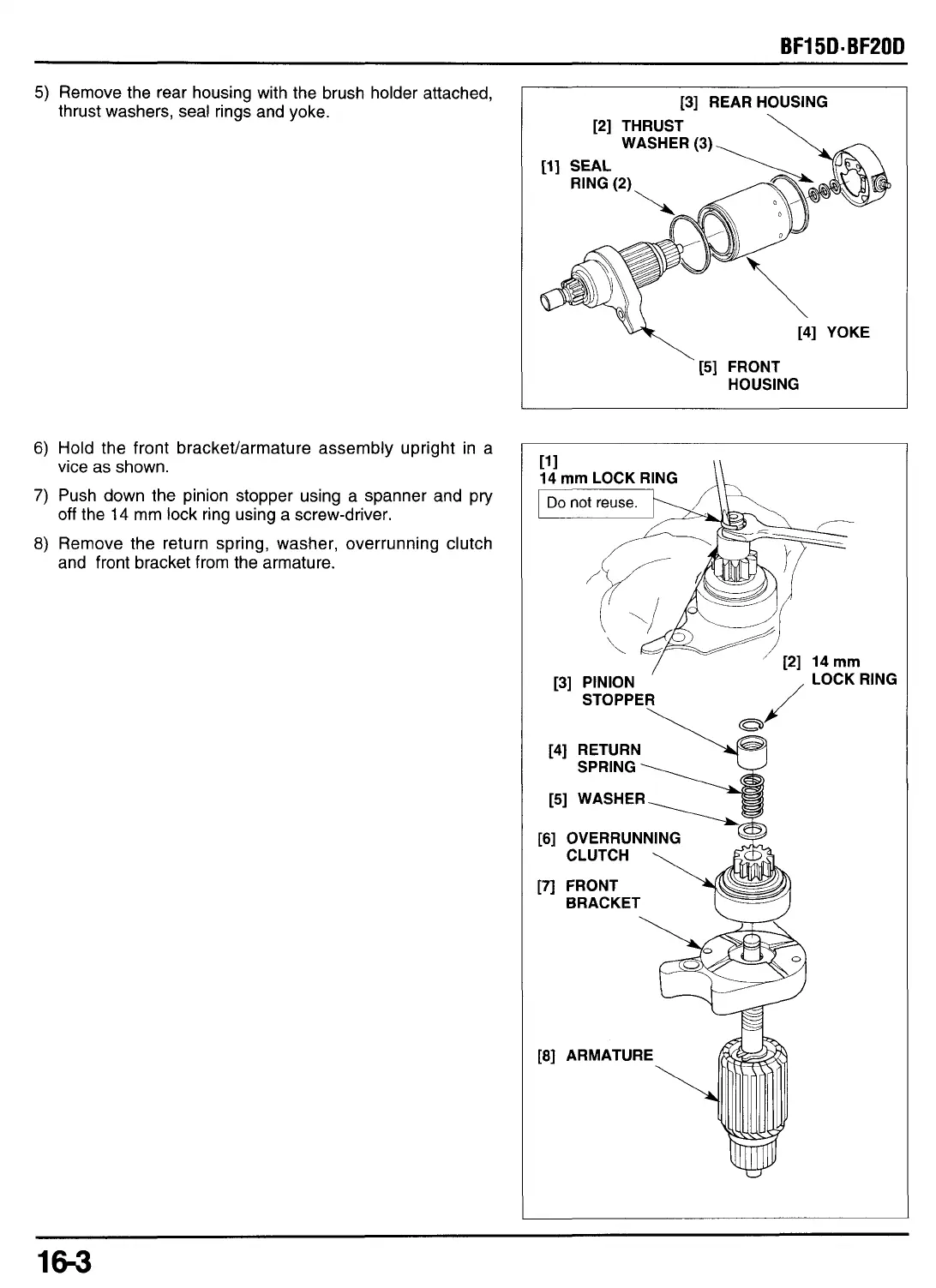

5) Remove the rear housing with the brush holder attached,
thrust washers, seal rings and yoke.
6) Hold the front bracket/armature assembly upright in a
7) Push down the pinion stopper using a spanner and pry
8) Remove the return spring, washer, overrunning clutch
vice as shown.
off the
14 mm lock ring using a screw-driver.
and front bracket from the armature.
[3] REAR HOUSING
[2] THRUST
[l] SEAL
[4] YOKE
[5] FRONT
HOUSING
STOPPER
-_
BRACKET
