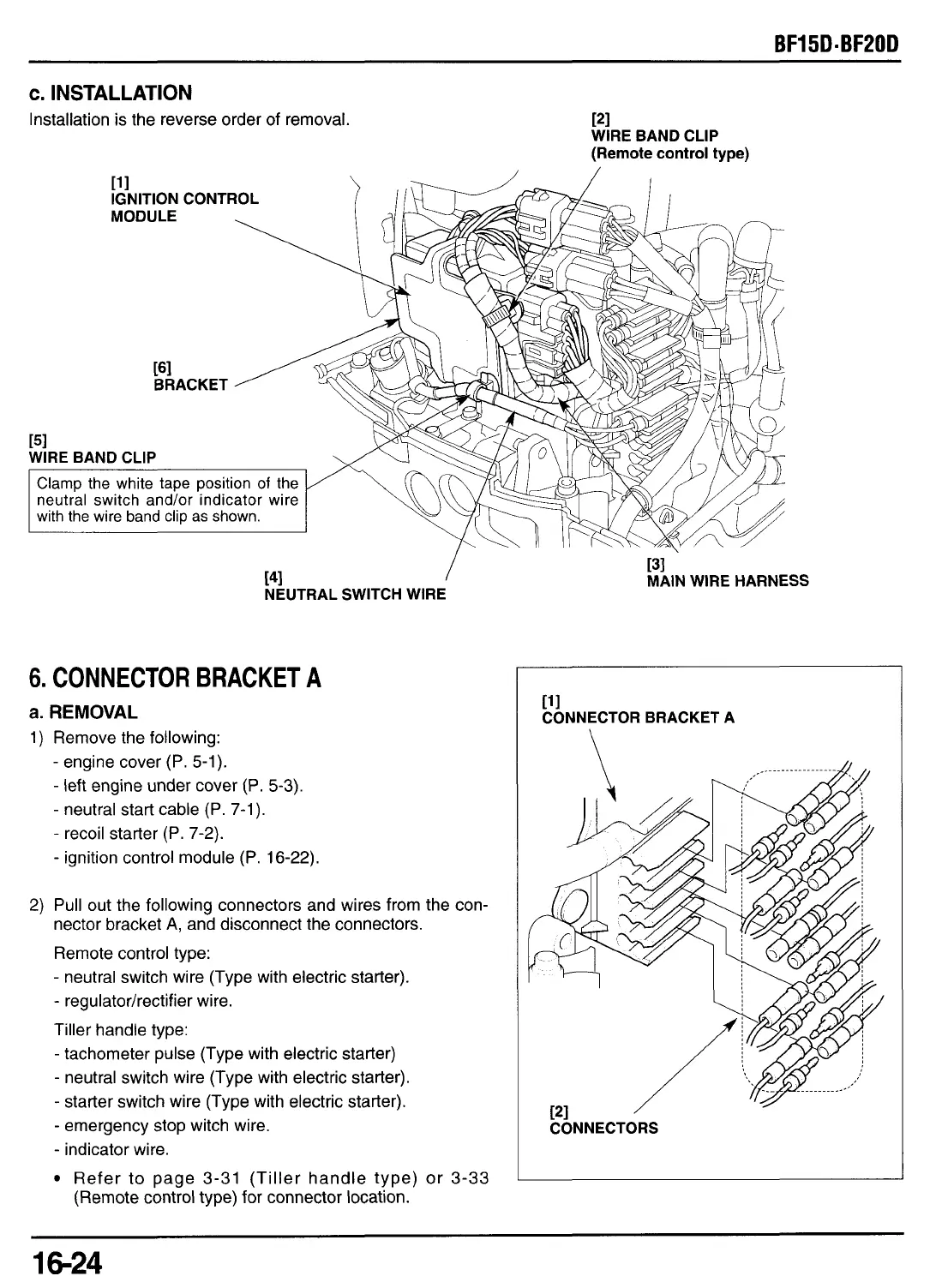

Honda BF15D - Connector Bracket a

c. INSTALLATION
Installation is the reverse order of removal.
PI
WIRE BAND CLIP
(Remote control type)
t41 /
NEUTRAL SWITCH WIRE
I
131
MAIN WIRE HARNESS
6. CONNECTOR BRACKET A
a. REMOVAL
1) Remove the following:
- engine cover (P. 5-1).
- left engine under cover (P. 5-3).
- neutral start cable (P. 7-1).
- recoil starter (P. 7-2).
- ignition control module (P. 16-22).
2) Pull out the following connectors and wires from the con-
nector bracket
A, and disconnect the connectors.
Remote control type:
- neutral switch wire (Type with electric starter).
- regulatorhectifier wire.
Tiller handle type:
- tachometer pulse (Type with electric starter)
- neutral switch wire (Type with electric starter).
- starter switch wire (Type with electric starter).
- emergency stop witch wire.
- indicator wire.
Refer to page 3-31 (Tiller handle type) or 3-33
(Remote control type) for connector location.
PI
CONNECTOR BRACKET A
\
