BF15DmBF20D
3)

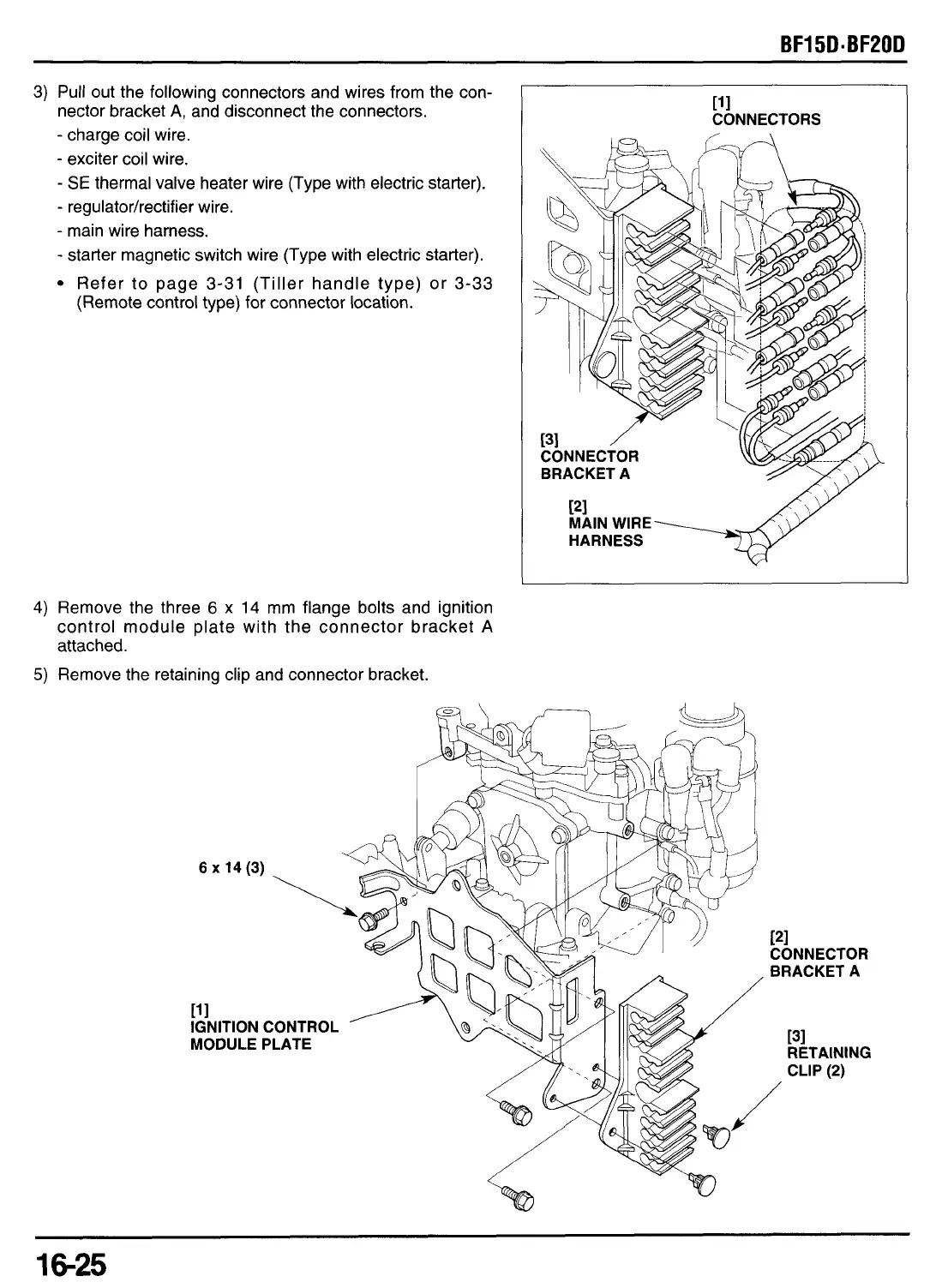

Pull out the following connectors and wires from the con-
nector bracket
A,
and disconnect the connectors.
-
charge coil wire.
-
exciter coil wire.
-
SE
thermal valve heater wire (Type with electric starter).
-
regulatorhectifier wire.
-
main wire harness.
-
starter magnetic switch wire (Type with electric starter).
Refer to page
3-31
(Tiller handle type) or
3-33
(Remote control type) for connector location.
4)
Remove the three 6
x
14
mm flange bolts and ignition
control module plate with the connector bracket
A
attached.
5)
Remove the retaining clip and connector bracket.
11
1
CONNECTORS
121
MAIN WIRE
HARNESS
6
x
14
(3)
CONNECTOR
[11
IGNITION CONTROL
MODULE PLATE
RETAINING
16-25
