BF15DmBF20D
9)

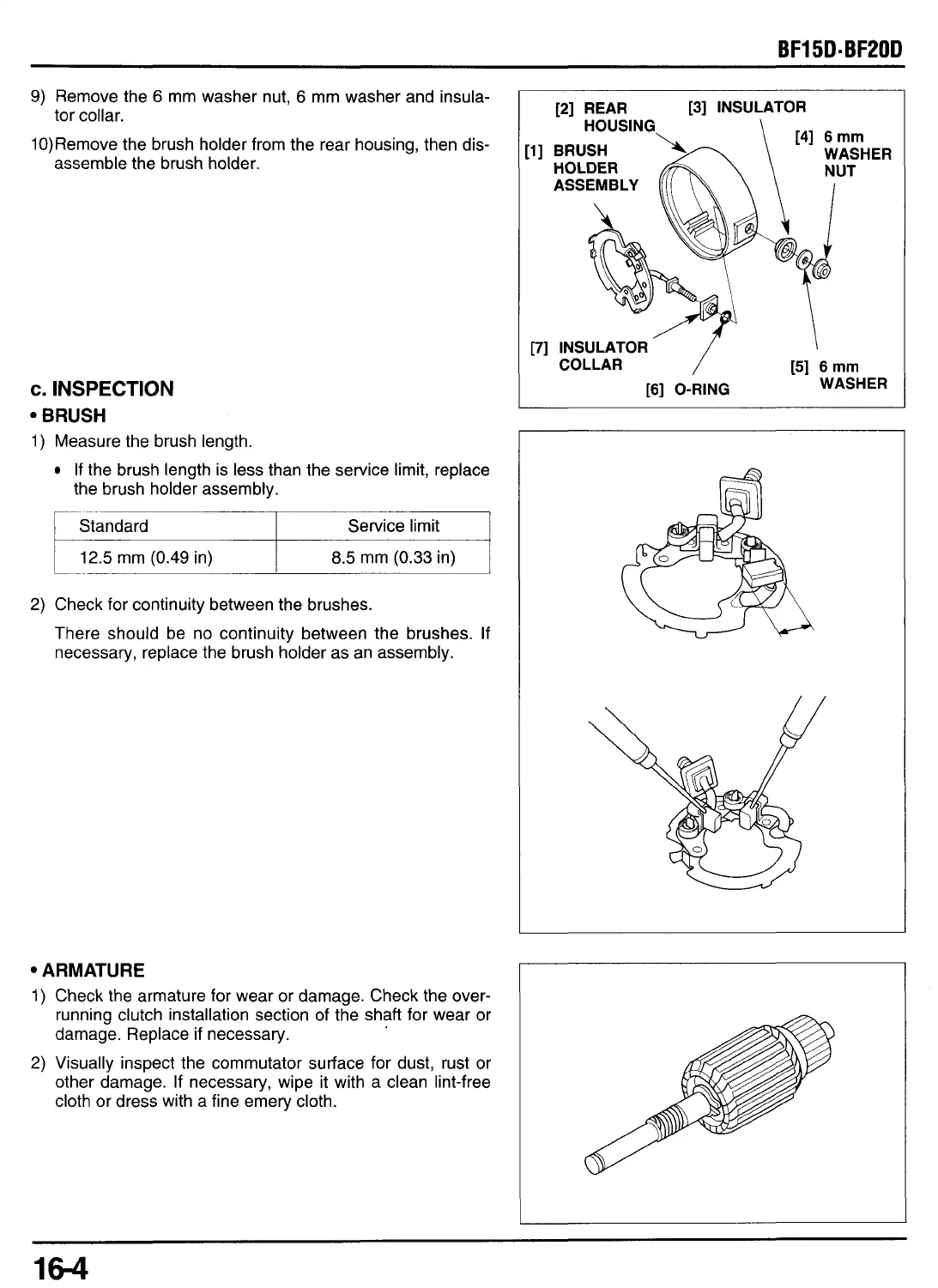

Remove the
6
mm washer nut,
6
mm washer and insula-
10)Remove the brush holder from the rear housing, then dis-
tor collar.
assemble the brush holder.
c.
INSPECTION
BRUSH
1)
Measure the brush length.
If
the brush length is less than the service limit, replace
the brush holder assembly.
1
Standard
I
Service limit
I
~ 12.5 mm
(0.49
in)
I
8.5
mm
(0.33
in) ~
2) Check for continuity between the brushes.
There should be no continuity between the brushes.
If
necessary, replace the brush holder as an assembly.
ARMATURE
1)
Check the armature for wear or damage. Check the over-
running clutch installation section of the shaft for wear or
damage. Replace if necessary.
2)
Visually inspect the commutator surface for dust, rust or
other damage. If necessary, wipe it with a clean lint-free
cloth or dress with a fine emery cloth.
[2]
REAR
[3]
INSULATOR
ER
,
\
COLLAR
[5]
6
mm
WASHER
INSULATOR’
/
[6]
O-RING
16-4
