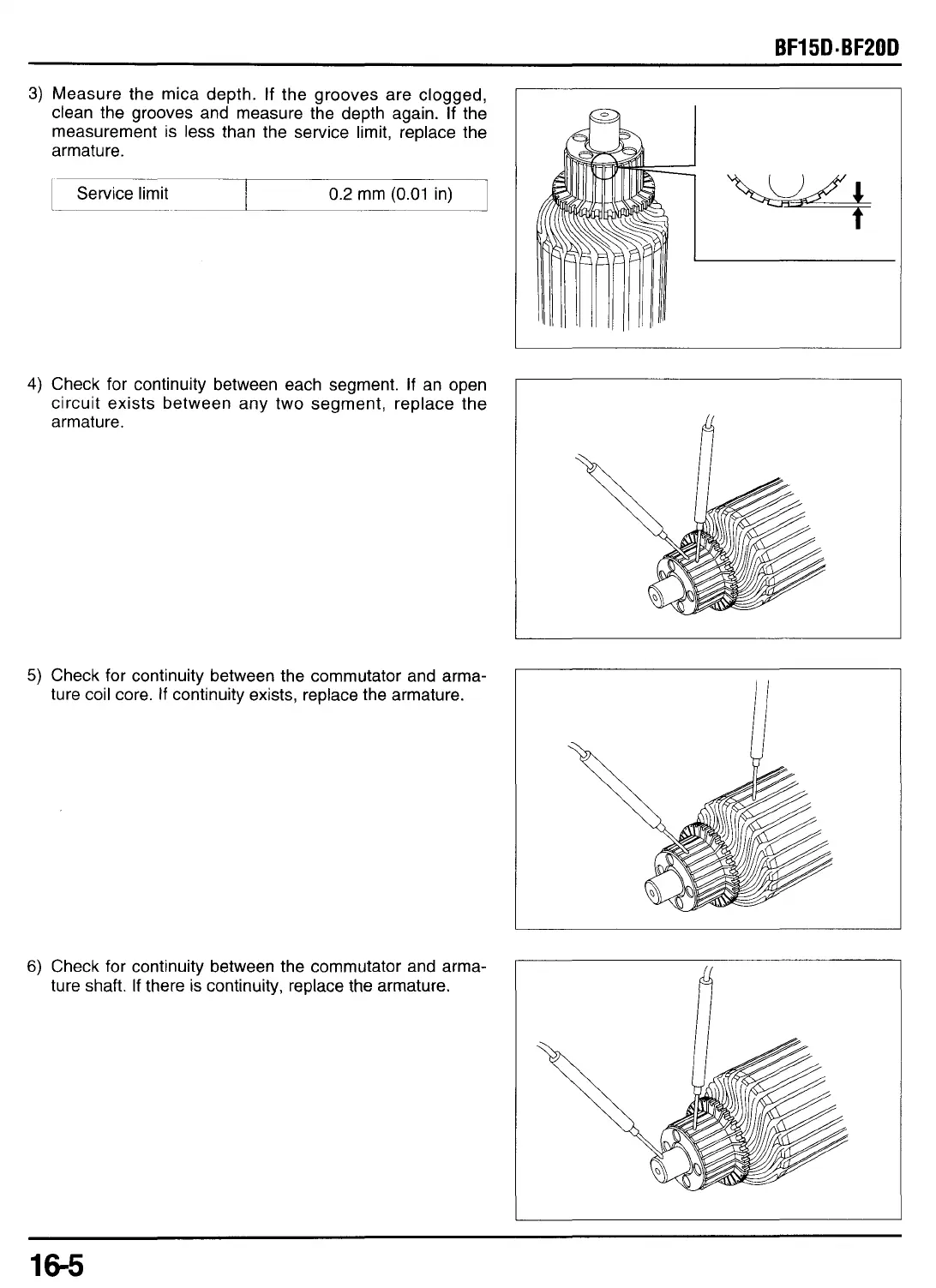

Measure the mica depth.
If
the grooves are clogged,
clean the grooves and measure the depth again.
If
the
measurement
is
less than the service limit, replace the
armature.
1
Service limit
I
0.2
mm
(0.01
in)
I
4)
Check for continuity between each segment.
If
an open
circuit exists between any two segment, replace the
armature.
5)
Check for continuity between the commutator and arma-
ture coil core.
If
continuity exists, replace the armature.
6)
Ch ck fo ontinuity between the c
mmutator and arma-
ture shaft.
If
there
is
continuity, replace the armature.
