Honda BF15D - Charging and Neutral Switch Systems Service

BF15DSBF20D

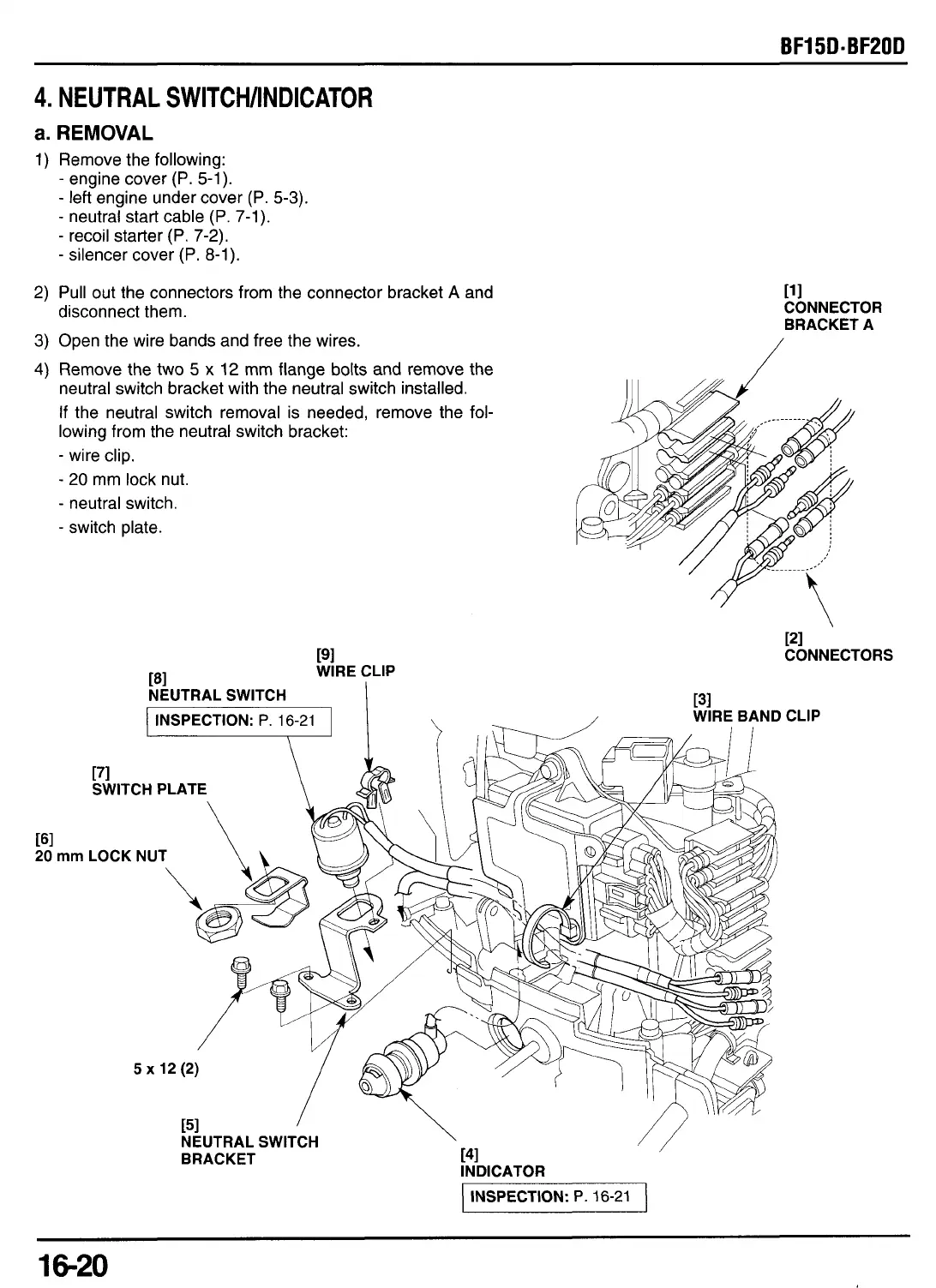

4. NEUTRAL SWlTCHllNDlCATOR
REMOVAL
Remove the following:
- engine cover (P. 5-1).
- left engine under cover (P. 5-3).
- neutral start cable (P. 7-1).
- recoil starter (P. 7-2).
- silencer cover (P. 8-1).
Pull out the connectors from the connector bracket A and
disconnect them.
Open the wire bands and free the wires.
Remove the two
5 x 12 mm flange bolts and remove the
neutral switch bracket with the neutral switch installed.
If the neutral switch removal is needed, remove the fol-
lowing from the neutral switch bracket:
- wire clip.
- 20 mm lock nut.
- neutral switch.
- switch plate.
r11
CONNECTOR
BRACKET A
\
\
121
r91 CONNECTORS
r71
SWITCH PLATE
161
20 mm LOCK NUT
NEUTRAL SWITCH
BRACKET
INDICATOR
INSPECTION:
P. 16-21
16-20
