BF15D-BF20D
6)

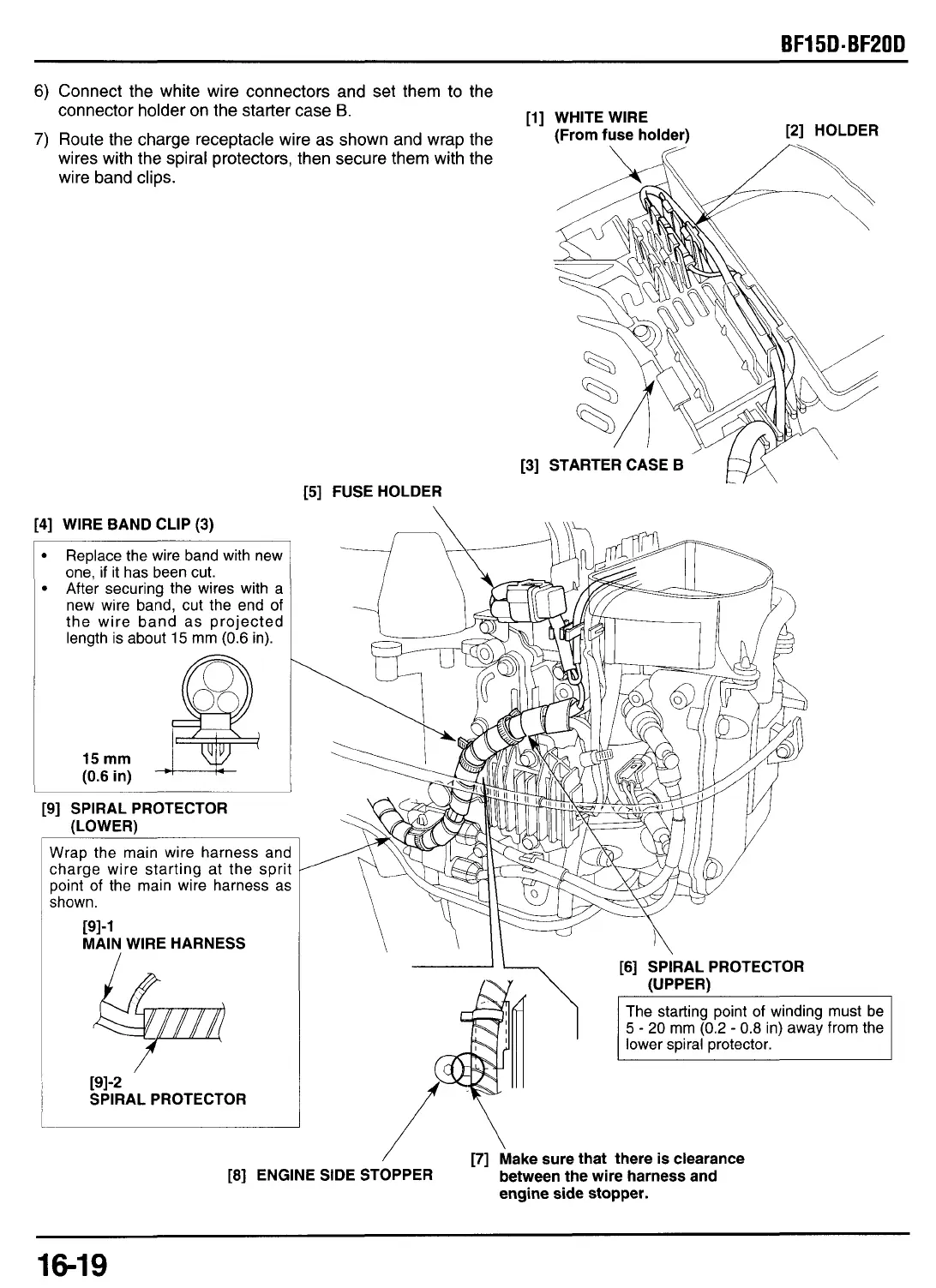

Connect the white wire connectors and set them to the
connector holder on the starter case
6.
7)
Route the charge receptacle wire as shown and wrap the
wires with the spiral protectors, then secure them with the
wire band clips.
[l]
WHITE WIRE
(From fuse holder)
[2]
HOLDER
[3]
STARTER CASE
B
[5]
FUSE HOLDER
new wire band, cut the end of
the wire band as projected
length is about
15
mm
(0.6
in).
Wrap the main wire harness and
charge wire starting at the sprit
point of the main wire harness as
shown.
191-1
I
MAIN WIRE HARNESS
I
[91-2
SPIRAL PROTECTOR
[6]
SPIRAL PROTECTOR
5
-
20
mm
(0.2
-
0.8
in) away from the
lower spiral protector.
/\
/
[7]
Make
sure that there
is
clearance
engine side stopper.
[8]
ENGINE SIDE STOPPER
between the wire harness and
16-19
