8)

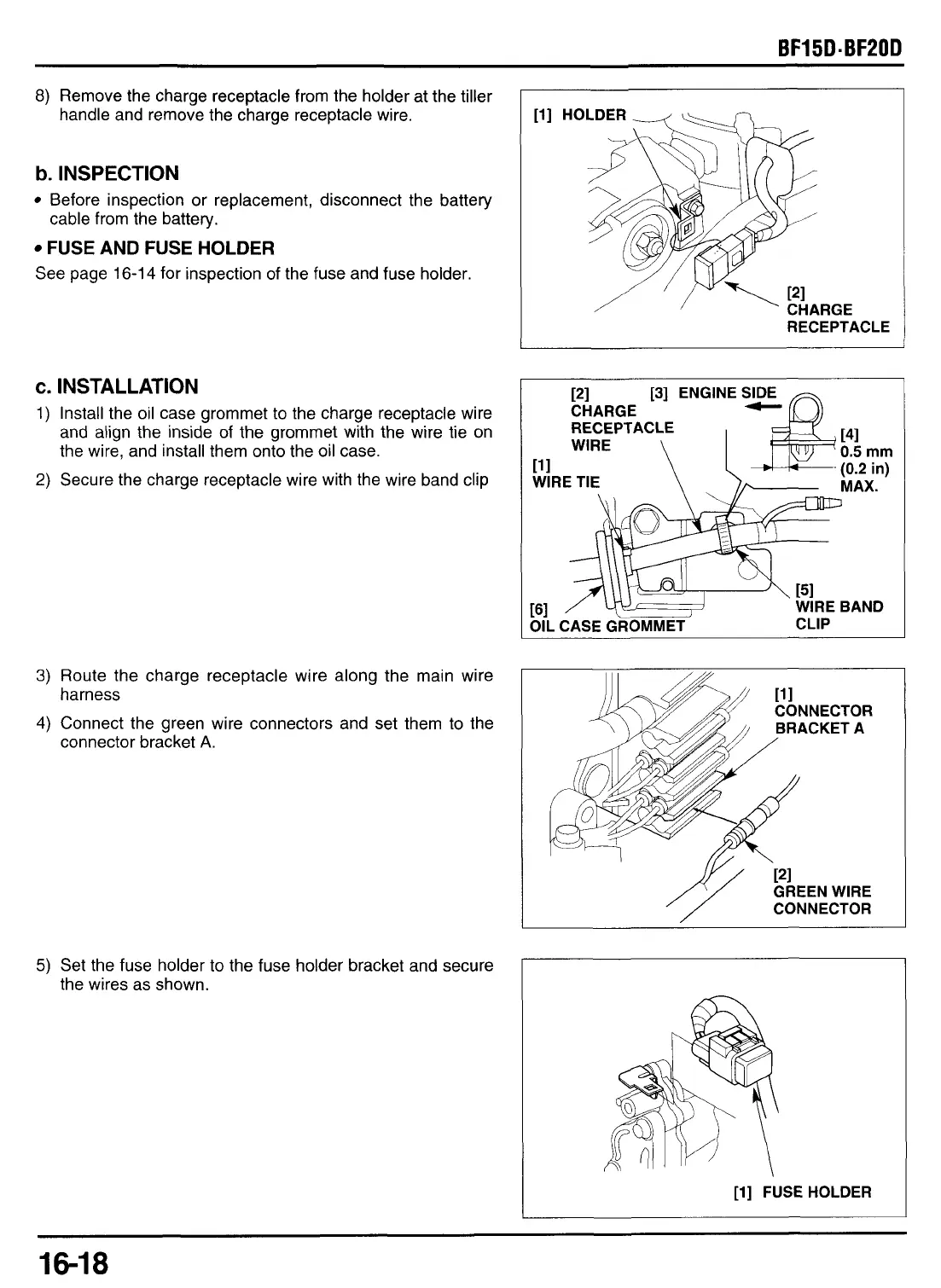

Remove the charge receptacle from the holder at the tiller
handle and remove the charge receptacle wire.
b.
INSPECTION
Before inspection or replacement, disconnect the battery
FUSE
AND
FUSE HOLDER
See page
16-1
4
for inspection of the fuse and fuse holder.
cable from the battery.
I
RECEPTACLE
c.
INSTALLATION
1)
Install the oil case grommet
to
the charge receptacle wire
and align the inside of the grommet with the wire tie on
the wire, and install them
onto
the oil case.
2)
Secure the charge receptacle wire with the wire band clip
3)
Route the charge receptacle wire along the main wire
4)
Connect the green wire connectors and set them
to
the
harness
connector bracket
A.
5)
Set the fuse holder
to
the fuse holder bracket and secure
the wires as shown.
PI
[3]
ENGINE SIDE
CHARGE
RECEPTACLE
WIRE
11
1
WIRE TIE
161
OIL
C1
ASE GROMMET CLIP
I
’/
CONNECTOR
[l]
FUSE
HOLDER
16-18
