BF15DmBF20D
3)

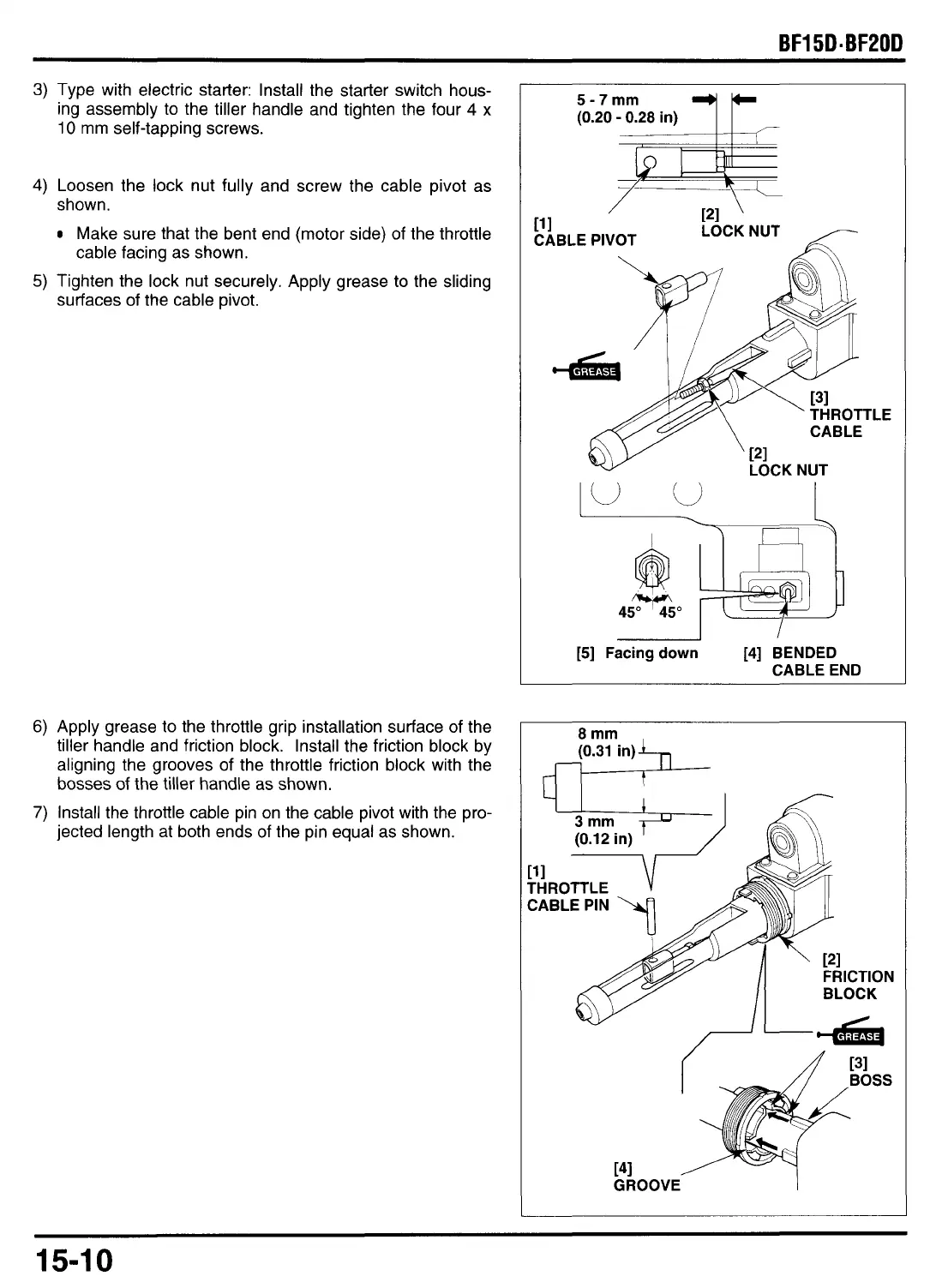

Type with electric starter: Install the starter switch hous-
ing assembly to the tiller handle and tighten the four
4
x
10
mm self-tapping screws.
4)
Loosen the lock nut fully and screw the cable pivot as
shown.
Make sure that the bent end (motor side) of the throttle
cable facing as shown.
5-7mm
/
[11
LOCK NUT
CABLE PIVOT
TLE
5)
Tighten the lock nut securely. Apply grease
to
the sliding
surfaces of the cable pivot.
[5]
Facing
down
[4]
BENDED
CABLE END
6)
Apply grease to the throttle grip installation surface of the
tiller handle and friction block. Install the friction block by
aligning the grooves of the throttle friction block with the
bosses of the tiller handle as shown.
7)
Install the throttle cable pin on the cable pivot with the pro-
jected length at both ends of the pin equal as shown.
8 mm
(0.31
in)
+
I
K
PI
FRICTION
GROOVE
I
15-1
0
