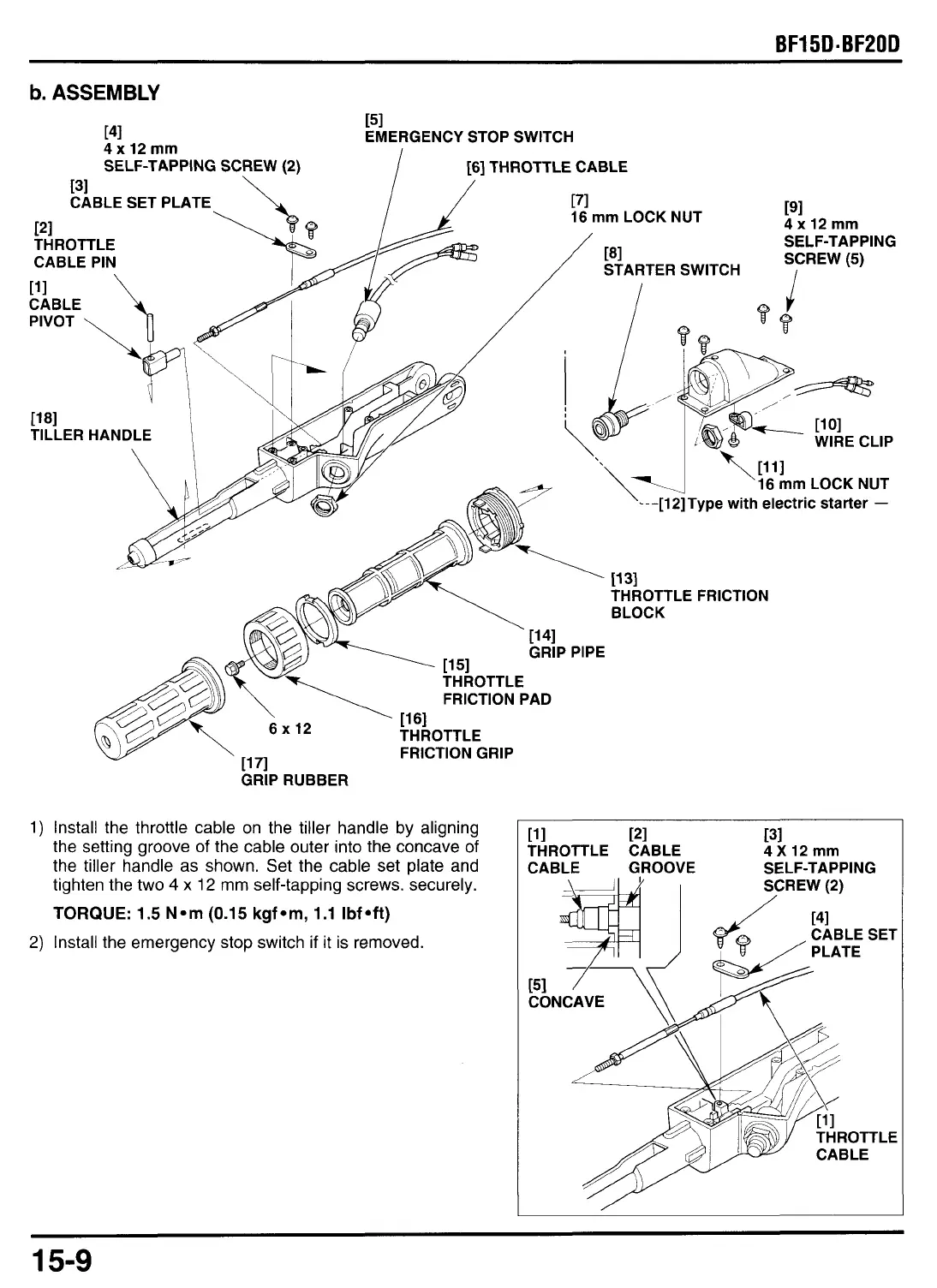

ASSEMBLY
1)
Install the throttle cable on the tiller handle by aligning
the setting groove of the cable outer into the concave of
the tiller handle as shown. Set the cable set plate and
tighten the two
4
x
12
mm self-tapping screws. securely.
TORQUE:
1.5 N*m (0.15 kgf*m, 1.1 Ibf*ft)
2)
Install the emergency
stop
switch if it
is
removed.
[11
PI
THROTTLE CABLE
131
4X12mm
CABLE GROOVE SELF-TAPPING
15-9
To Next Page
