BF15D-BF20D

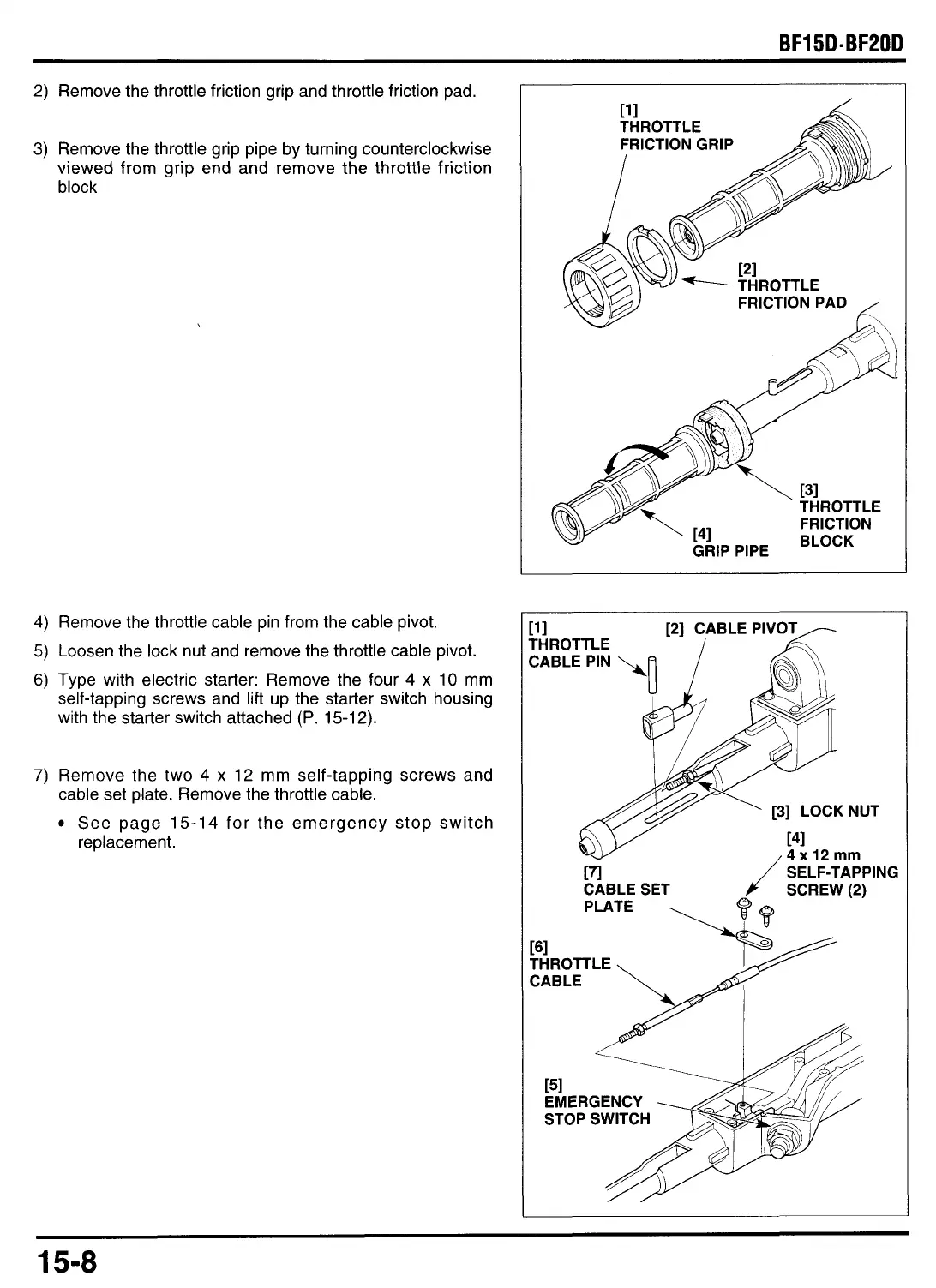

2) Remove the throttle friction grip and throttle friction pad
3)
Remove the throttle grip pipe by turning counterclockwise
viewed from grip end and remove the throttle friction
block
4) Remove the throttle cable pin from the cable pivot.
5)
Loosen the lock nut and remove the throttle cable pivot.
6)
Type with electric starter: Remove the four
4
x
10 mm
self-tapping screws and lift up the starter switch housing
with the starter switch attached
(P.
15-1
2).
7)
Remove the two 4
x
12 mm self-tapping screws and
cable set plate. Remove the throttle cable.
See page 15-14 for the emergency stop switch
replacement.
THROTTLE
FRICTION GRIP
THROTTLE
FRICTION PAD
FRICTION
BLOCK
GRIP
PIPE
THROTTLE
S
E L F-TA P P
I
N G
CABLE SET
EMERGENCY
STOP SWITCH
15-8
