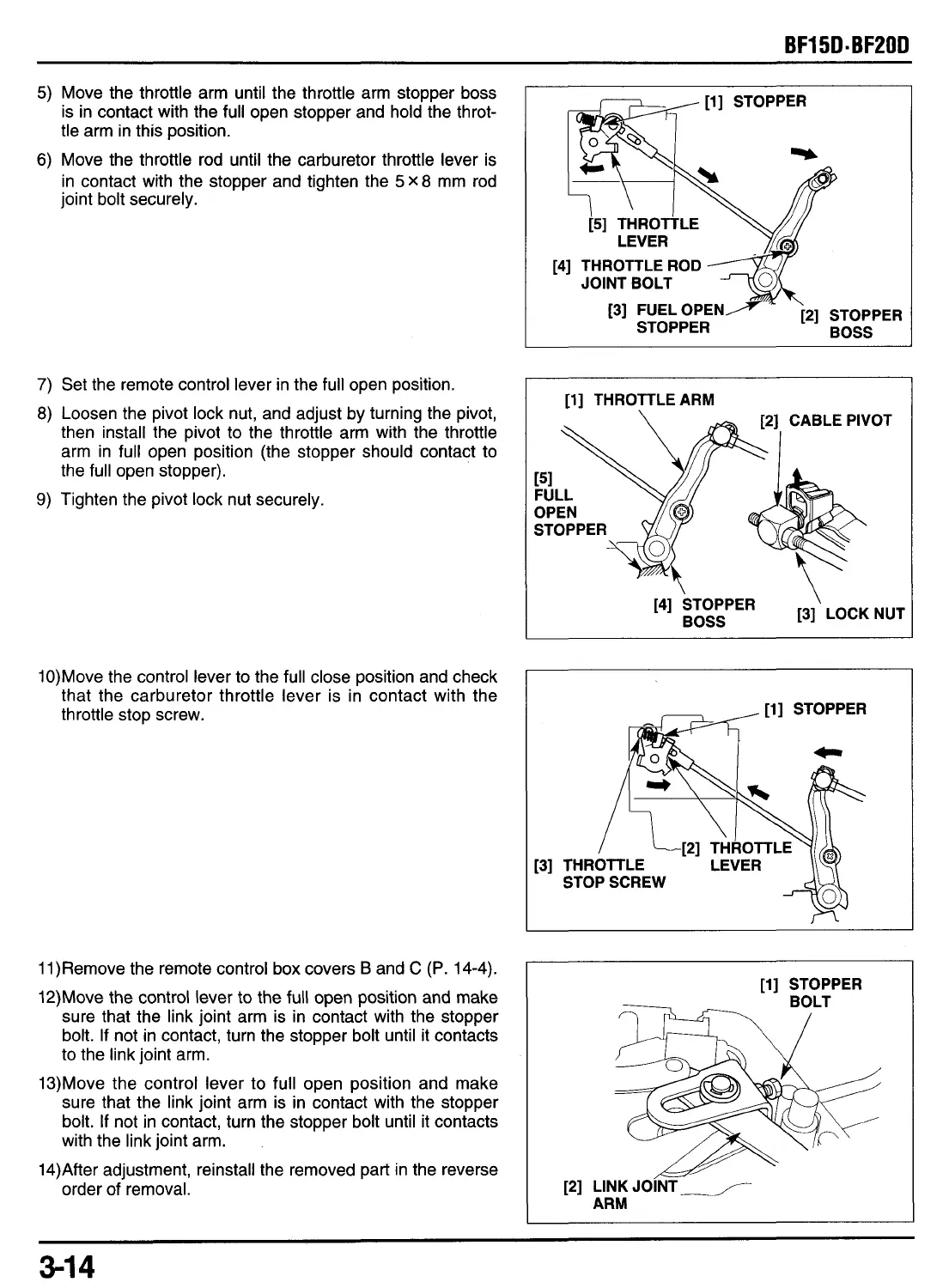

5)
Move the throttle arm until the throttle arm stopper boss
is in contact with the full open stopper and hold the throt-
tle arm in this position.
6)
Move the throttle rod until the carburetor throttle lever is
in contact with the stopper and tighten the
5
x
8
mm rod
joint bolt securely.
7)
Set the remote control lever in the full open position.
8)
Loosen the pivot lock nut, and adjust by turning the pivot,
then install the pivot to the throttle arm with the throttle
arm in full open position (the stopper should contact to
the full open stopper).
9)
Tighten the pivot lock nut securely.
10)Move the control lever to the full close position and check
that the carburetor throttle lever is in contact with the
throttle stop screw.
11)Remove the remote control box cov-rs
B
d
C
(P.
14-4).
12)Move the control lever to the
full
open position and make
sure that the link joint arm is in contact with the stopper
bolt.
If
not in contact, turn the stopper bolt until it contacts
to the link joint arm.
13)Move the control lever to full open position and make
sure that the link joint arm is in contact with the stopper
bolt.
If
not in contact, turn the stopper bolt until it contacts
with the link joint arm.
14)After adjustment, reinstall the removed part in the reverse
order of removal.
[q
THROT~LE
LEVER
[4] THROTTLE
ROD
JOINT BOLT
[3] FUEL OPEN7
'&
e-rnnnen
[2] STOPPER
BOSS
J
I
urrcn
[l]
THROTTLE
ARM
[2] CABLE PIVOT
OPEN
STOPPER
\-
\
14] [3] LOCKNUT
BOSS
I
131
STOP SCREW
[l] STOPPER
BOLT
7-
/
3-14
