5)

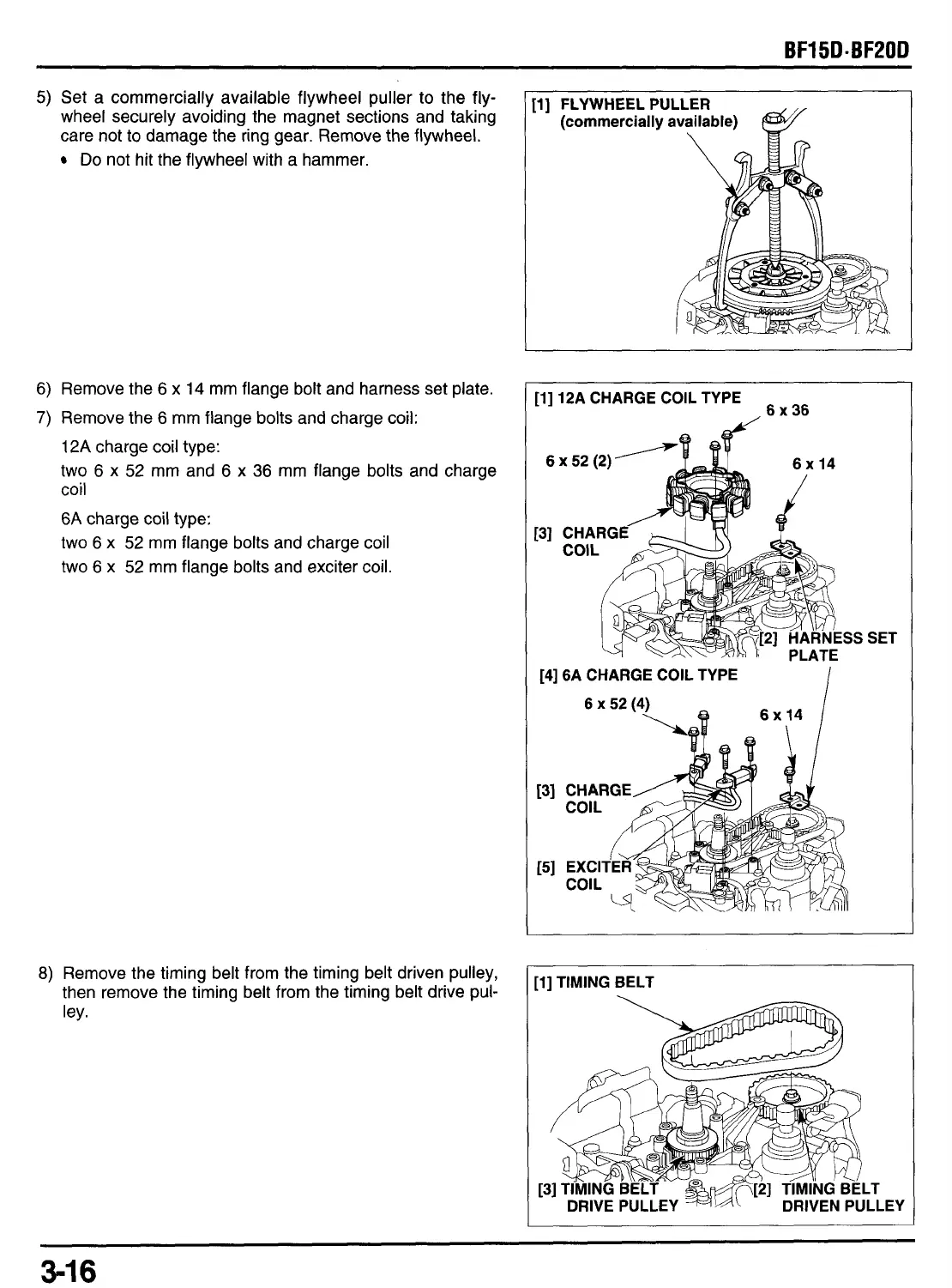

Set a commercially available flywheel puller to the fly-
wheel securely avoiding the magnet sections and taking
care not to damage the ring gear. Remove the flywheel.
Do
not hit the flywheel with a hammer.
6)
Remove the
6
x
14
mm flange bolt and harness set plate.
7) Remove the
6
mm flange bolts and charge coil:
12A
charge coil type:
two
6
x
52
mm and
6
x
36
mm flange bolts and charge
coil
6A
charge coil type:
two
6
x
52
mm flange bolts and charge coil
two
6
x
52
mm flange bolts and exciter coil.
8)
Remove the timing belt from the timing belt driven pulley,
then remove the timing belt from the timing belt drive
pul-
ley.
[l] FLYWHEEL PULLER
I
(commercially available)
[l] 12A CHARGE COIL TYPE
6 x 36
6
131
SET
[4] 6A CHARGE COIL TYPE
6
x
52
(4)
\Q
6x14
I
[l] TIMING
BELT
3-16
