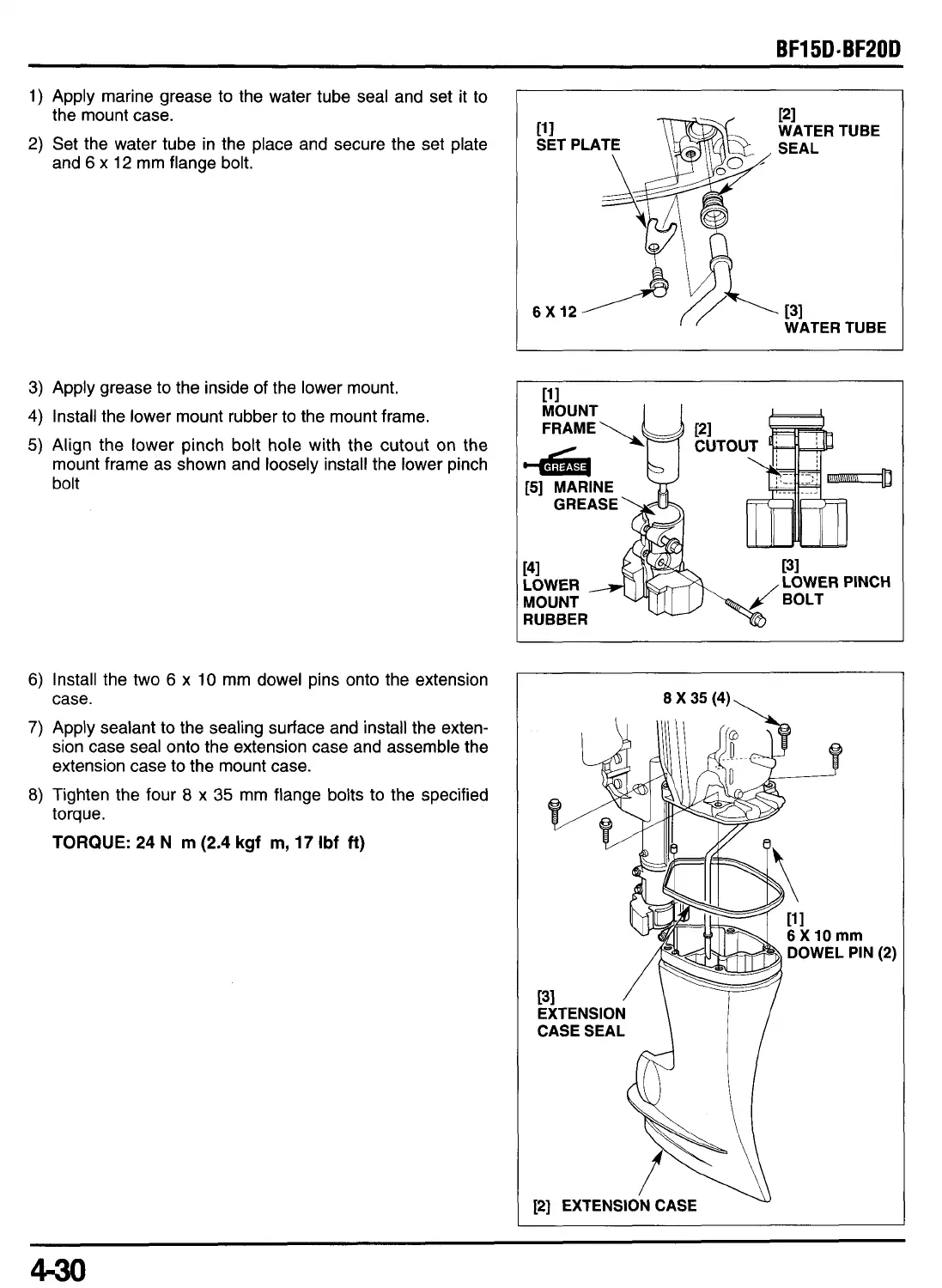

BF15DmBF20D
1)
Apply marine grease
to
the water tube seal and set it to
2)
Set the water tube in the place and secure the set plate
the mount case.
and
6
x
12
mrn flange bolt.
3)
Apply grease
to
the inside of the lower mount.
4)
Install the lower mount rubber
to
the mount frame.
5)
Align the lower pinch bolt hole with the cutout on the
mount frame as shown and loosely install the lower pinch
bolt
6)
Install the two
6
x
10
mm dowel pins onto the extension
case.
7)
Apply sealant to the sealing surface and install the exten-
sion case seal onto the extension case and assemble the
extension case to the mount case.
8)
Tighten the four
8
x
35
mm flange bolts
to
the specified
torque.
TORQUE:
24
N m
(2.4
kgf
m,
17
Ibf
ft)
121
[I
1
WATER TUBE
SET PLATE
,
SEAL
6x12’
131
WATER
TUBE
TO
[31
LOWER
PINCH
8
X 35
(4),
CASESEAL
\
I/
To Next Page
