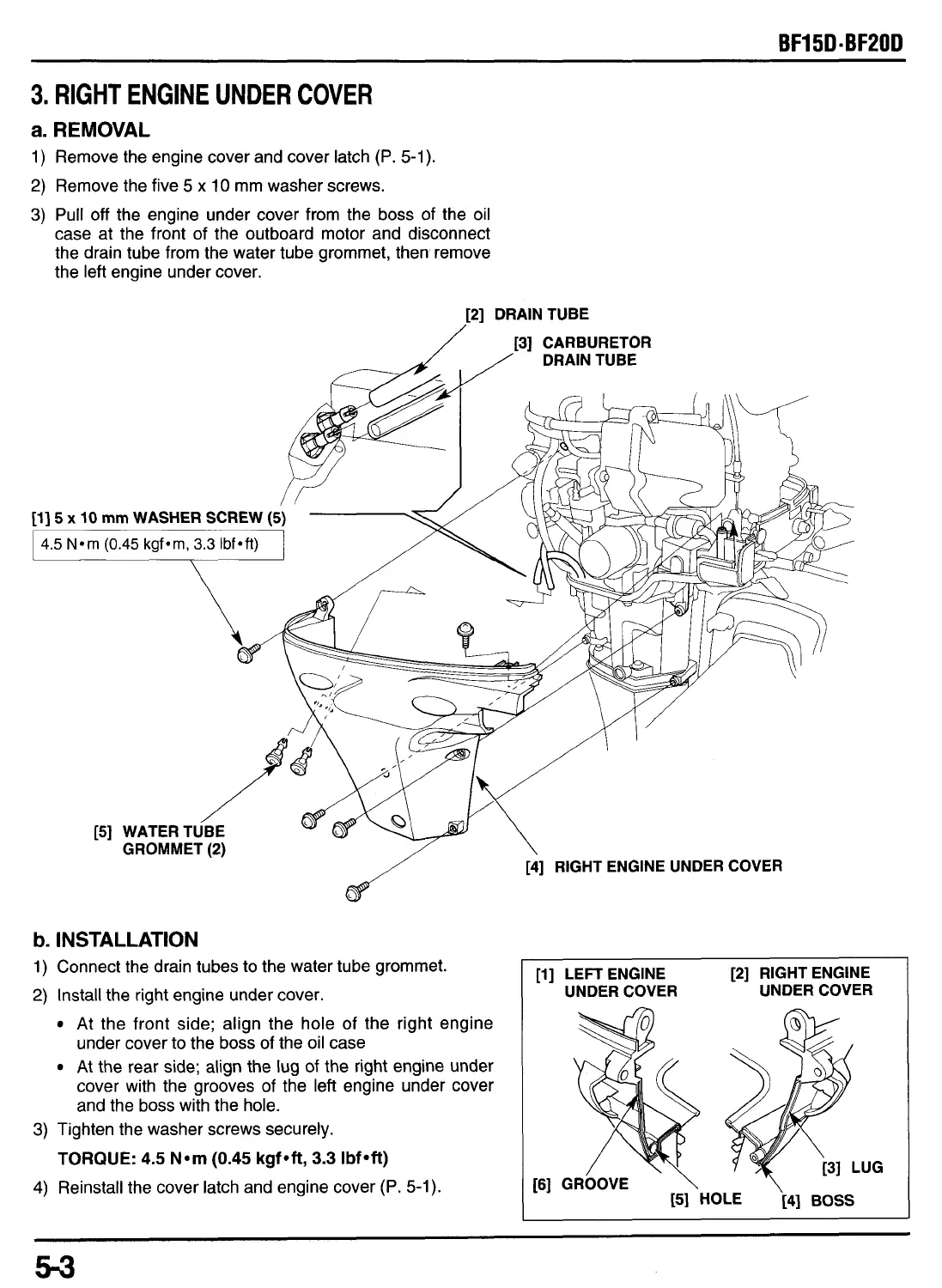

3.
RIGHT ENGINE UNDER COVER
a. REMOVAL
1)
Remove the engine cover and cover latch
(P.
5-1).
2)
Remove the five
5
x
10 mm washer screws.
3)
Pull off the engine under cover from the boss of the oil
case at the front of the outboard motor and disconnect
the drain tube from the water tube grommet, then remove
the left engine under cover.
[2]
DRAIN TUBE
b.
INSTALLATION
1)
Connect the drain tubes
to
the water tube grommet.
2)
Install the right engine under cover.
At
the front side; align the hole
of
the right engine
under cover
to
the boss of the oil case
At the rear side; align the lug of the right engine under
cover with the grooves of the left engine under cover
and the boss with the hole.
3)
Tighten the washer screws securely.
4)
Reinstall the cover latch and engine cover (P.
5-1).
TORQUE:
4.5
N*m
(0.45
kgfoft,
3.3
Ibfoft)
[l]
LEFT ENGINE
[2] RIGHT ENGINE
UNDER COVER UNDER COVER
151
HOLE
[4]
BOSS
