BF15D-BF20D
b.

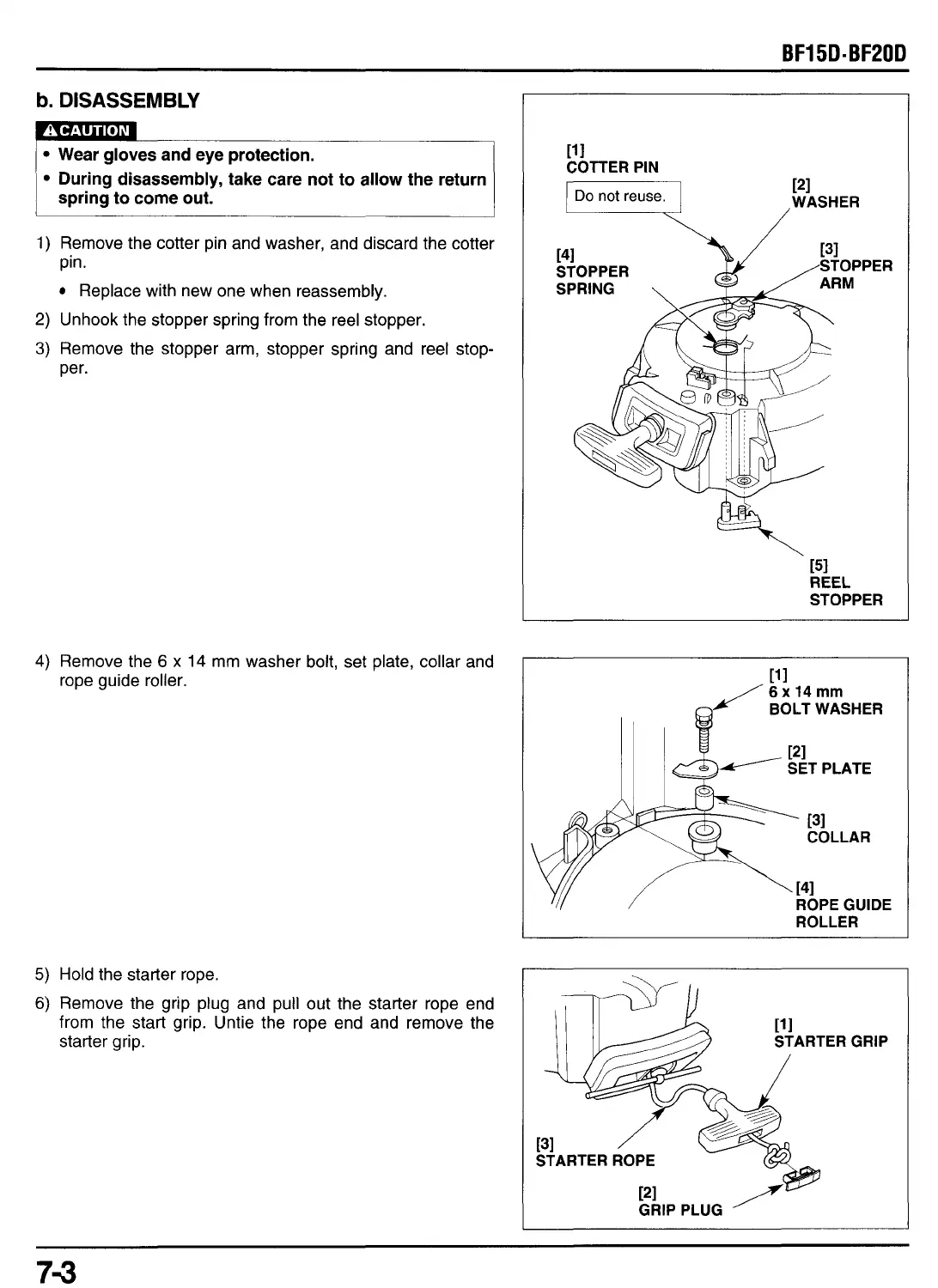

DISASSEMBLY
Wear gloves and eye protection.
During disassembly, take care not to
allow
the return
spring to come out.
1)
Remove the cotter pin and washer, and discard the cotter
pin.
Replace with new one when reassembly.
2)
Unhook the stopper spring from the reel stopper.
3)
Remove the stopper arm, stopper spring and reel stop-
per.
4)
Remove the
6
x
14
mm washer bolt, set plate, collar and
rope guide roller.
5)
Hold the starter rope.
6)
Remove the grip plug and pull out the starter rope end
from the start grip. Untie the rope end and remove the
starter grip.
[dl
COTTER PIN
PI
WASHER
.
/
151
REEL
STOPPER
BOLT
WASHER
SET PLATE
ROPE GUIDE
I
ROLLER
GRIP
GRIP PLUG
’
