BF15DmBF20D

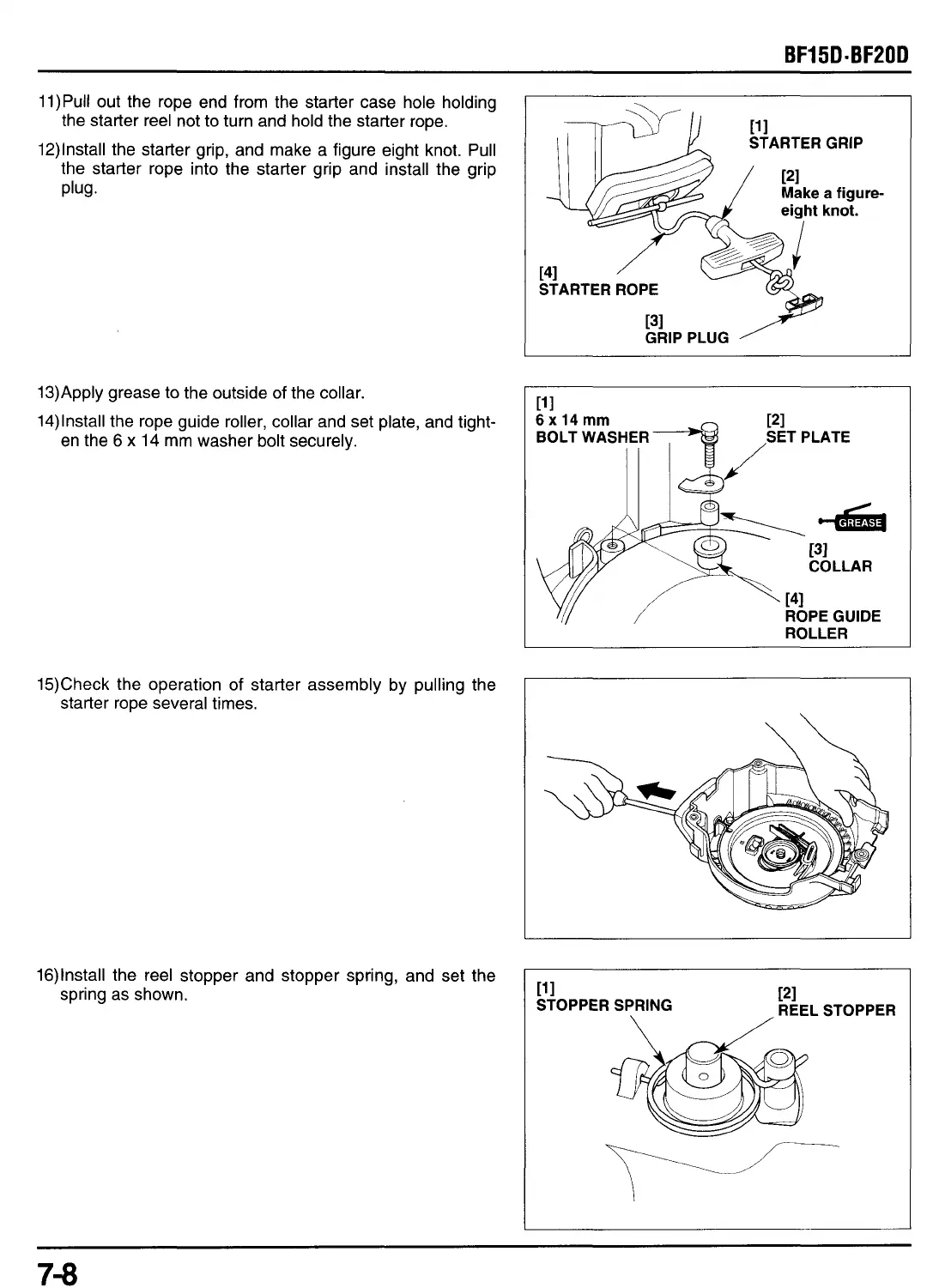

11)Pull out the rope end from the starter case hole holding
the starter reel not
to
turn and hold the starter rope.
12)lnstall the starter grip, and make a figure eight knot. Pull
the starter rope into the starter grip and install the grip
Plug.
13)Apply grease
to
the outside of the collar.
14)lnstall the rope guide roller, collar and set plate, and tight-
en the 6
x
14 mm washer
bolt
securely.
15)Check the operation of starter assembly by pulling the
starter rope several times.
16)lns
all
the reel stopper and
E
spring as shown.
3pper spring, and set the
STARTER GRIP
11
1
6xl4mm
121
BOLT WASHER SET PLATE
r31
COLLAR
ROPE GUIDE
I
ROLLER
11
1
STOPPER SPRING
\
121
REEL STOPPER
/
