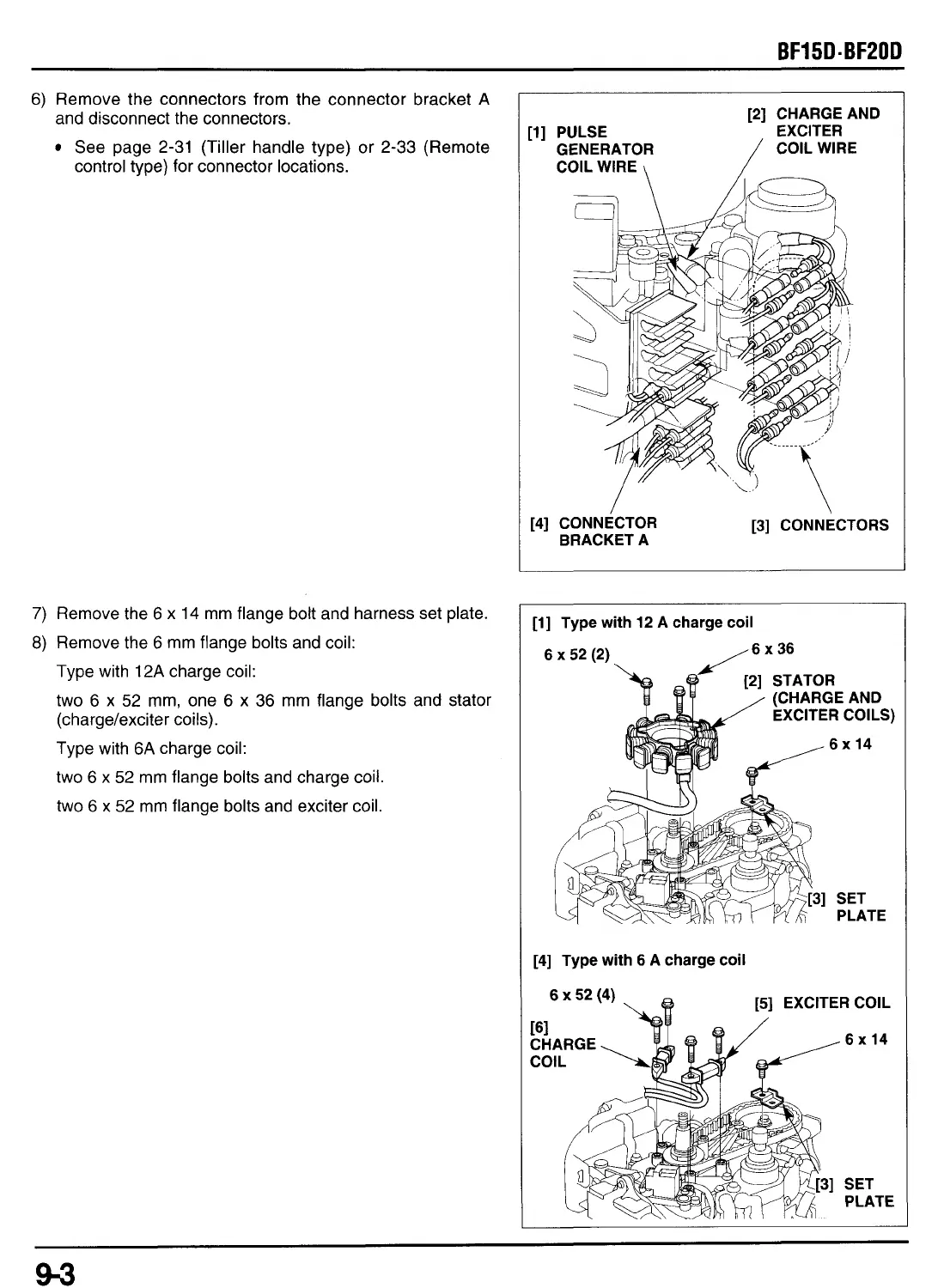

6) Remove the connectors from the connector bracket
A
and disconnect the connectors.
See page 2-31 (Tiller handle type) or 2-33 (Remote
control
type)
for connector locations.
7)
Remove the
6
x
14
mm flange bolt and harness set plate.
8)
Remove the
6
mm flange bolts and coil:
Type with
12A
charge coil:
two 6
x
52 mm, one 6
x
36 mm flange bolts and stator
(charge/exciter coils).
Type with
6A
charge coil:
two
6 x
52
mm flange bolts and charge coil.
two 6
x
52
mm flange bolts and exciter coil.
[2] CHARGE AND
I
[l]
Type with 12 A charge coil
6
x
52 (2)
EXCITER COILS)
31
SET
PLATE
[4]
Type with
6
A
charge coil
6
x
52
(4)
[5] EXCITER COIL
To Next Page
