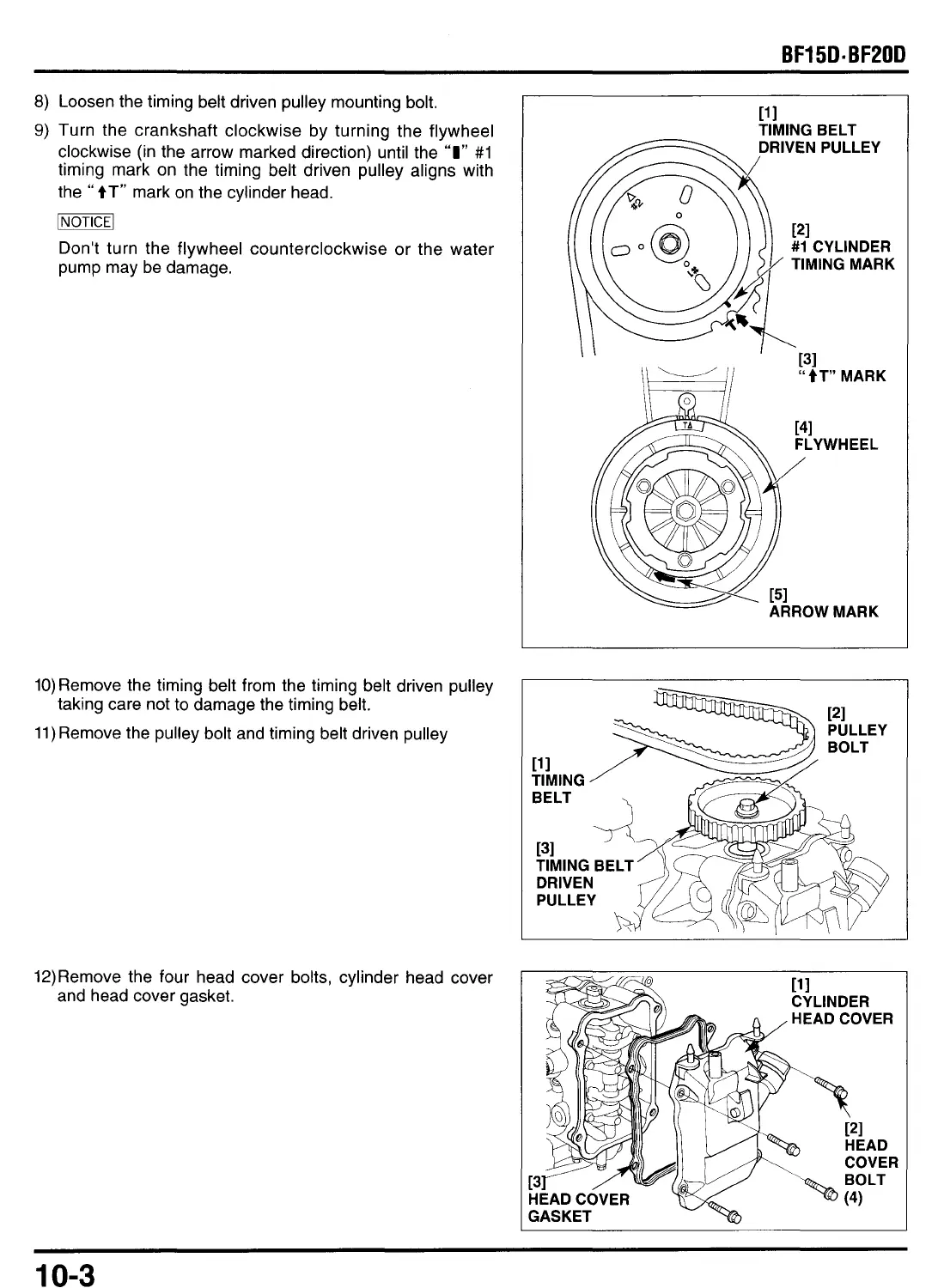

BF15DmBF20D
8)
Loosen the timing belt driven pulley mounting bolt.
9)
Turn the crankshaft clockwise by turning the flywheel
clockwise (in the arrow marked direction) until the
“I”
#1
timing mark on the timing belt driven pulley aligns with
the
“
tT”
mark on the cylinder head.
pmE
Don’t turn the flywheel counterclockwise or the water
pump may be damage.
10)Remove the timing belt from the timing belt driven pulley
11)Remove the pulley bolt and timing belt driven pulley
taking care not
to
damage the timing belt.
12)Remove the four head cover bolts, cylinder head cover
and head cover gasket.
11
1
TIMING BELT
#1
CYLINDER
“tT” MARK
CYLINDER
HEAD COVER
R
[3
HEAD COVER
GASKET
10-3
