BF15D-BF20D
4)

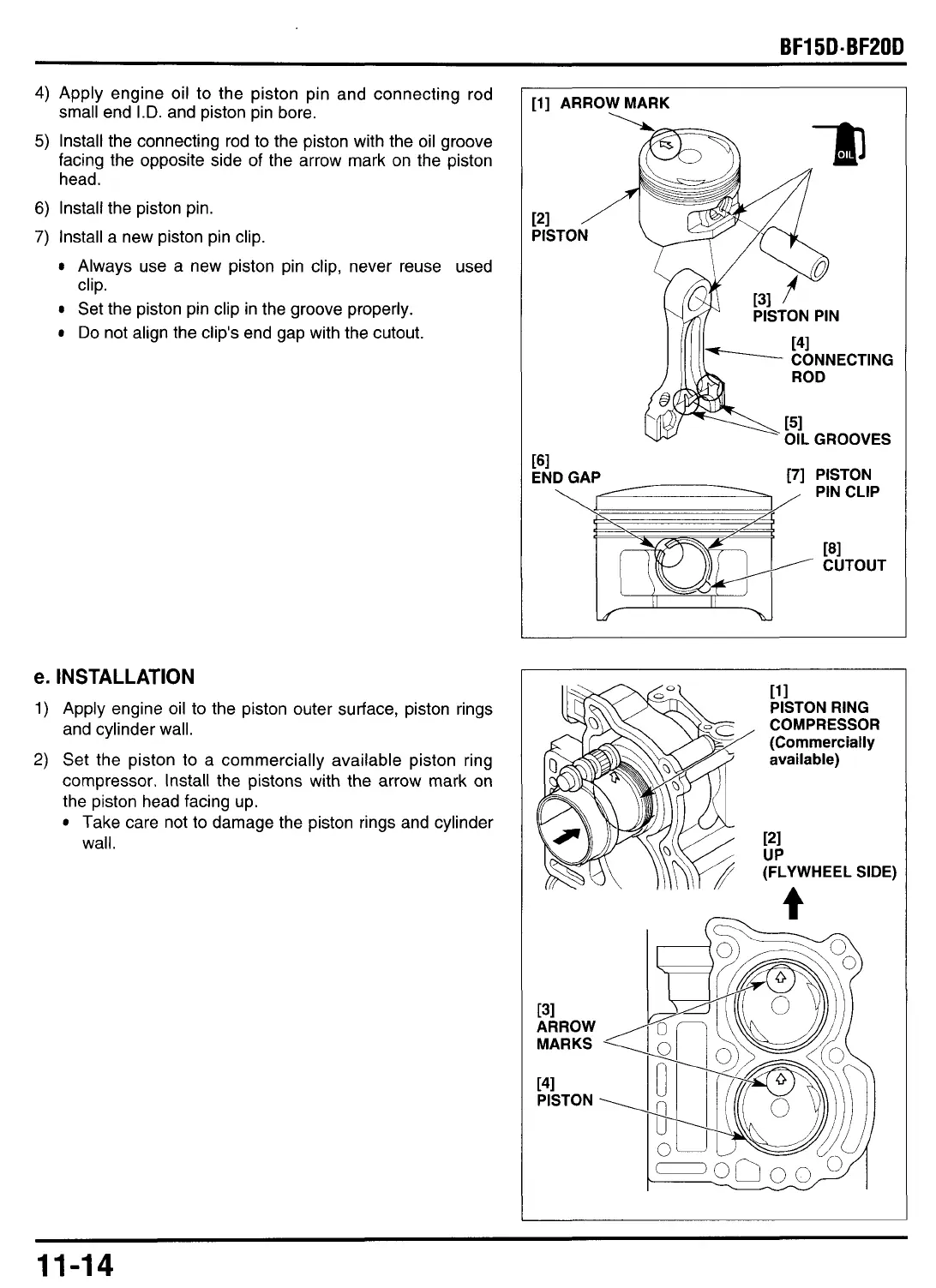

Apply engine oil to the piston pin and connecting rod
small end
I.D.
and piston pin bore.
5)
Install the connecting rod to the piston with the oil groove
facing the opposite side
of
the arrow mark on the piston
head.
6) Install the piston pin.
7)
Install a new piston pin clip.
Always use a new piston pin clip, never reuse used
clip.
Set the piston pin clip in the groove properly.
Do
not align the clip's end gap with the cutout.
e.
INSTALLATION
1)
Apply engine oil to the piston outer surface, piston rings
and cylinder wall.
2)
Set the piston to a commercially available piston ring
compressor. Install the pistons with the arrow mark on
the piston head facing up.
Take care not
to
damage the piston rings and cylinder
wall.
[l]
ARROW MARK
171
PISTON
[GI
END
GAP
T-7
,
PIN
CLIP
CUTOUT
II II
11-14
