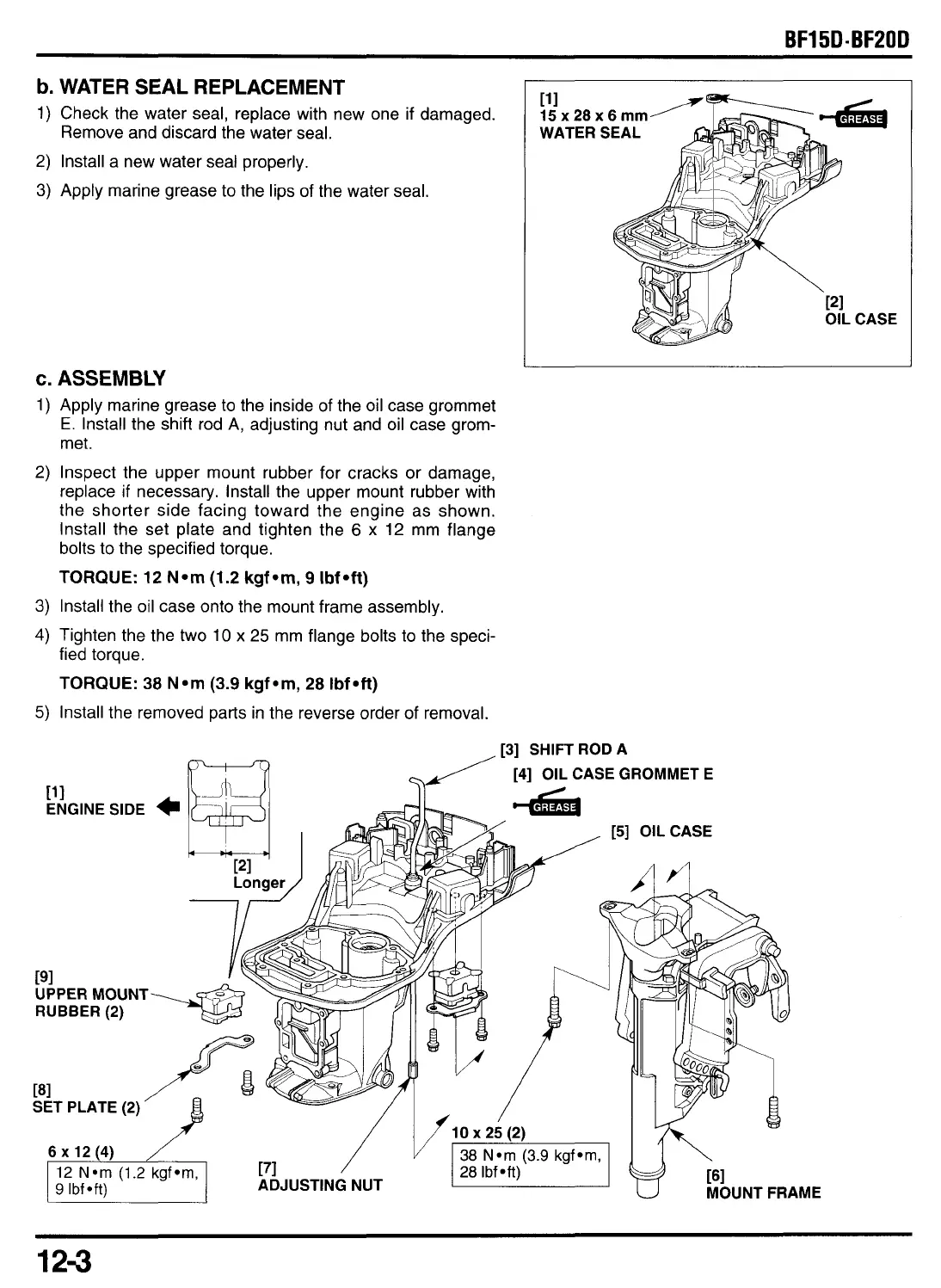

BF15D-BF20D
b.
WATER
SEAL
REPLACEMENT
1)
Check the water seal, replace with new one if damaged.
Remove and discard the water seal.
2)
Install a new water seal properly.
3)
Apply marine grease to the lips of the water seal.
11
1
15
x
28
x
6
mm
WATER
SEAL
OIL
CASE
I
c.
ASSEMBLY
1)
Apply marine grease
to
the inside of the oil case grommet
E.
Install the shift rod A, adjusting nut and oil case grom-
met.
2)
Inspect the upper mount rubber for cracks or damage,
replace if necessary. Install the upper mount rubber with
the shorter side facing toward the engine as shown.
Install the set plate and tighten the
6
x
12
mm flange
bolts
to
the specified torque.
TORQUE:
12 N*m
(1.2
kgf*m, 9 Ibf*ft)
3)
Install the oil case onto the mount frame assembly.
4)
Tighten the the two
10
x
25
mm flange
bolts
to
the speci-
fied torque.
TORQUE:
38
N
*rn
(3.9 kgf
Om,
28 Ibf
Oft)
5)
Install the removed parts in the reverse order of removal.
12-3
