BF15D-BF20D

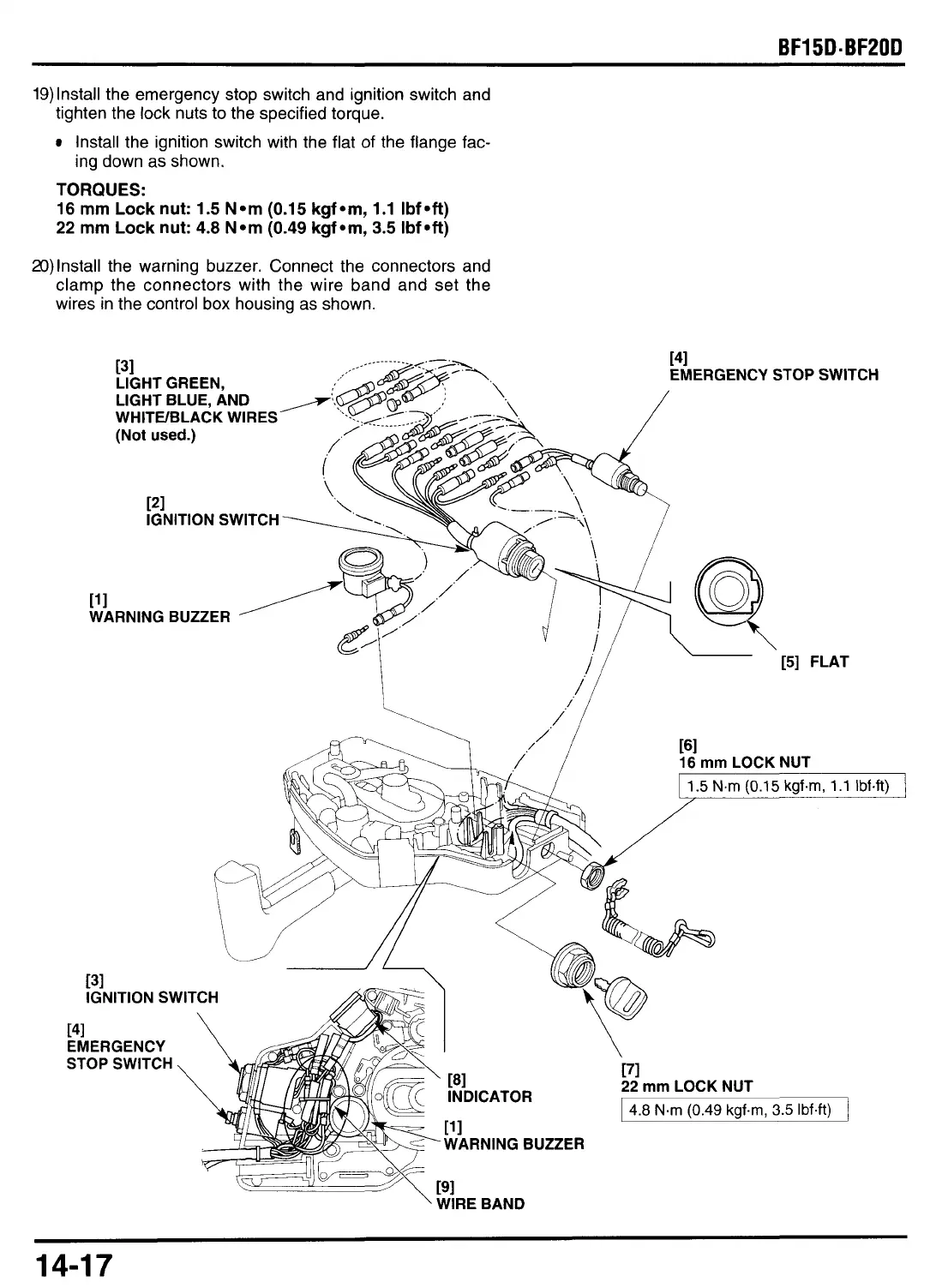

19)lnstall the emergency stop switch and ignition switch and
tighten the lock nuts to the specified torque.
Install the ignition switch with the flat of the flange fac-
ing down as shown.
TORQUES:
16 mm Lock nut: 1.5 N*m (0.15 kgf*m, 1.1 Ibf*ft)
22 mm Lock nut: 4.8 N *m (0.49 kgf Om, 3.5 Ibf Oft)
20) Install the warning buzzer. Connect the connectors and
clamp the connectors with the wire band and set the
wires in the control
box housing as shown.
[31
LIGHT GREEN,
LIGHT BLUE, AND
/',>
WHITWBLACK WIRES
(Not
used.)
121
IGNITION SWITCH
ANING BUZZER
STOP SWITCH
\
[5] FLAT
\- -lhi / 1 1.5 Nm (0.15 kgfm, 1.1 Ibf.ft) 1
141
EMERGENCY
STOP SWITCH
4.8 N.m (0.49 kgfm, 3.5 Ibf.ft) 1
14-1 7

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
