BF15DmBF20D

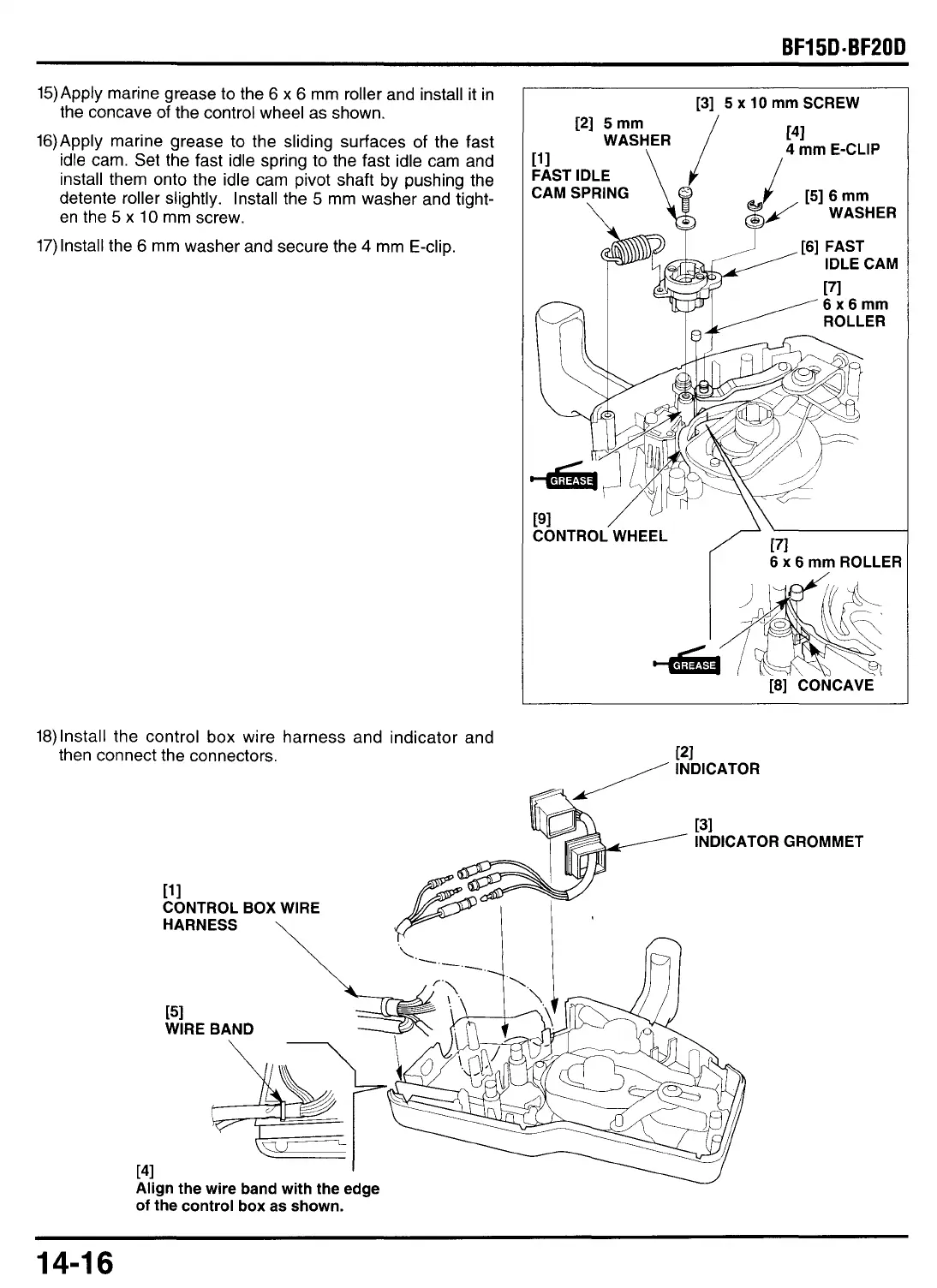

15)Apply marine grease
to
the
6
x
6
mm roller and install it in
the concave of the control wheel as shown.
16)Apply marine grease
to
the sliding surfaces of the fast
idle cam. Set the fast idle spring
to
the fast idle cam and
install them onto the idle cam pivot shaft
by
pushing the
detente roller slightly. Install the
5
mm washer and tight-
en the
5
x
10 mm screw.
17)
Install the
6
mm washer and secure the
4
mm E-clip.
18)lnstall the control
box
wire harness and indicator and
then connect the connectors.
[3]
5
x
10
mm
SCREW
6
x
6
mm
ROLLER
[8]
CONCAVE
WIRE BAND
141
Align the wire band with the edge
of
the control box
as
shown.
GROMMET
14-1
6
