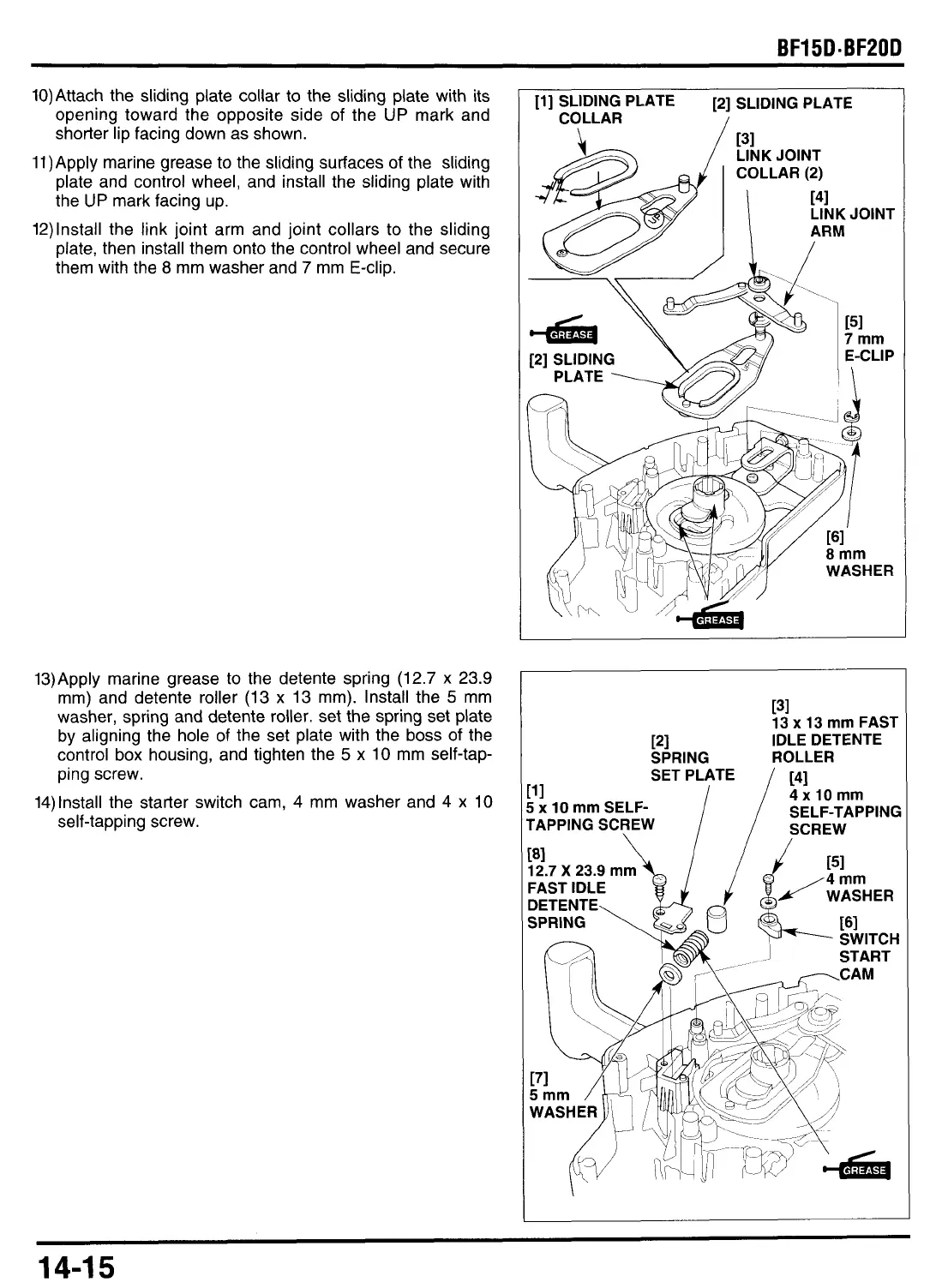

10)Attach the sliding plate collar to the sliding plate with its
opening toward the opposite side of the
UP
mark and
shorter lip facing down as shown.
11)Apply marine grease
to
the sliding surfaces of the sliding
plate and control wheel, and install the sliding plate with
the
UP
mark facing up.
12)lnstall the link joint arm and joint collars
to
the sliding
plate, then install them onto the control wheel and secure
them with the
8
mm washer and
7
mm E-clip.
13)Apply marine grease
to
the detente spring
(12.7
x 23.9
mm) and detente roller (13
x
13 mm). Install the
5
mm
washer, spring and detente roller. set the spring set plate
by aligning the hole of the set plate with the boss of the
control box housing, and tighten the
5
x
10
mm self-tap-
ping screw.
14)lnstall the starter switch cam, 4 mm washer and 4
x
10
self-tapping screw.
131
13 x 13 mm
FAST
IDLE DETENTE
ROLLER
121
SPRING
111
SETPTE
,,/
1
4xlOmm
5
x 10 mm
SELF-
S
E L F-TA P PI N G
SCREW
TAPPING SCREW
\
