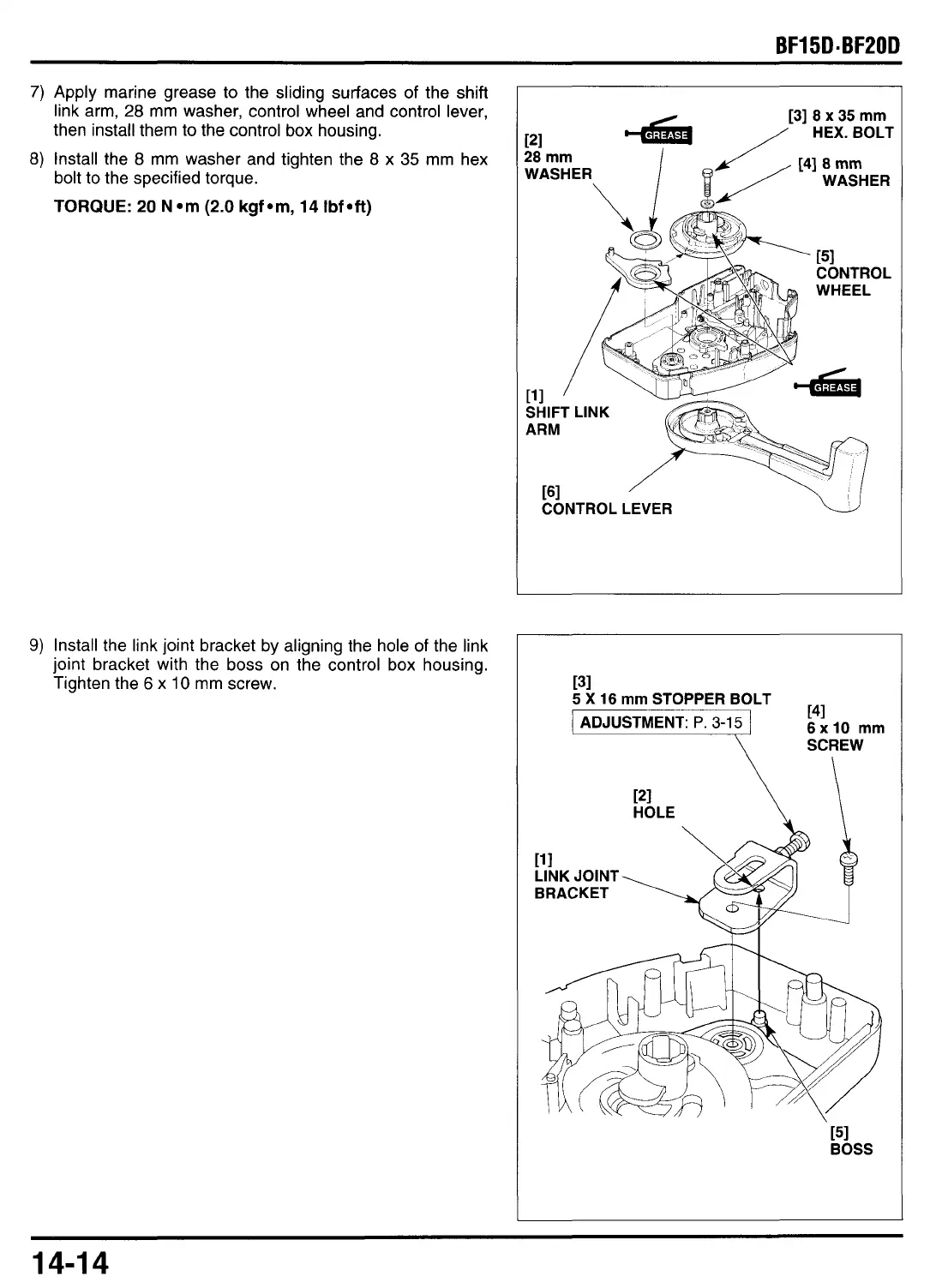

7)
Apply marine grease
to
the sliding surfaces of the shift
link arm,
28
mm washer, control wheel and control lever,
then install them to the control box housing.
8)
Install the
8
mm washer and tighten the
8
x
35
mm hex
bolt to the specified torque.
TORQUE:
20
N*m
(2.0
kgf*m,
14
Ibfaft)
9)
Install the link joint bracket by aligning the hole of the link
joint bracket with the boss on the control box housing.
Tighten the
6
x
10
mm screw.
I
[3]
8
x
35
mm
4
/
HEX.BOLT
11
1
SHlF
ARM
131
5
X
16
mm
STOPPER BOLT
[41
6x10
mm
SCREW
11
1
LINK JOINT
BRACKET
151
BOSS
14-1 4
To Next Page
