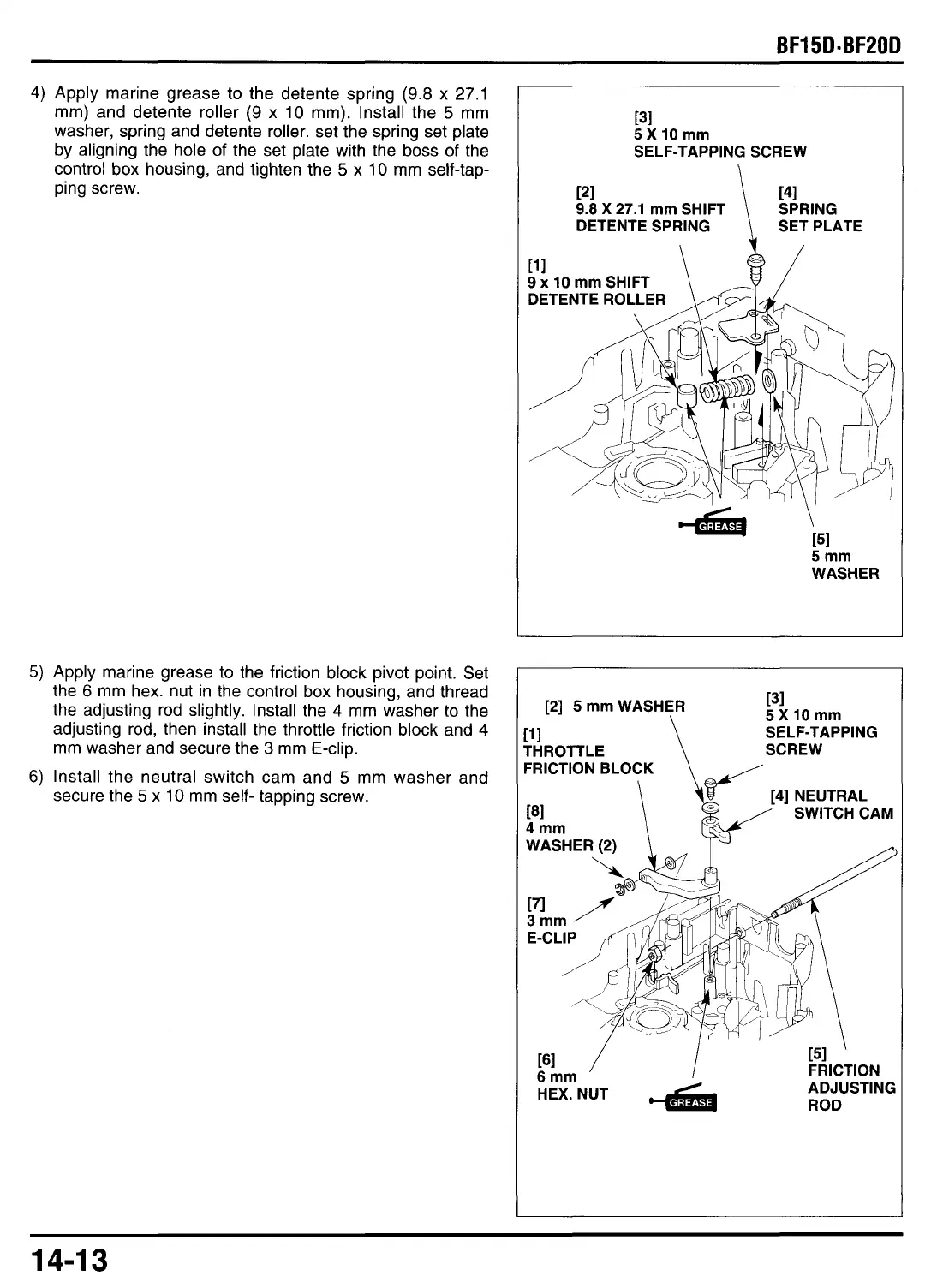

4)
Apply marine grease
to
the detente spring
(9.8
x
27.1
mm) and detente roller
(9
x
10
mm). Install the
5
mm
washer, spring and detente roller. set the spring set plate
by aligning the hole of the set plate with the boss
of
the
control box housing, and tighten the
5
x
10
mm self-tap-
ping screw.
5X10mm
9.8
X 27.1 mm SHIFT
DETENTE SPRING SET PLATE
SPRING
5)
Apply marine grease
to
the friction block pivot point. Set
the
6
mm hex. nut in the control box housing, and thread
the adjusting rod slightly. Install the
4
mm washer
to
the
adjusting rod, then install the throttle friction block and
4
mm washer and secure the
3
mm E-clip.
6)
Install the neutral switch cam and
5
mm washer and
secure the
5
x
10
mm self- tapping screw.
9
11
x
1
10 mm SHIFT
\
i/
5
mm
WASHER
131
[2] 5 mm WASHER 5X10mm
SELF-TAPPING
\
SCREW
11
rHROTTLE
151
'
FRICTION
ADJUSTING
ROD
161
/
6
mm
HEX. NUT
14-1
3
To Next Page
