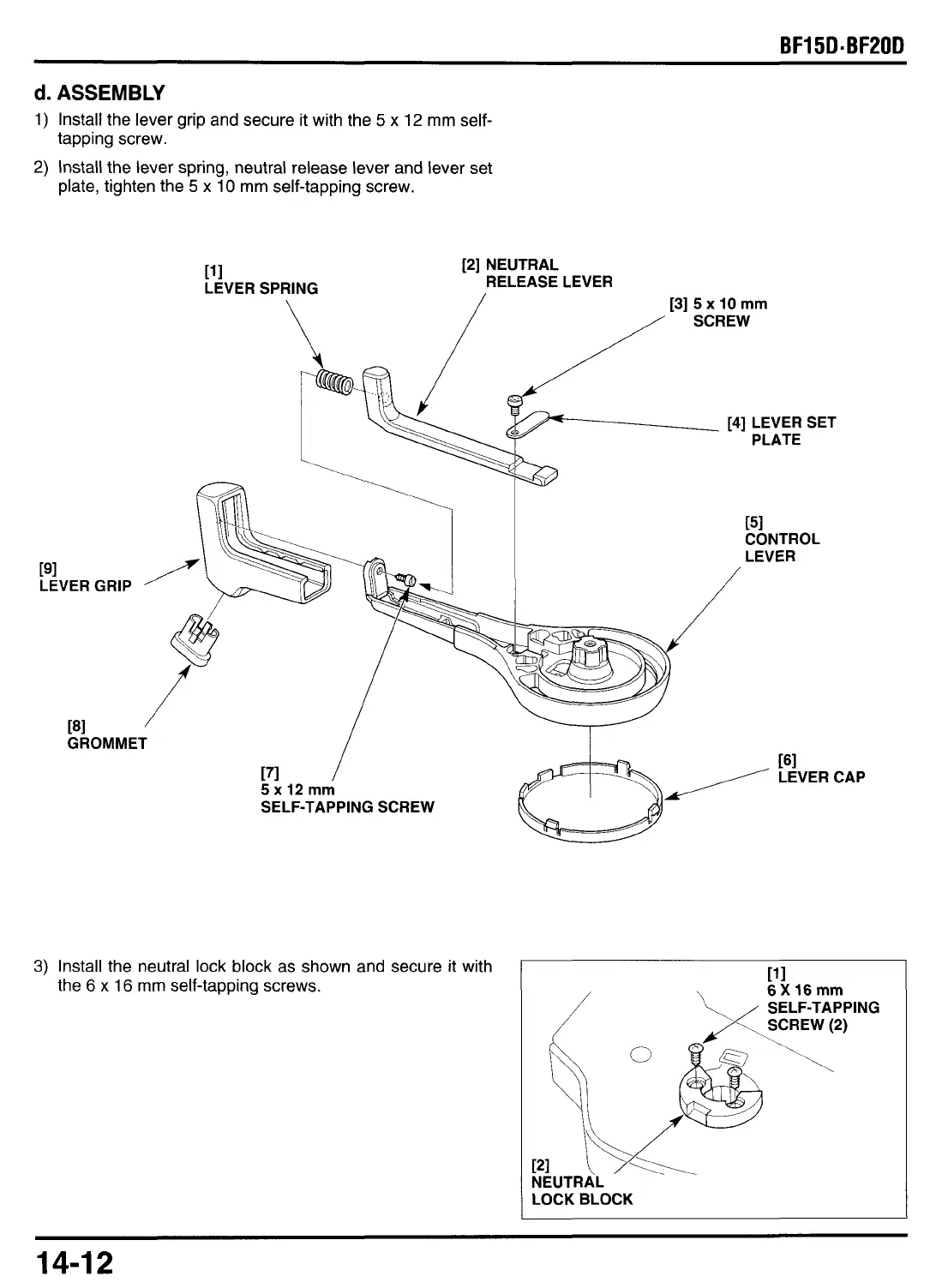

d. ASSEMBLY
1) Install the lever grip and secure it with the 5 x 12 mm self-
tapping screw.
2) Install the lever spring, neutral release lever and lever set
plate, tighten the
5 x 10 mm self-tapping screw.
11 1
LEVER SPRING
[2] NEUTRAL
RELEASE LEVER
[3] 5 x 10 rnrn
1 / SCREW
191
LEVER GRIP
/ I
GROMMET I I
[71 I
5xl2rnrn
SELF-TAPPING SCREW
3) Install the neutral lock block as shown and secure it with
the
6 x 16 mm self-tapping screws.
PING
PI
NEUTRAL
LOCK BLOCK
14-1 2
