BF15DoBF20D

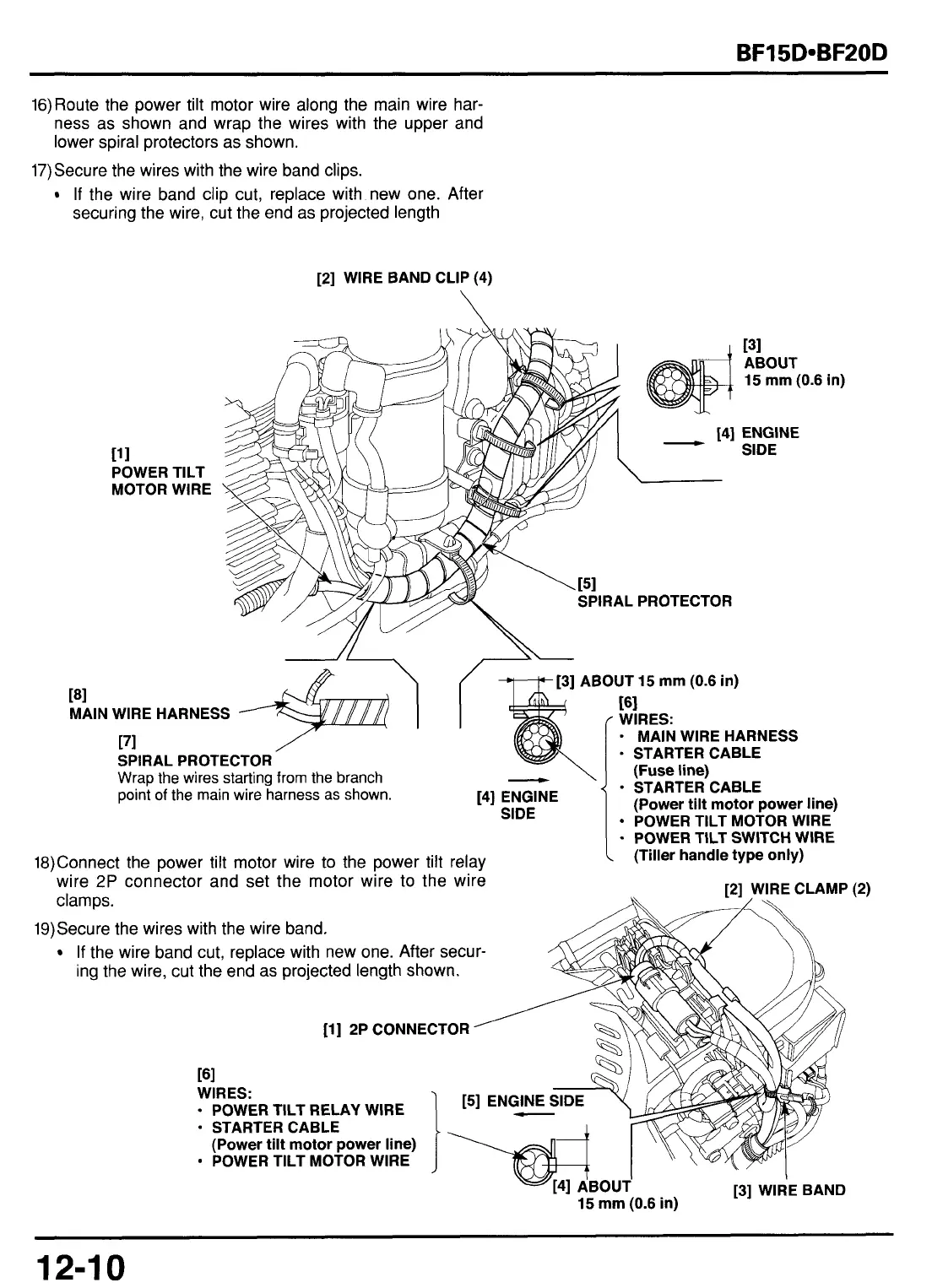

16)Route the power tilt motor wire along the main wire har-
ness as shown and wrap the wires with the upper and
lower spiral protectors as shown.
If the wire band clip cut, replace with new one. After
securing the wire, cut the end as projected length
17)Secure the wires with the wire band clips.
[2]
WIRE BAND CLIP
(4)
\
181
MAIN
11
1
POWER TILT
131
ABOUT
15
mm
(0.6
in)
141
ENGINE
SIDE
-
--
MOTOR
WIRE
SPIRAL PROTECTOR
ABOUT
15
mm
(0.6
in)
WIRE HARNESS
[71
SPIRAL PROTECTOR
Wrap the wires starting from the branch
point of the main wire harness as shown.
[4]
ENGINE
SIDE
[GI
'
WIRES:
-
MAIN WIRE HARNESS
*
STARTER CABLE
*
STARTER CABLE
POWER TILT MOTOR WIRE
(Fuse
line)
(Power
tilt
motor power line)
*
POWER TILT SWITCH WIRE
(Tiller handle type only)
18)Connect the power tilt motor wire to the power tilt relay
'wire
2P
connector and set the motor wire to the wire
clamps.
If
the wire band cut, replace with new one. After secur-
ing the wire, cut the end
as
projected length shown.
19)Secure the wires with the wire band.
[l]
2P CONNECTOR
[GI
WIRES:
-
POWER TILT RELAY WIRE
[3]
WIRE BAND
STARTER CABLE
(Power tilt motor power line)
POWER TILT MOTOR WIRE
15
mm
(0.6
in)
\\\
/
JlYC
[3]
WIRE BAND
r----$gq
I
(Power tilt motor power line)
POWER TILT MOTOR WIRE
[4]
ABOUT
15
mm
(0.6
in)
12-1
0
