BF15DoBFZOD

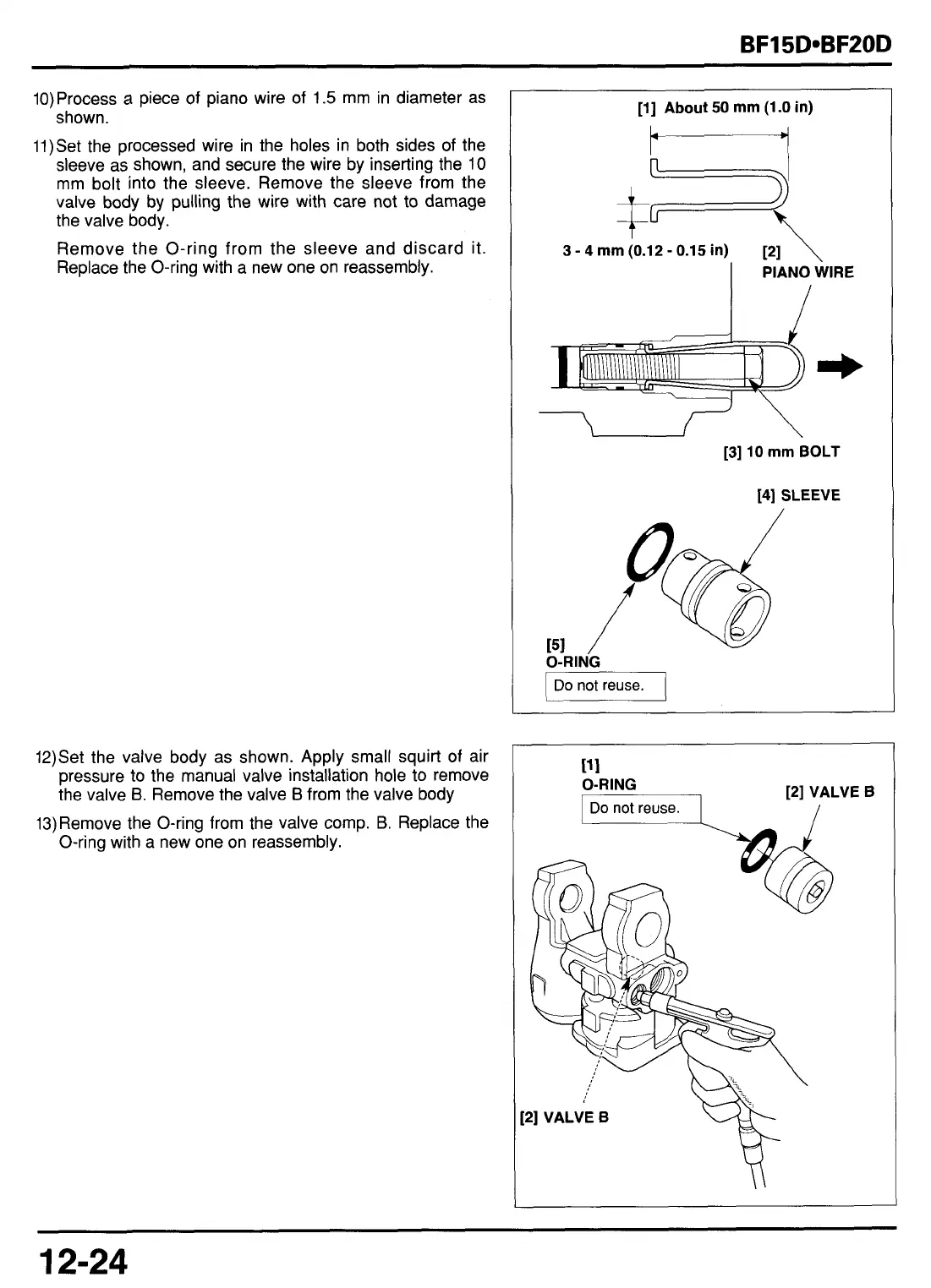

10)Process
a
piece
of
piano wire of 1.5 mm in diameter as
shown.
11)Set the processed wire in the holes in both sides of the
sleeve as shown, and secure the wire by inserting the 10
mrn bolt into the sleeve. Remove the sleeve from the
valve body by pulling the wire with care not to damage
the valve body.
Remove the O-ring from the sleeve and discard it.
Replace the O-ring with a new one on reassembly.
12)Set the valve body as shown. Apply small squirt
of
air
pressure to the manual valve installation hole to remove
the valve
B.
Remove the valve
B
from the valve body
13)Remove the O-ring from the valve cornp.
B.
Replace the
O-ring with a new one on reassembly.
[l]
About
50
mm
(1.0
in)
-
3
-
4 mm (0.12
-
0.15
in)
[2]
\
I
PIANO
WIRE
[3]
10
rnm BOLT
[4]
SLEEVE
1
DO
not
reuse.
1
t1
I
[2]
VALVE
B
O-RING
I
~onot
reuse.
1
12-24
