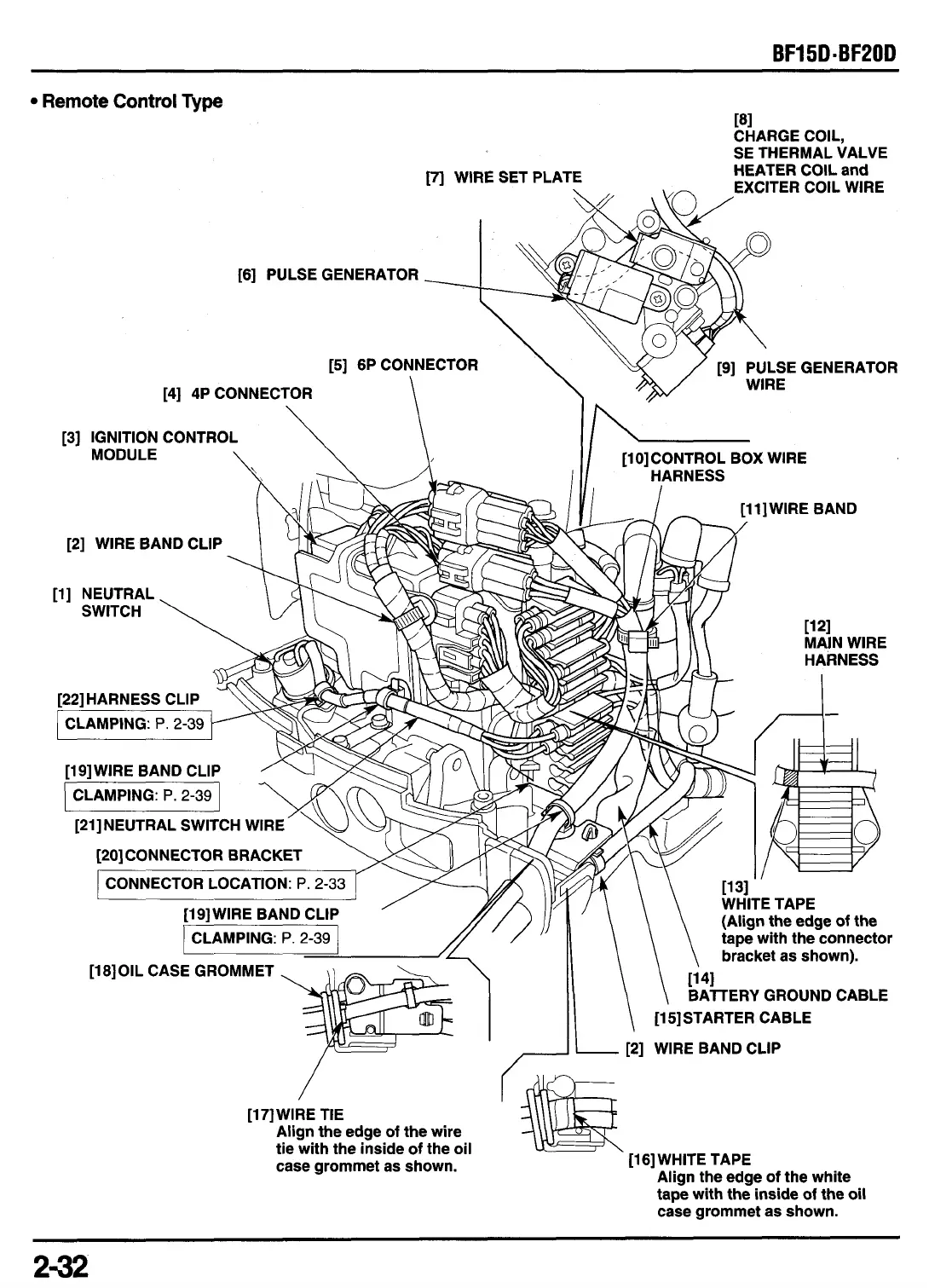

BF15DmBF20D
Remote Control Type
181
CHARGE COIL,
SE THERMAL VALVE
HEATER COIL and
EXCITER COIL WIRE
[7] WIRE SET PLATE
[6] PULSE GENERATOR
[3] IGNITION CONTRO
MODULE
[2] WIRE BAND CLIP
[21] NEUTRAL SWITCH WIRE
(Align the edge
of the
tape with the connector
bracket as shown).
BAlTERY GROUND CABLE
ISTARTER CABLE
] WIRE BAND CLIP
Align the edge
of the wire
tie with the inside
of the oil
case grommet as shown.
[16] WHITE TAPE
Align the edge
of the white
tape with the inside
of the oil
case grommet as shown.
2-32
