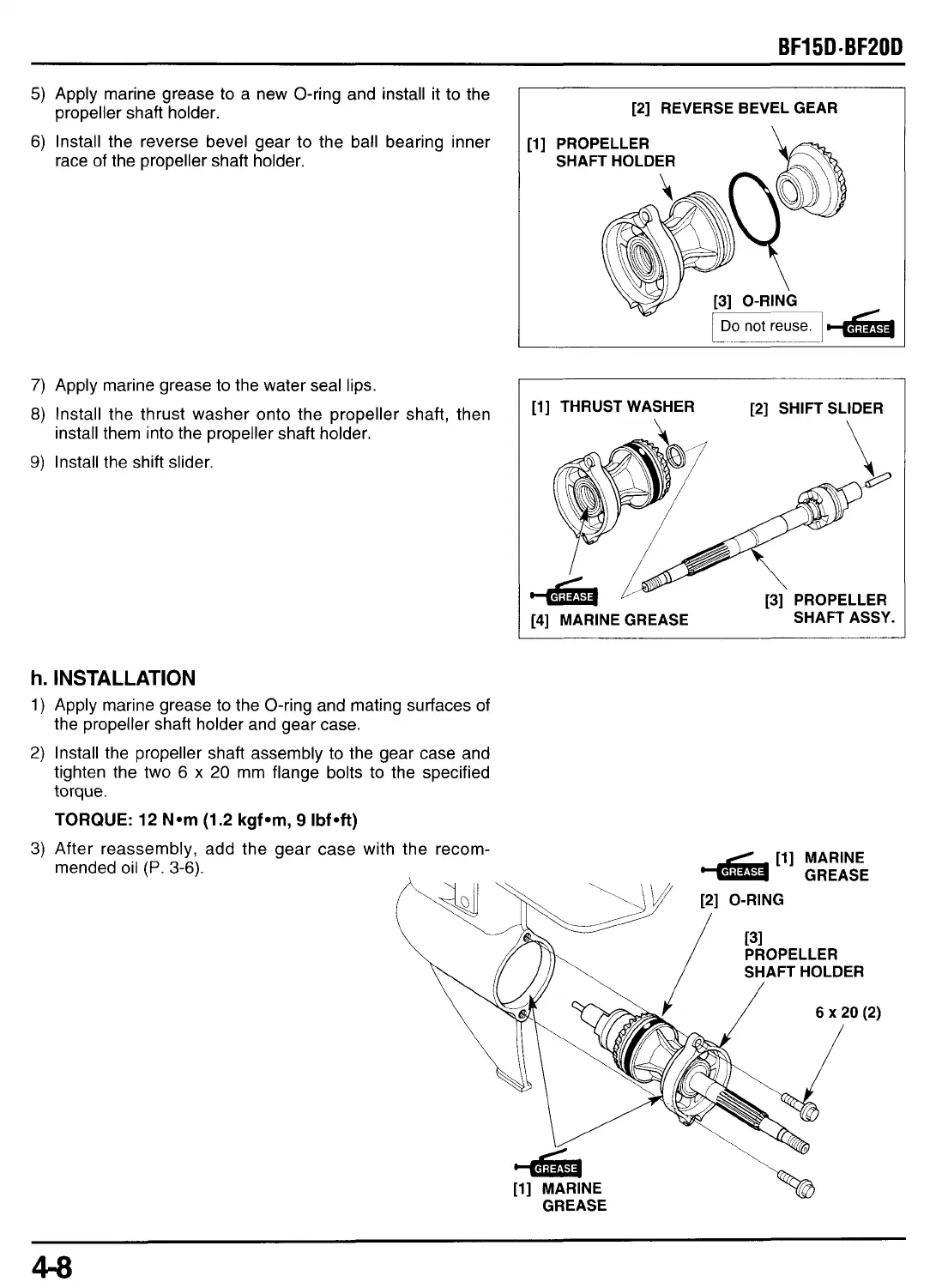

BF15D-BF20D
5)
Apply marine grease
to
a new O-ring and install it
to
the
6)
Install the reverse bevel gear
to
the ball bearing inner
propeller shaft holder.
race of the propeller shaft holder.
[2] REVERSE BEVEL GEAR
[i] PROPELLER
SHAFT HOLDER
7)
Apply marine grease
to
the water seal lips.
8)
Install the thrust washer onto the propeller shaft, then
install them into the propeller shaft holder.
9)
Install the shift slider.
[l] THRUST WASHER
[2] SHIFT SLIDER
PROPELLER
[4] MARINE GREASE SHAFT ASSY.
h.
INSTALLATION
1)
Apply marine grease
to
the O-ring and mating surfaces of
the propeller shaft holder and gear case.
2)
Install the propeller shaft assembly to the gear case and
tighten the two
6
x
20
mm flange bolts
to
the specified
torque.
TORQUE:
12
N*m
(1.2
kgf*m,
9
Ibf*ft)
3)
After reassembly, add the gear
mended oil
(P.
3-6).
case
