108
TAKING CARE OF UNEXPECTED PROBLEMS
FUSES
Electric Starter Will Not
Operate
The 10A, 15A, and 30A fuses protect
the electric starter relay and related
circuits.
The 10A (3) fuse protects the ignition
switch and related circuits. If this fuse
blows, the engine will not start or run,
and the power trim/tilt switch will not
activate the trim/tilt mechanism.
Battery Will Not Charge
A 30A (7) alternator fuse protects the
alternator circuit. If the alternator
fuse blows, the engine will not charge
the battery.
Fuse
No.
Rating Connected Components
1 30 A Gathered fuse (No. 2, 4, 5, 6 Fuses)
2 10 A Fuel pump (high pressure side)
3 10 A Power trim/tilt relay, Main relay, Warning buzzer,
Indicator, Starter solenoid switch, each meters
4 15 A Ignition coils
5 10 A Data link connector, HO2 sensor, Trim angle sensor
6 15 A PGM-FI ECM, Fuel injectors, CKP sensor 1, 2
7 30 A Alternator (regulator rectifier-battery charging)

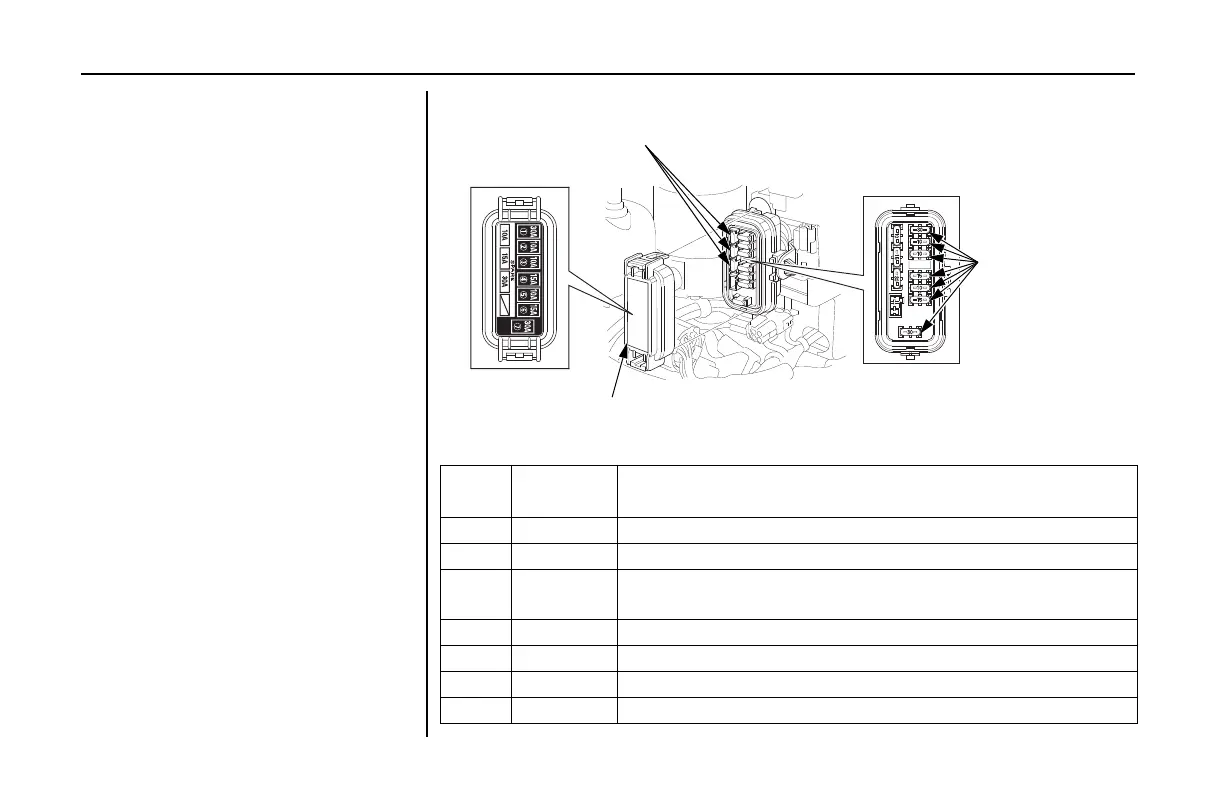

FUSE CASE LID
SPARE FUSES
(10 A, 15 A, 30 A)
FUSES
(10 A, 15 A, 30 A)
31ZZ46240.book Page 108 Tuesday, July 22, 2014 10:00 AM
