28
CONTROLS AND FEATURES
LHT, LRT and XRT Types
(power trim/tilt)
Power Trim/Tilt Switch
The power trim/tilt switch is located
on the control lever. It is a rocker
switch with UP and DN (down)
positions for changing the angle of
the outboard motor.
You can use the power trim/tilt switch
anytime whether the boat is
underway, stopped, or the ignition
switch is in the OFF position. It is
necessary for the ignition switch to be
in the ON position for the trim meter
to indicate the outboard motor angle.
Trim the outboard motor to obtain the
best performance and stability (p. 63).
Tilt the outboard motor for shallow
water operation, beaching, launching,
or mooring.
Power Tilt Switch (engine pan)
The power tilt switch is located on the
engine pan. It is a rocker switch with
UP and DN (down) positions for
changing the angle of the outboard
motor.
The power tilt switch will operate
without turning the ignition switch
ON.
This switch is used with the engine
stopped to raise the outboard motor
for mooring, trailering, or
maintenance.

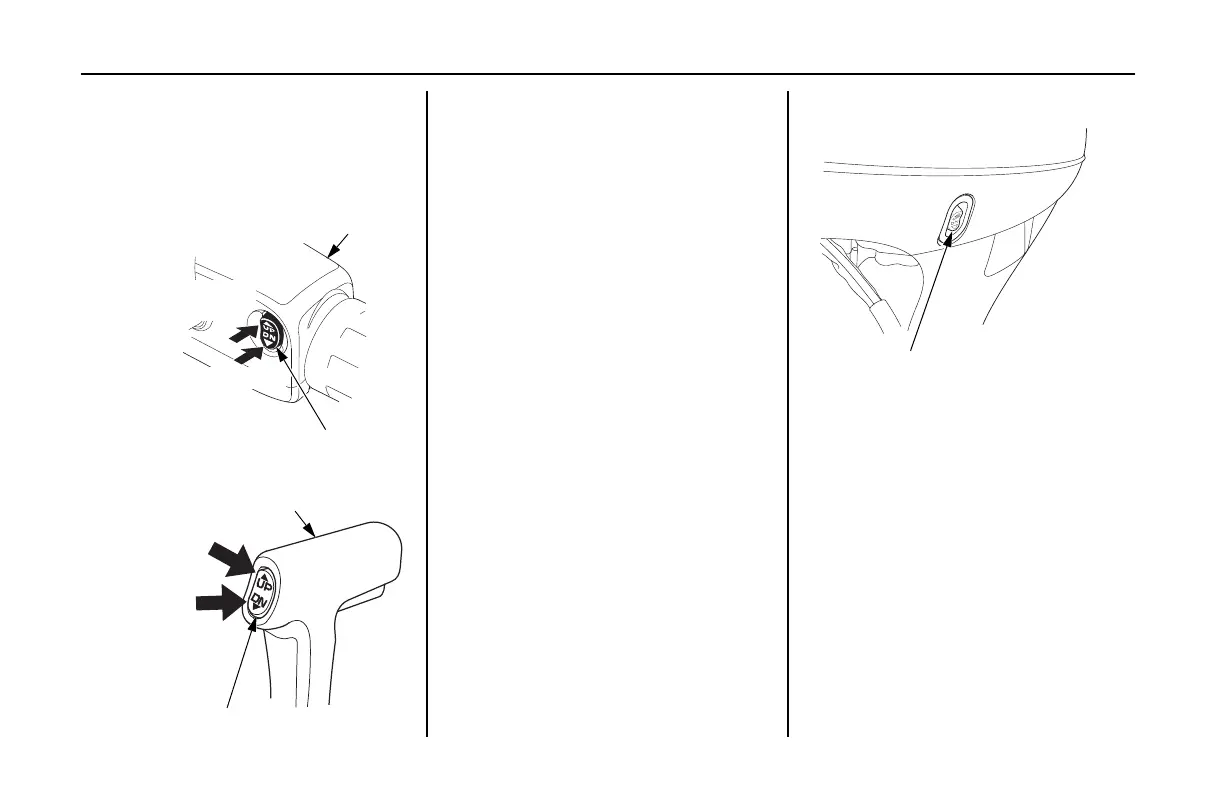

TILLER HANDLE
LHT Type
LRT and XRT Types
Press UP to trim or
tilt the outboard
motor up.
Press DN to trim or tilt the
outboard motor down.
POWER TRIM/TILT SWITCH
CONTROL LEVER
Press UP to trim or
tilt the outboard
motor up.
Press DN to trim
or tilt the outboard
motor down.
POWER TRIM/TILT SWITCH
