CONTROLS AND FEATURES
Manual Relief Valve
The outboard motor can be tilted
manually after opening the manual
relief valve. This allows the outboard
motor to be tilted up or down when
no battery is connected.
Check that nobody is under the
outboard motor before opening the
manual relief valve. If the manual
relief valve is loosened (turned
counterclockwise) when the outboard
motor is tilted up, the outboard motor
will suddenly tilt down.
Except LHA and LHTC types
TRL (Trolling) Control Switch
[optional equipment ]
The Trolling Control Switch is a
rocker switch with UP and DN
(down) positions to adjust the trolling
speed up or down in 50 RPM
increments within the range of 800 to
1,100 RPM.
If you press and hold the TRL control
switch while cruising with the throttle
closed, the mode changes to trolling
mode (p. 65)

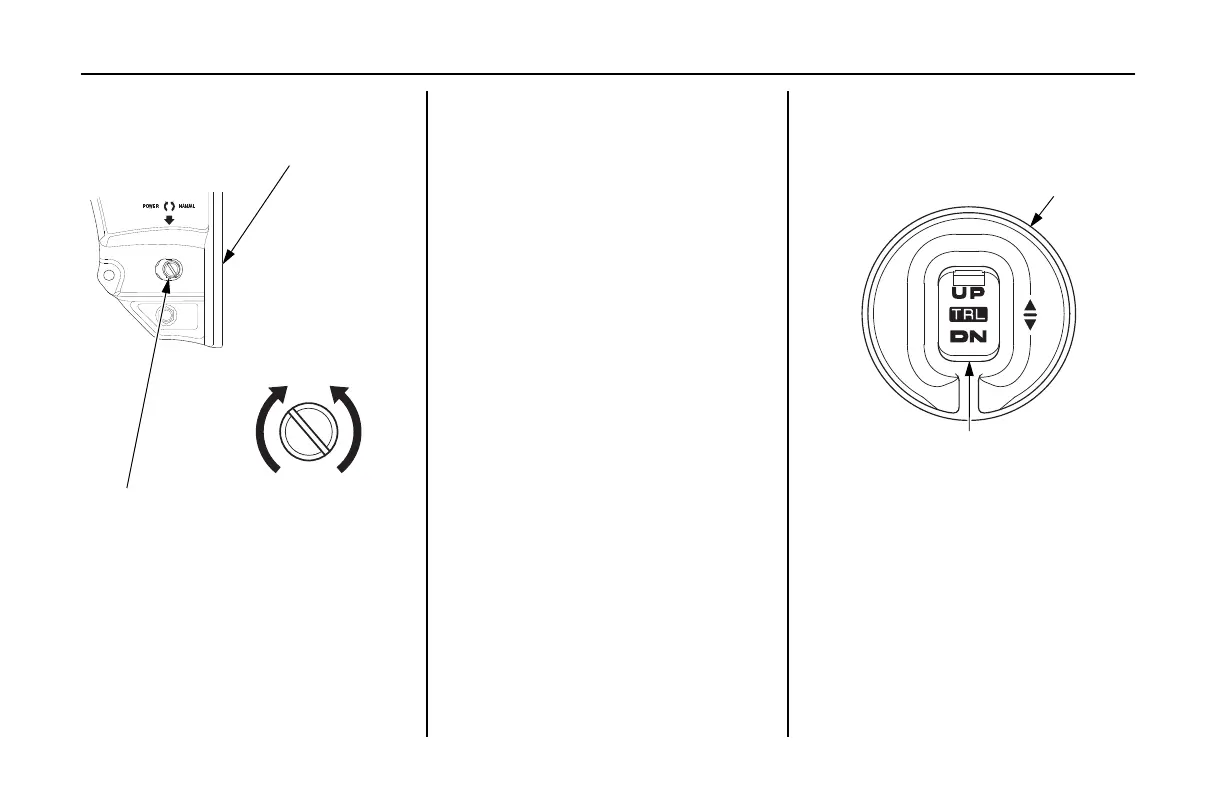

RIGHT STERN BRACKET
MANUAL RELIEF VALVE
POWER
(To fix)
MANUAL
(To release)
SWITCH PANEL
TROLLING CONTROL SWITCH
