BEFORE OPERATION
Tiller Handle Height/Angle
Adjustment (LH and LHT
types)

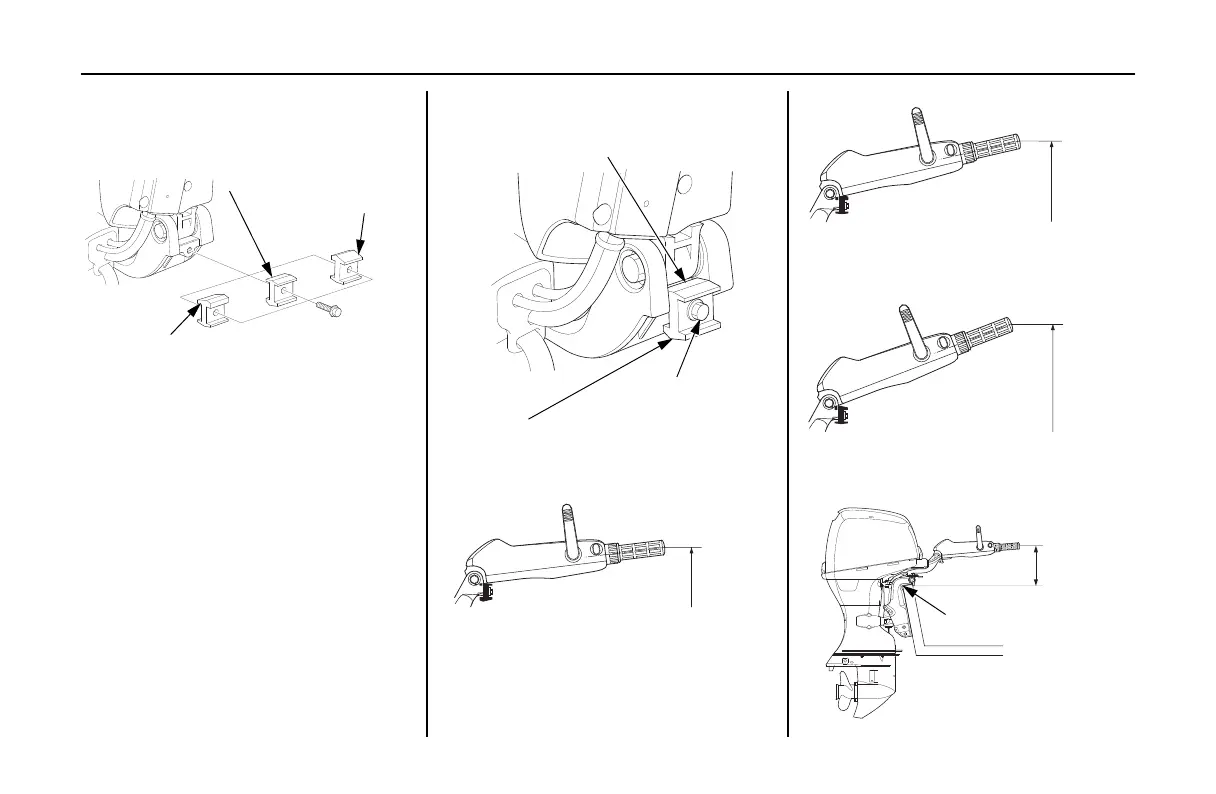

The tiller handle height and angle can
be adjusted to three positions by
changing the installation direction of
the height adjustment block. Select a
suitable height and angle for the
operator and secure the block.
1. Raise the tiller handle and remove
the 8 × 28 mm flange bolt and the
height adjustment block.
2. Pull down the tiller handle.
Determine the height adjustment
block installation direction and
secure the block with the 8 × 28
mm flange bolt.
HANDLE ANGLE: 7°
HANDLE ANGLE:
21°
HANDLE ANGLE: 13°
Install the height adjustment block
so that the selected angle of the
tiller handle is in this position.
HEIGHT ADJUSTMENT
BLOCK
8 × 28 mm
FLANGE BOLT
10.8 in
(275 mm)
HANDLE ANGLE: 7°
HANDLE ANGLE: 13°
HANDLE ANGLE: 21°
13.2 in
(336 mm)
15.7 in
(399 mm)
HEIGHT
Reference point
