CONTROLS AND FEATURES
INDICATORS
The indicator lights come on and the
buzzer sounds when you turn the
ignition switch ON, allowing you to
see that they are working. If an
indicator does not light during this
test, it cannot alert you if that system
develops a problem. Have your
Honda Marine dealer check for
burned-out bulbs or other problems.
Under normal conditions, the
following occur when the ignition
switch is turned ON:
1. The ACG, Malfunction, Oil
Pressure, and Overheat indicators
light.
2. The buzzer will beep twice.
3. The Malfunction, Oil Pressure, and
Overheat indicators will go out
after the second beep.
4. The ACG indicator will go out
after the engine starts.
5. The Oil Pressure indicator will
light again after the engine starts
and will stay lit to indicate the oil
pressure is normal.
Alternator (ACG) Indicator
The ACG indicator turns on and the
buzzer sounds in one-second intervals
when the charging system is faulty.
Malfunction Indicator

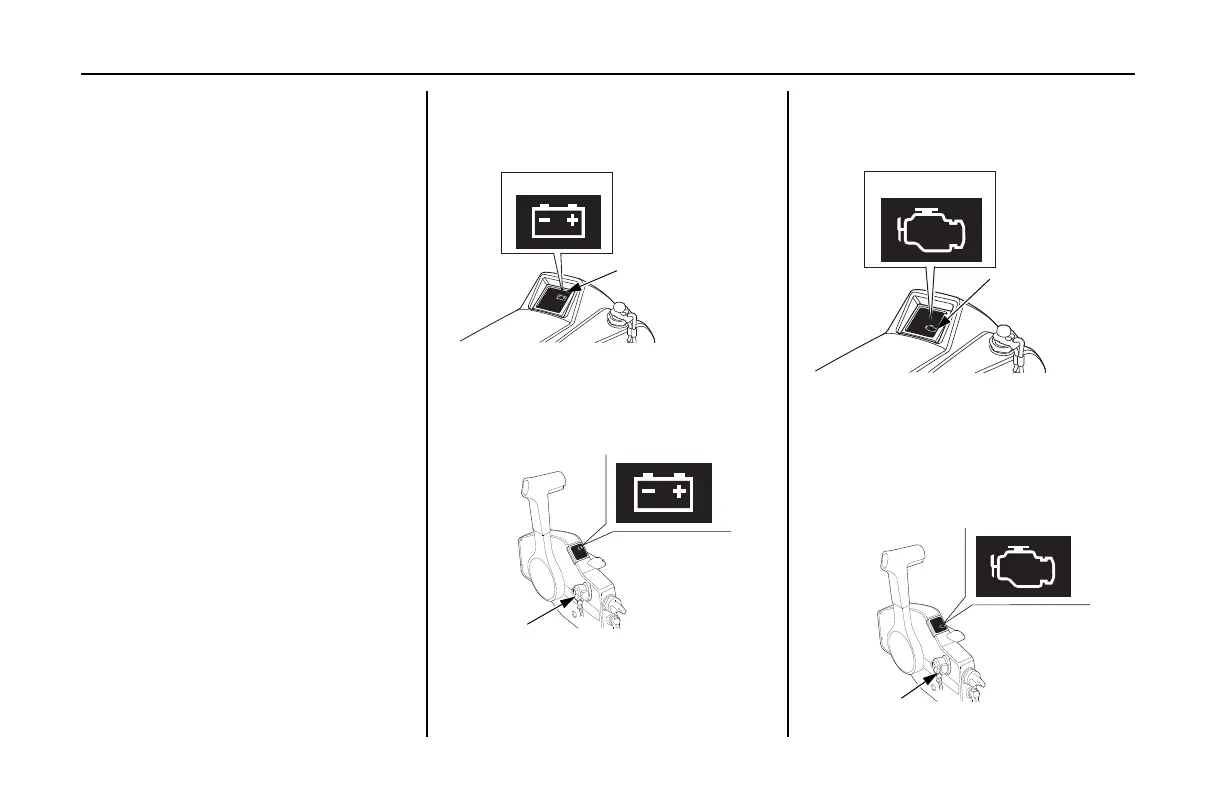

ACG INDICATOR
LH and LHT Types
(RED)
(internal buzzer)
LRT and XRT Types
(side-mount control)
ACG INDICATOR
(RED)
BUZZER
MALFUNCTION
INDICATOR
LH and LHT Types
(RED)
LRT and XRT Types
(internal buzzer)
(side-mount control)
MALFUNCTION
INDICATOR
(RED)
BUZZER
