45
OPERATION

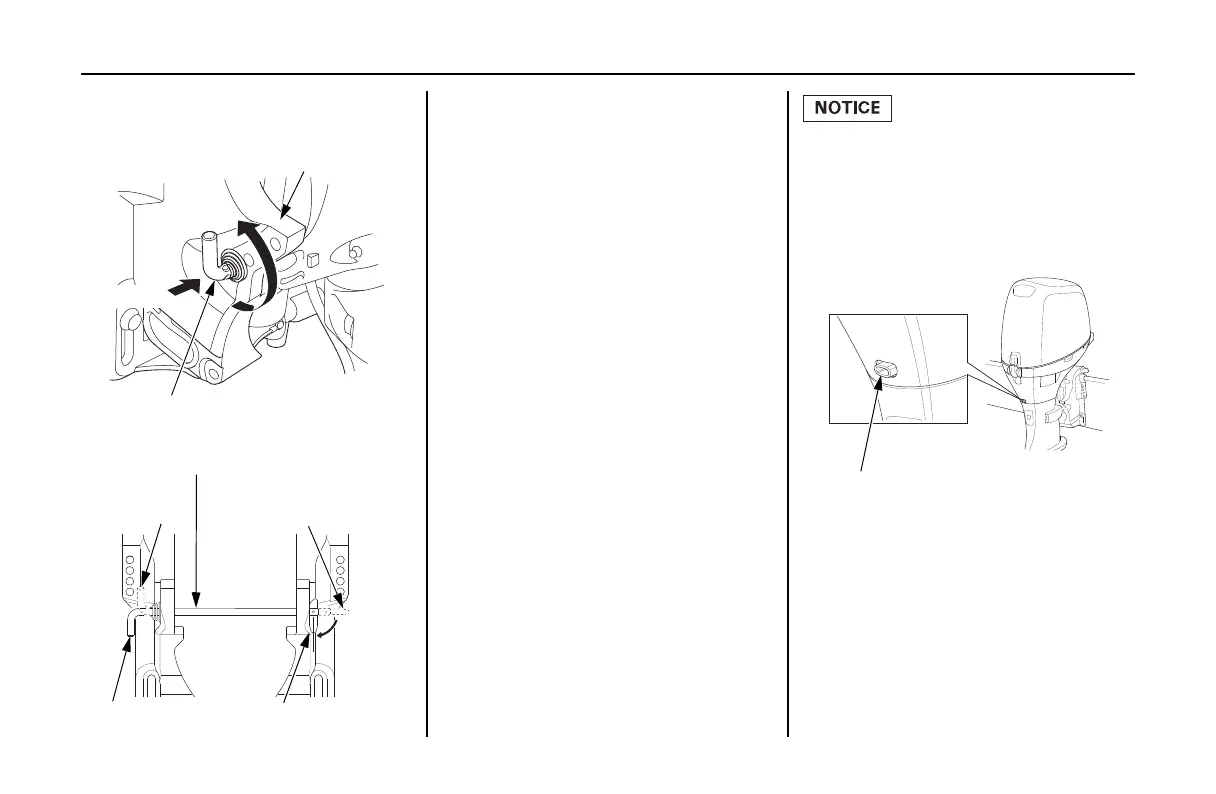

TRANSOM ANGLE
ADJUSTMENT (LH Type)
The transom angle adjusting rod
limits the tilt angle of the outboard
motor when fully lowered.
Proper adjustment prevents the
outboard motor from being trimmed
too low (p. 63).
To adjust, first tilt the outboard motor
so it is not resting on the rod.
Push the rod in and turn the end of the
rod up, so the latch will fall into line
with the rod.
Remove the rod and reinsert it in the
desired position.
Push the rod in and turn the end of the
rod down, so the latch will fall to the
locked position. Then release the rod.
Do not allow water to enter the idle
exhaust port or the engine can be
damaged.
STERN BRACKET
TRANSOM ANGLE ADJUSTING ROD
TRANSOM ANGLE ADJUSTING ROD
TURN UP
PUSH
TO CHANGE
UNLOCKED
POSITION
TO LOCK LOCKED POSITION
31ZZ46240.book Page 45 Tuesday, July 22, 2014 10:00 AM
