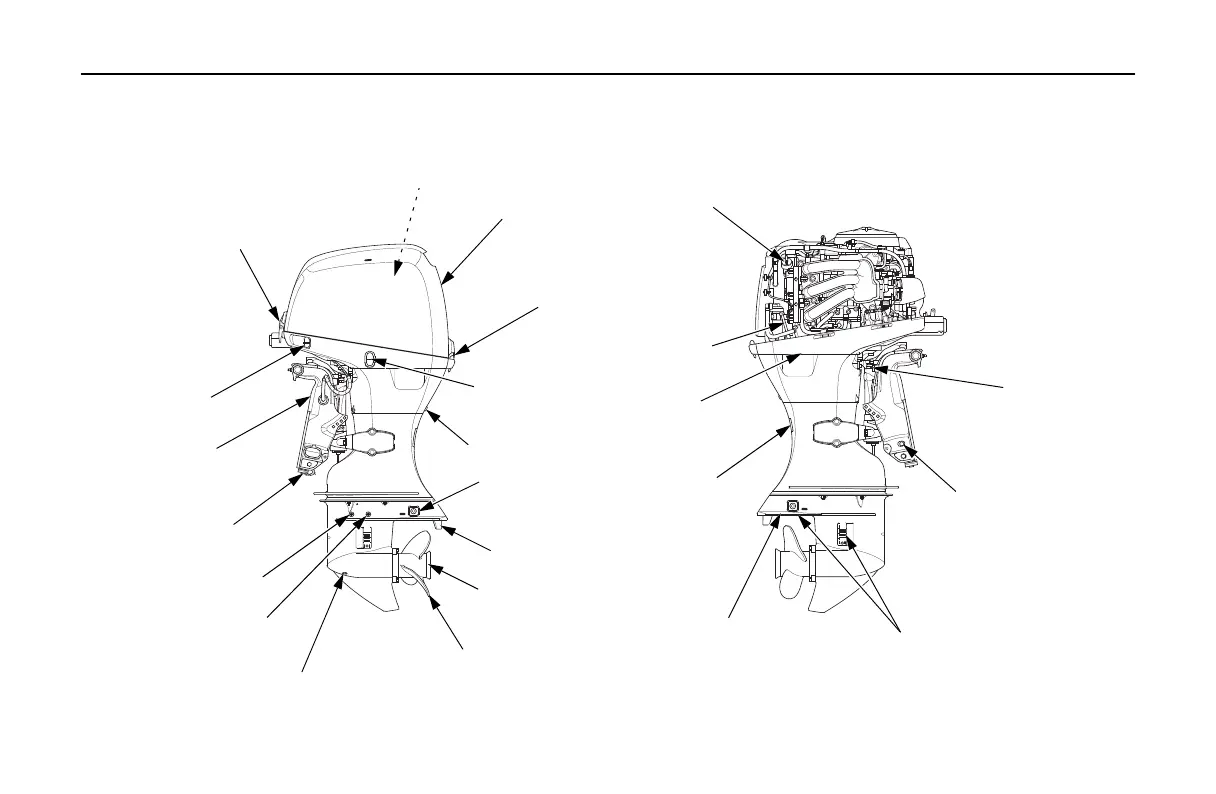

CONTROLS AND FEATURES
LRT and XRT Types (remote control)
ENGINE COVER
LATCH (front)
FUEL LINE
CONNECTOR
STERN BRACKET
ANODE METAL
GEAR OIL CHECK
SCREW
WASH SCREW
GEAR OIL DRAIN/FILL
SCREW
PROPELLER
[standard equipment (Canadian types)]
[optional equipment (American types)]
EXHAUST PORT/
WATER OUTLET
PORT
TRIM TAB
ANODE
METAL
(each side)
IDLE PORT
POWER
TILT
SWITCH
ENGINE COVER
LATCH (rear)
ENGINE COVER
SPARK PLUG
(inside the cover)
ENGINE OIL
FILLER CAP
TILT LOCK
LEVER
MANUAL RELIEF
VA LV E
COOLING WATER
INTAKE PORT
ANTIVENTILATION
PLATE
ENGINE OIL
DRAIN BOLT
COVER
COOLING
SYSTEM
INDICATOR
OIL LEVEL
DIPSTICK
