SERVICING YOUR OUTBOARD MOTOR
6. Unscrew the strainer cup from the
filter body.
7. Thoroughly clean the strainer cup
and fuel filter.
If the fuel filter is contaminated,
replace it with a new one.
8. Install the fuel filter, float, O-rings
and strainer cup. Use new O-rings.
TIGHTENING TORQUE:
2.2 lbf∙ft (3 N∙m, 0.3 kgf∙m)
9. Install the suspension strap to the
fuel filter assembly as shown
above.
10. Reinstall the fuel filter assembly
and suspension strap in the
reverse order of removal.

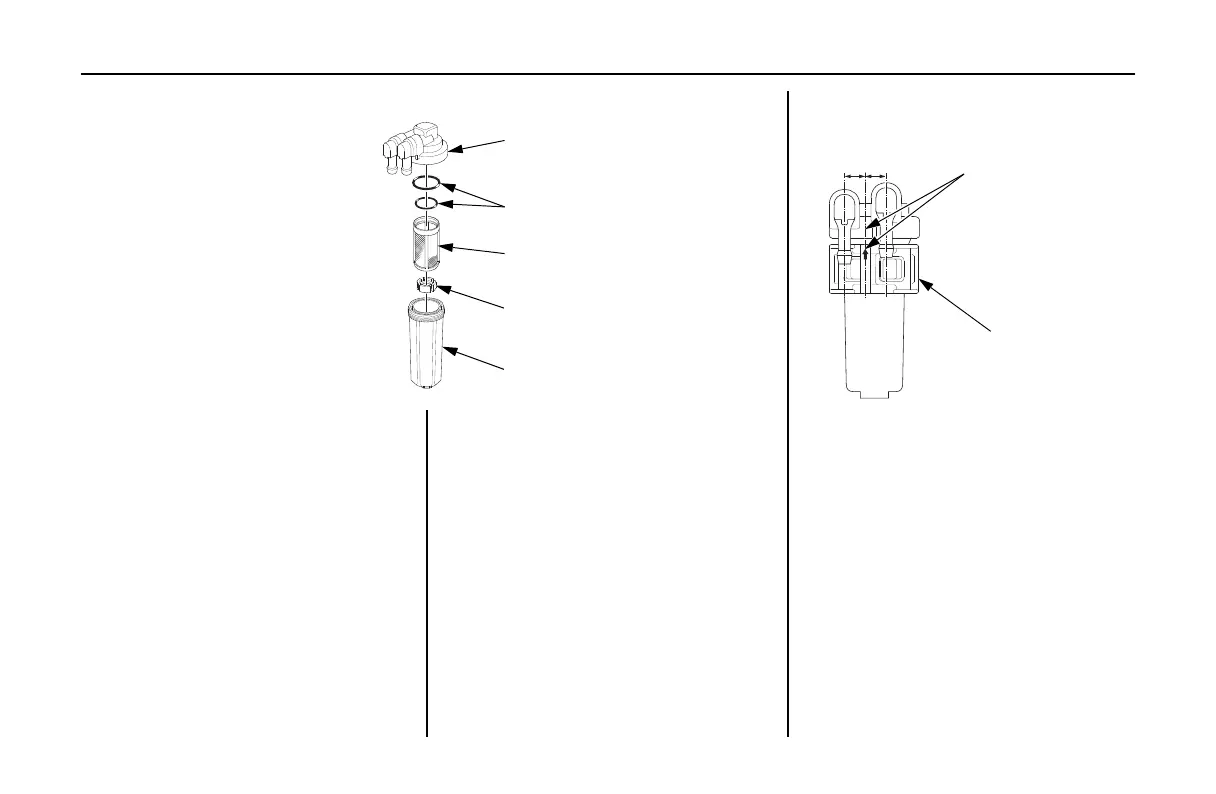

SUSPENSION
STRAP
Align the center of the filter
body and the arrow of the
suspension strap rib.
FILTER BODY
O-RINGS (Replace)
FUEL FILTER
FLOAT
(red ring)
STRAINER CUP
