Honda E - Page 606

605
uuChecking and Maintaining Wiper BladesuChanging the Front Wiper Blade Rubber
Continued
Maintenance

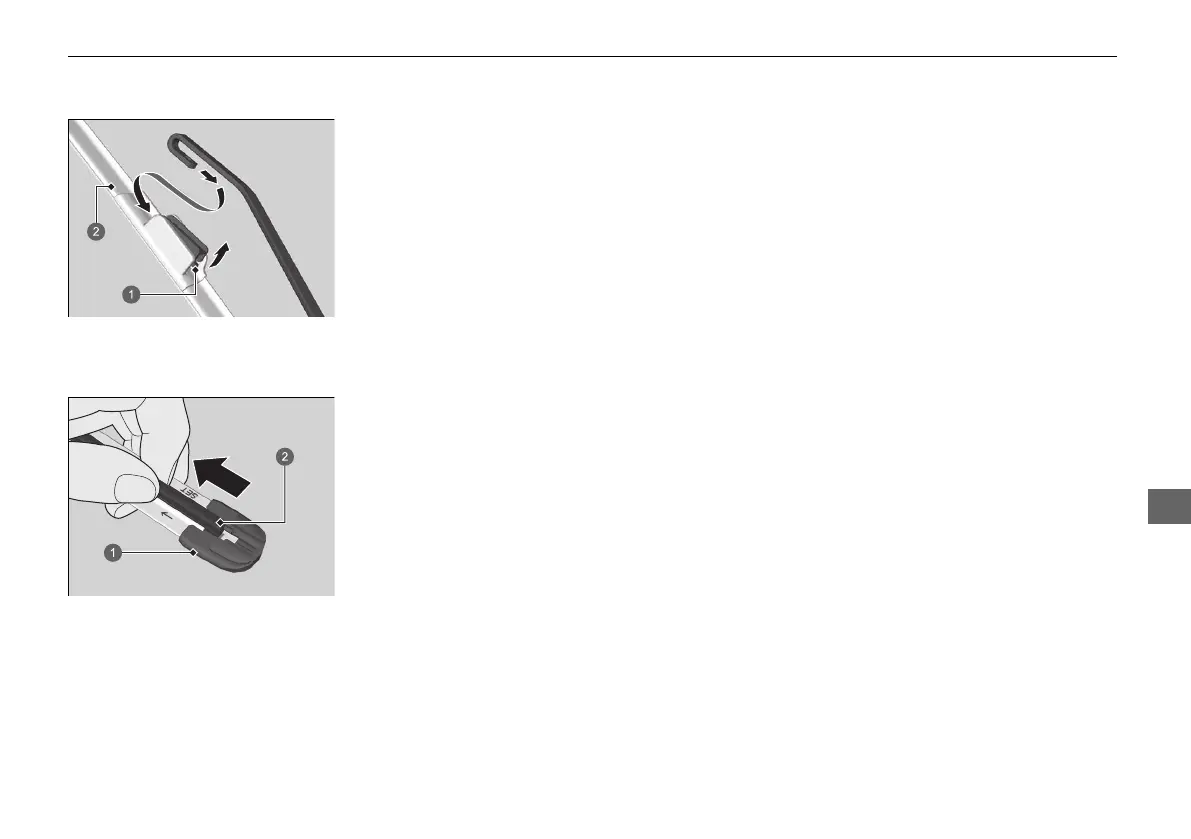

4. Press up on and hold the tab, then slide
the holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
a Tab
b Holder
a End Cap at the bottom
b Blade
