Installation

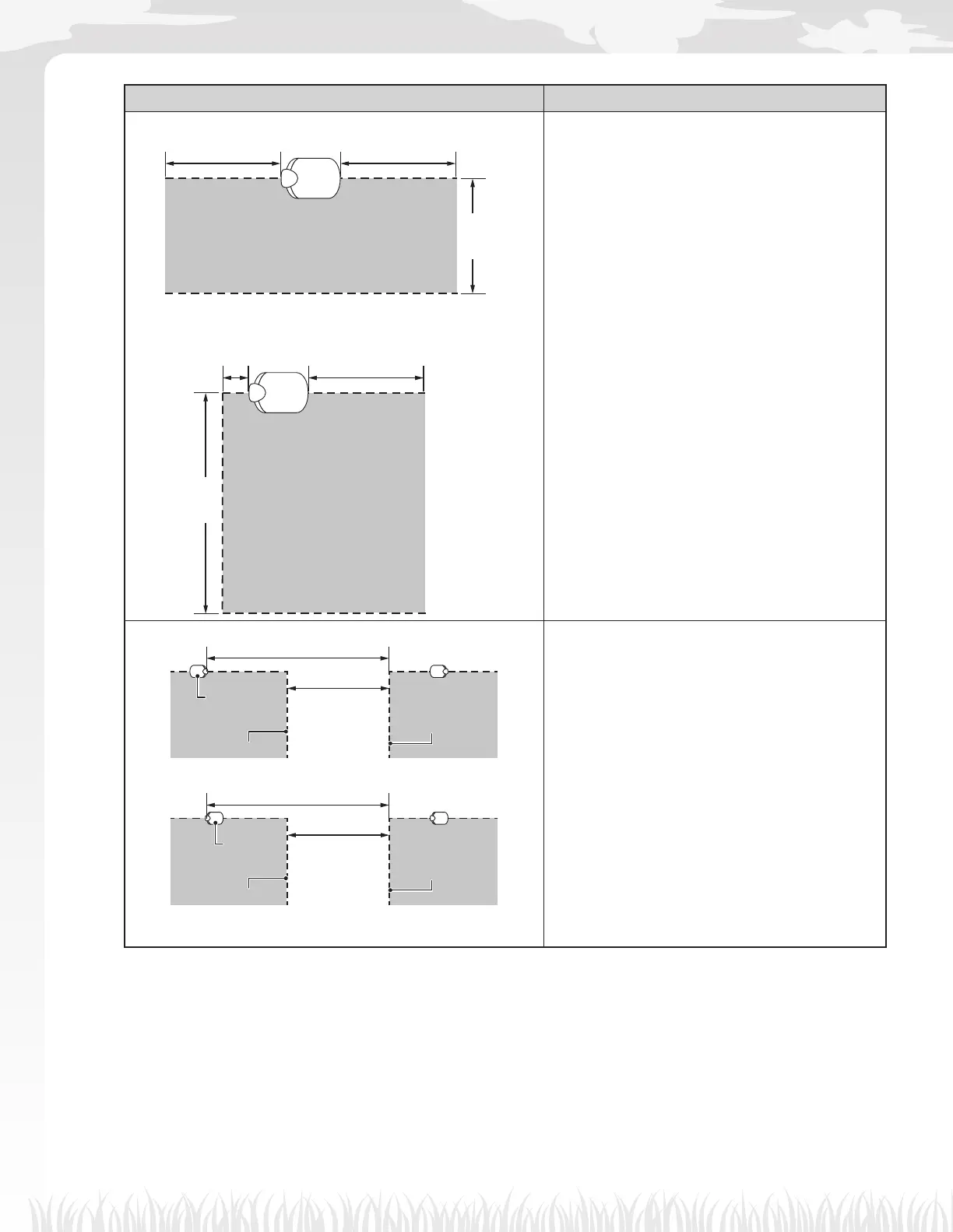

Image Condition
More than 39.4 in
(100 cm)
More than 39.4 in
(100 cm)
More than
39.4 in
(100 cm)
When installing the docking station at a corner
0-7.9 in
(0-20 cm)
More than 39.4 in
(100 cm)
More than
78.7 in
(200 cm)
• If you want to install the docking station in a
narrow passage, lay boundary wire according to
the fi gure on the left.
• Turn off the shortcut wire setting.
• Set the passage width setting anywhere from 0 to
5 levels.
NOTE:
- Narrow passage installation refers to the
installation of the docking station in a narrow
passage with a width of 3.3 to 10 feet (1 to
3 meters).
More than
3.3 ft (1m)
More than 9.8 ft (3 m)
Docking
station
Boundary wire
Boundary wire
of the another
robotic lawn
mower
Docking
station
Boundary wire
Boundary wire
of the another
robotic lawn
mower
More than
3.3 ft (1m)
More than 9.8 ft (3 m)
If you want to use an additional robotic lawn mower,
the boundary wire must be laid according to the
fi gure on the left.
To Next Page
