ELECTRICAL EQUIPMENT
~HONDA
~ NUSO·NUSOM

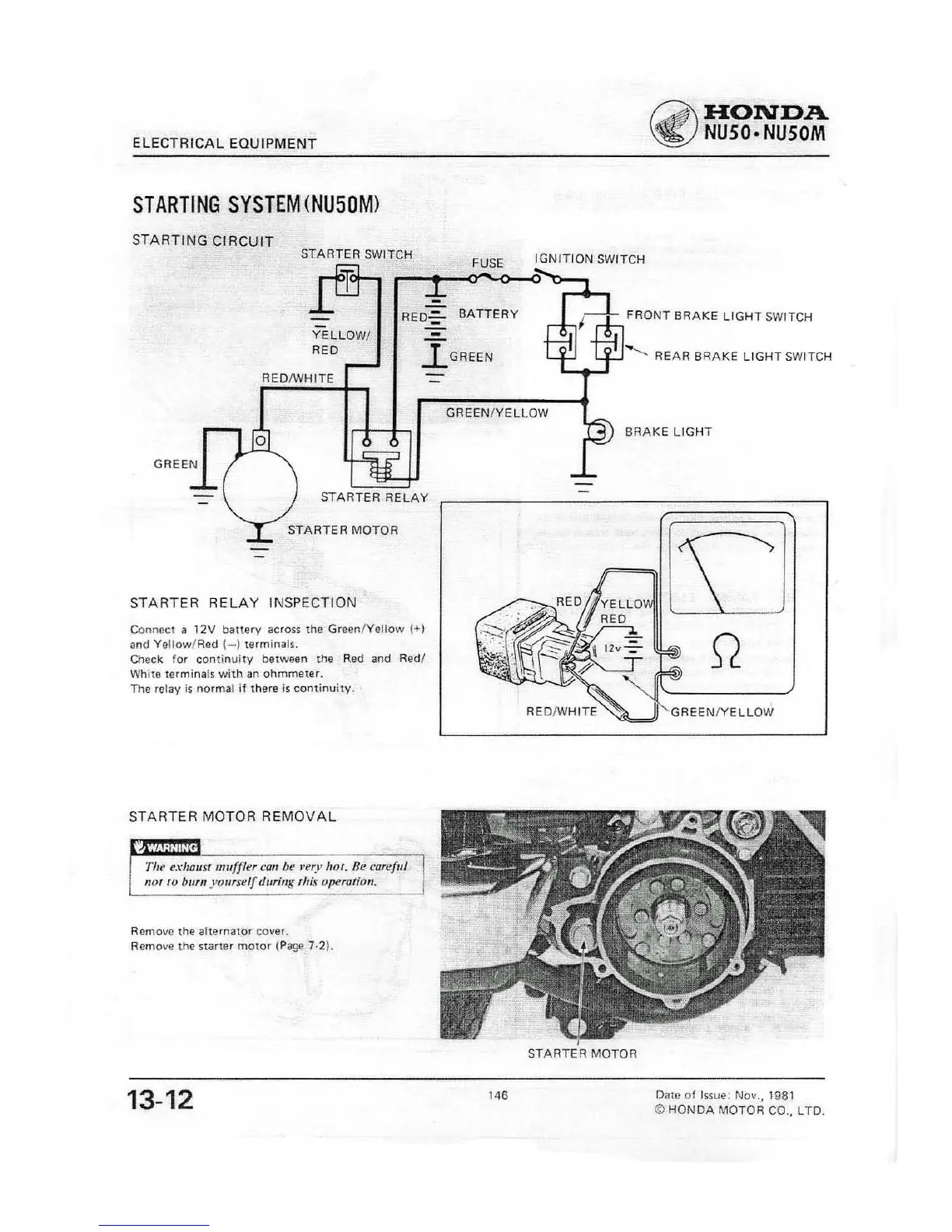

STARTING SYSTEM (NU50M)
FRONT BRAKE LIGHT SWITCH
............ REAR BRAKE LIGHT SWITCH
BRAKE LIGHT
IGNITION SWITCH
FUSE
RED: BATTERY
lGREEN
YELLOW/
RED
STARTER SWITCH
AEDflNHlTE
GREEN
GREEN/YELLOW
STARTING CIRCUIT
STARTER RELAY
STARTER MOTOR
STARTER RELAY INSPECTION
ConnecT iI 12V battery across the Green/Ycllow l+}
and Yellow/Red (-) terminals.
Check
for continuity between the Red and Red!
White terminals
with an ohmmeter.
The relay is normal if there is continuity,
GAEENIYELLOW
STARTER MOTOR REMOVAL
TlU' (!xhallsr IlIl1fj1er call be I'CIT 11m, He carefltl
I/ot fU bllm yourself d"ring ",,\ operatio",
Remove the alternator covel.
Remove
the starter motor (Page 7·2).
STARTER MOTOA
13-12
146 Date of Issue: Nov., 1981
© HONDA MOTOR CO., lTD.
