DRIVE PULLEY/KICK STARTER/CLUTCH/DRIVEN PULLEY
r:::if\ HONDA
~ NU50· NU50M

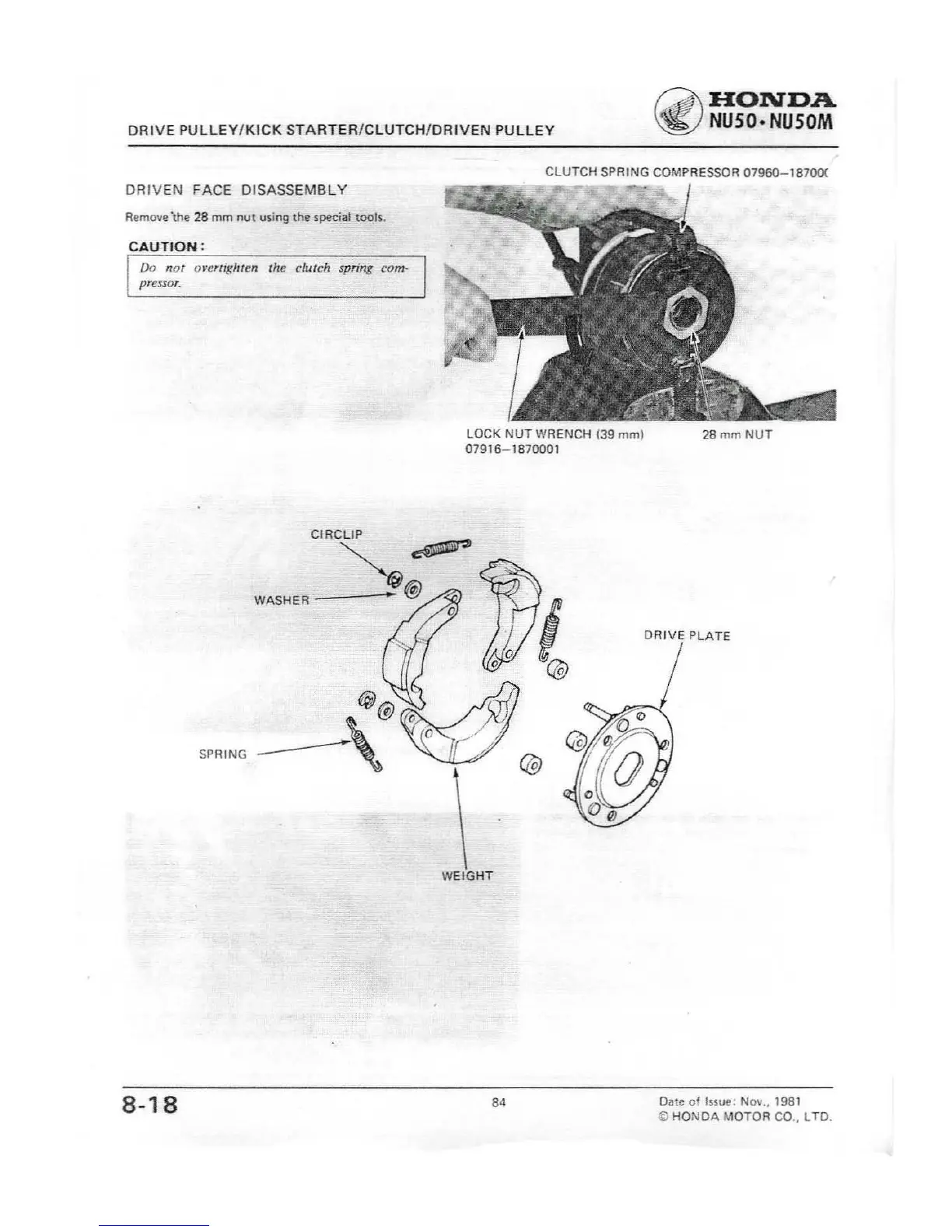

DRIVEN FACE DISASSEMBLY
Remove "the 28 mm nut using the special tools.
CAUTION:
{)o not owmigJlttm (he chach spring com-
prenor.
CLUTCH SPRING COMPRESSOR 07960-187OCK
/.
8-18
SPRING
WASHER
LOCK NUT WRENCH (39 mml
07916-1870001
CIRCLlP
~~~
WEIGHT
84
28mm NUT
Date of Issue: Nov" 1981
© HONDA MOTOR CO., LTD.
