Honda NU50 - Kick Starter Disassembly; Kick Starter Inspection

DRIVE PULLEY/KICKS STARTER/CLUTCH/DRIVEN PULLEY
~HONDA
~ NU50·NU50M

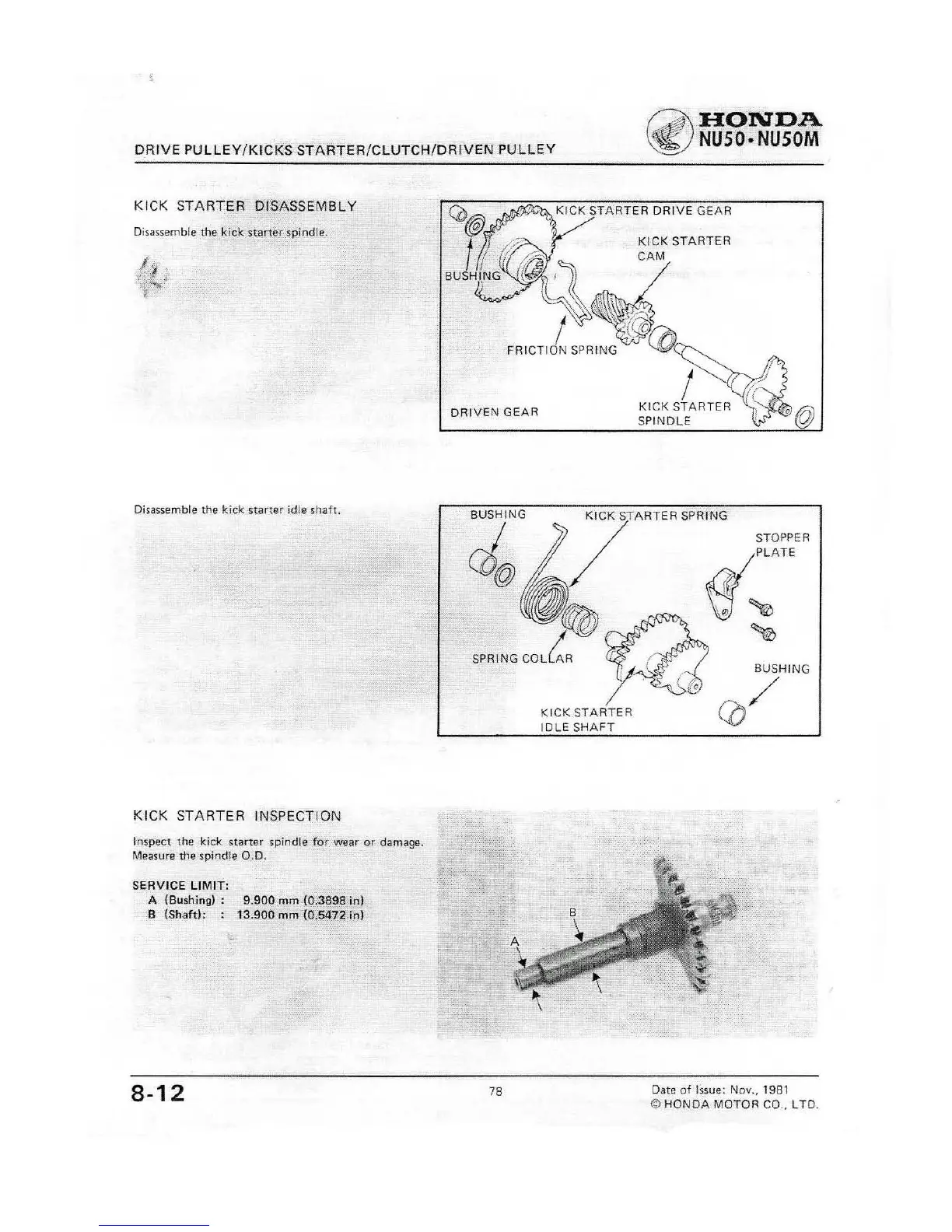

KiCK STARTER DISASSEMBLY
Disassemble the kick starter spindle.
Q) ~- KICK STARTER DRIVE GEAR
(@,ti?//KICKSTARTER
I ( /.~ CAM
BUSHING' ~~ /
! ~r?>
FRICTION SPRING < ~
DRIVEN GEAR
!
KICK STARTER
SPINDLE
Disassemble the kick starter idle shaft.
KICK STARTER INSPECTION
Inspect the kick starter spindle for wear or damage.
Measure the spindle 0.0.
SERVICE LIMIT:
A (Bushing): 9.900 mm (0.3898 in)
B (ShaftJ:13.900 mm (0.5472 inl
BU.S /HING /KICK STARTER SPRING STOPPER
CO@ ~PLATE
~~ tJ~
""""""ct. ~ 7"'""
KICK STARTER CO
IDLE SHAFT
8-12
78
