FINAL
REDUCTION
FINAL
REDUCTION

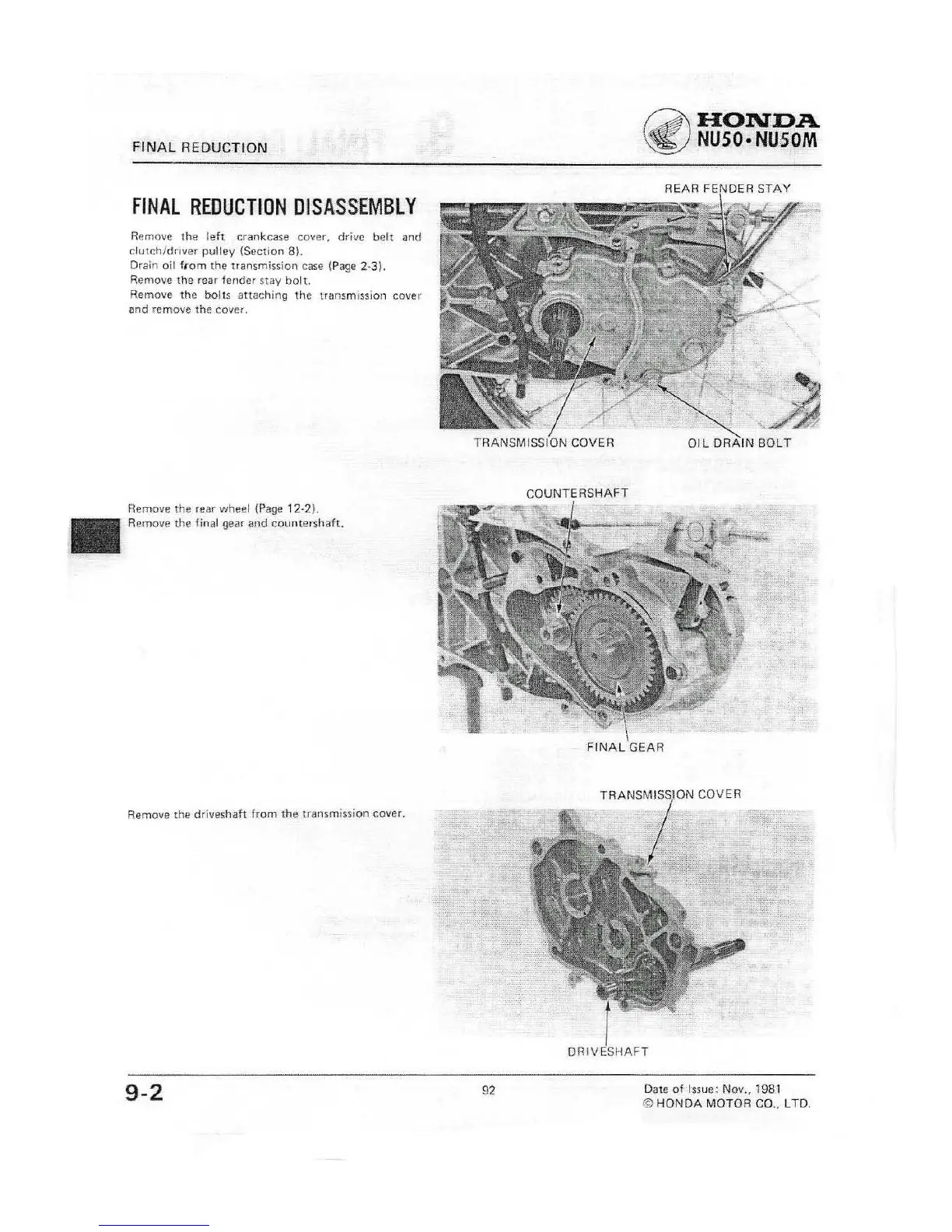

DISASSEMBLY
Remove the left crankcase cover, drive
belt
ilnd
clutch/driver
pulley
(Section
B).
Drain oil
from
the
transmission case (Page 2·3).
P.emove
Ihe
fCilf fender stilY
bolt.
Remove
the
boilS attaching
the
transmission cover
and
remove
the
cover.
TRANSMISSION
COVER
~HONDA
~
NUSO·NUSOM
•
Remove
the
fcaf wheel (Page 12·2).
Remove the final gear and coul1tershaft.
Remove
the
driveshaft from
the
transmission cover.
FINAL
GEAR
TRANS7'ON
COVER
9-2
92
Dale
of
Issue: Nov" 1981
©
HONDA
MOTOA
CO
..
LTD.
